Why isn’t there a Polar Optical HR Sensor? After all Polar have been the gold standard in sport HR monitors for a long time.
Why has it taken Garmin so long to pair up with MIO Global to include MIO’s optical HR technology in the new Garmin 225?
The answer is that these companies want to deliver products that are accurate for most or all people. The problem is that it is hard to do that.
Yet Garmin, Apple, Microsoft and many others HAVE taken the optical HR plunge – mostly as the market is demanding it and there is money to be made.
Edit: Polar announcement in August 2015.
We have heard about tattoos causing problems for the Apple Watch. Similarly darker skinned people can also experience problems as can people with a higher fat:muscle ratio. Sweat can cause problems and, indeed, how and where the device is worn can cause problems.

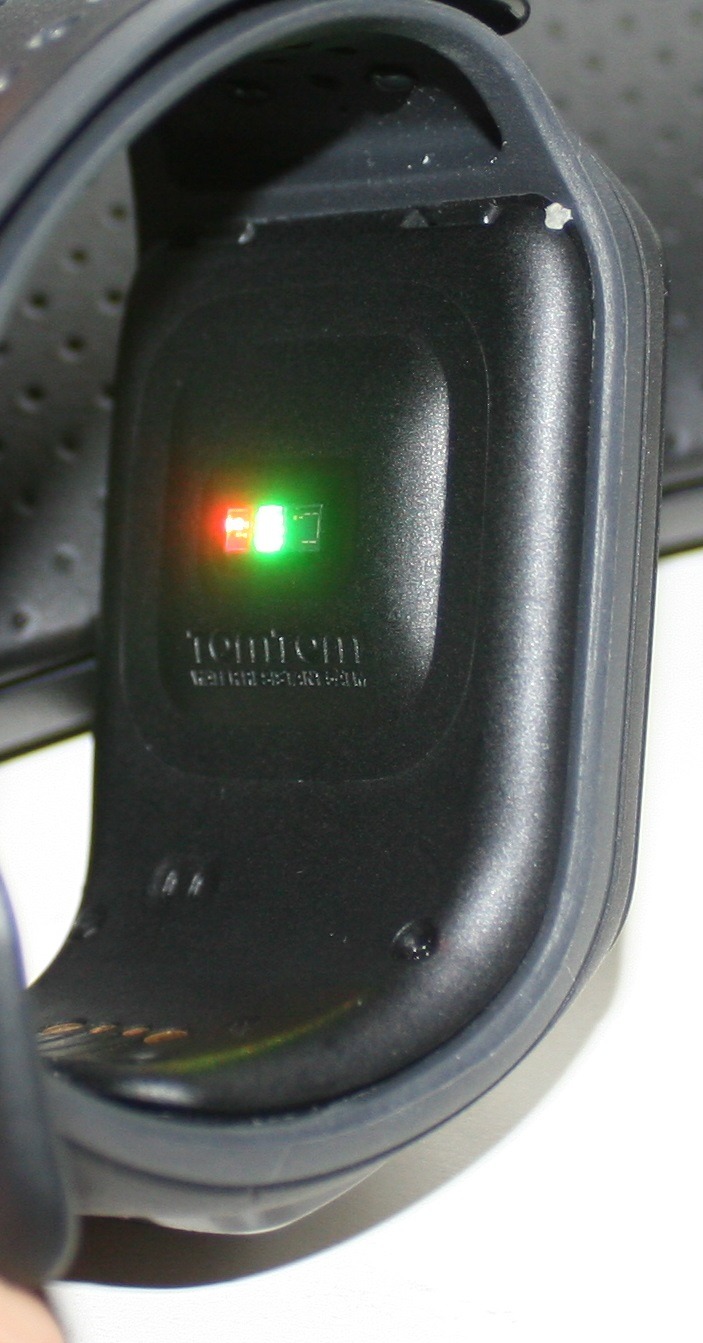

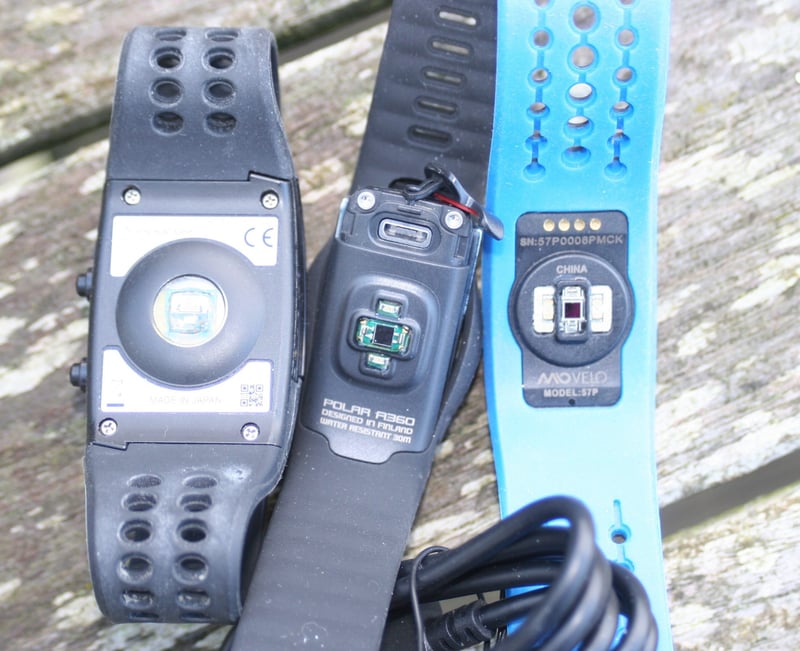

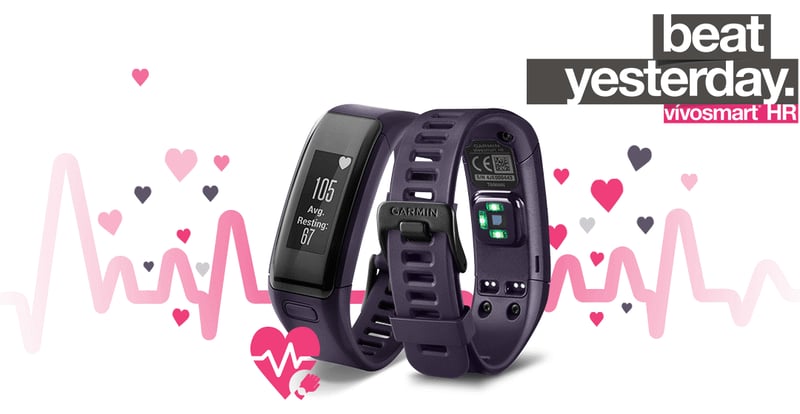

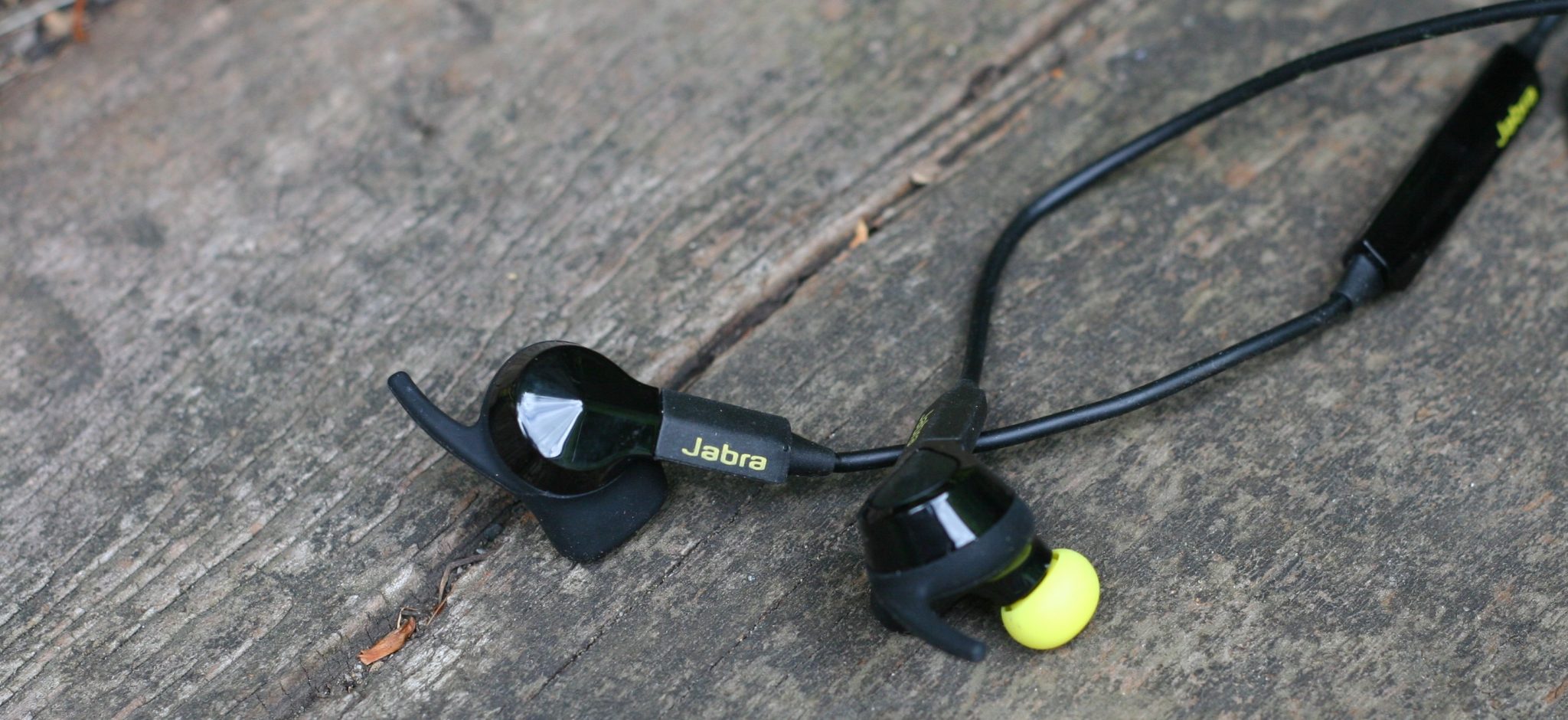

Optical HR is more accurate in the ear (JABRA and others) where there are less ‘motion artefacts’ caused by bones, arterioles and other ‘structures’.
However the ear is not ALWAYS a practical location for a sensor for every sports person and movement of the sensor is possible. Further worsened by the fact that the ‘best’ wavelength of light to use is coloured green…and no-one likes green-glowing ears!
Another good place is the arm (SCOSCHE) but as we know from the Polar RCX3’s GPS armband from a few years ago; that’s not too practical a location either.
So we come to the wrist. There are LOTS of motion artefacts going on there; lots of movement to eliminate lots of veins and arteries and bones and fat (or not); as well as differing physical morphologies. BUT it’s a practical place AND we already wear devices there (watches!).
The location is obvious; the solution is not – otherwise it would have already been perfected.
A further problem with the wrist location is that if we wear our optical device TOO TIGHTLY then blood is pushed away; too loose, and there could be water ingress or light loss or too much physical sensor movement relative to the wrist location. This is not the same for chest straps where a tighter strap will still work.

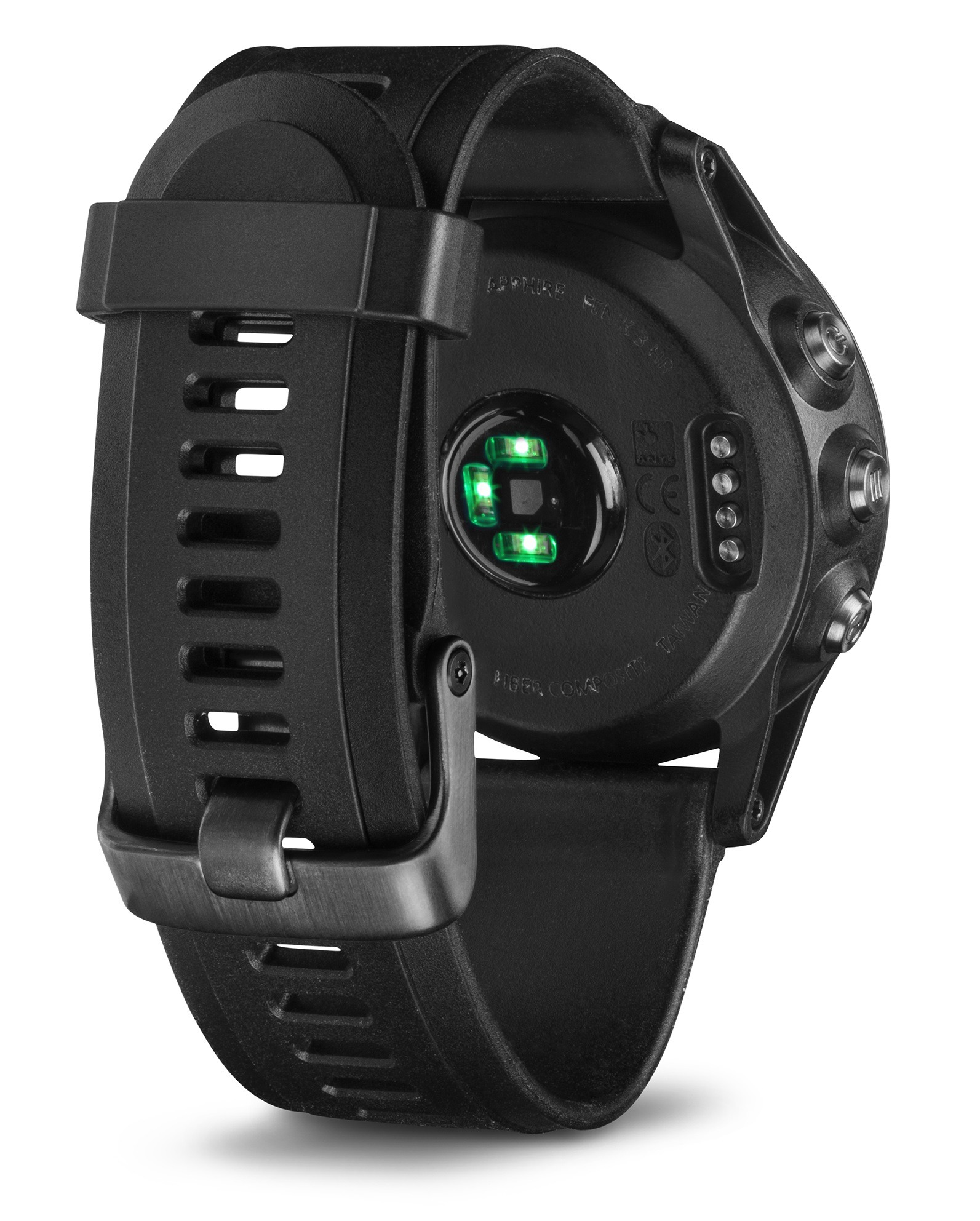

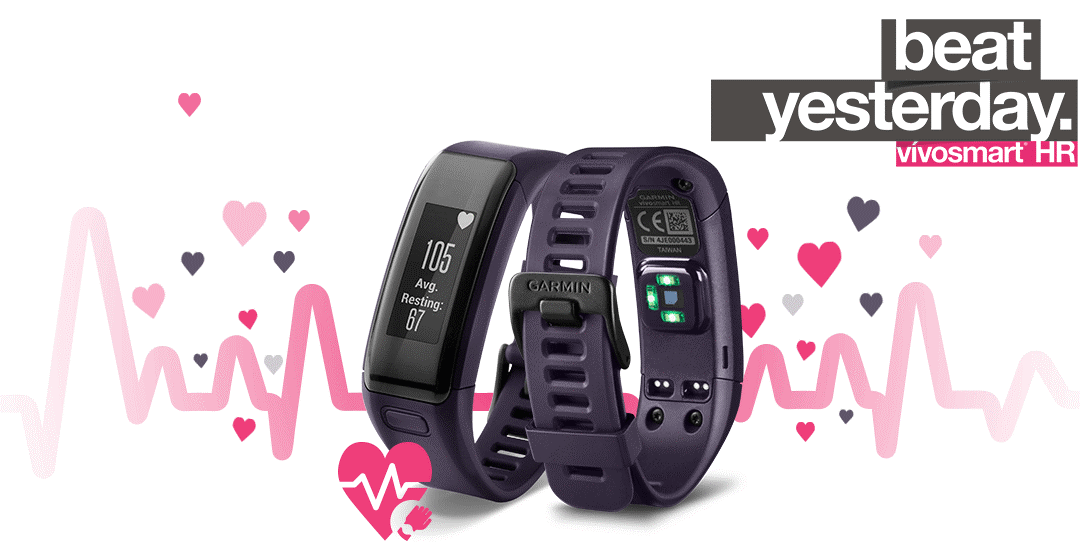

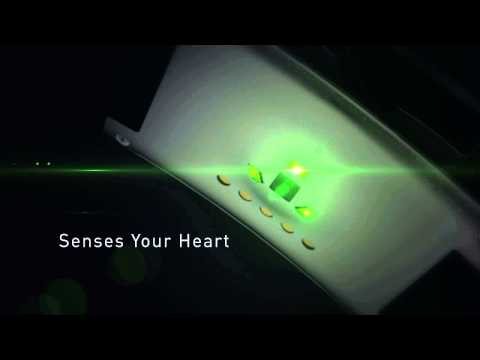

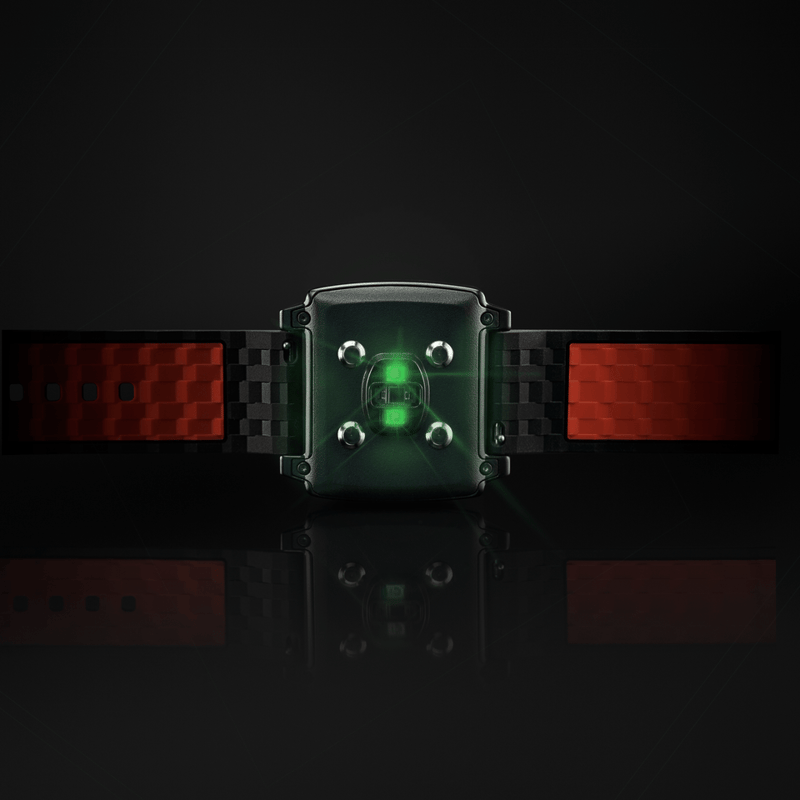

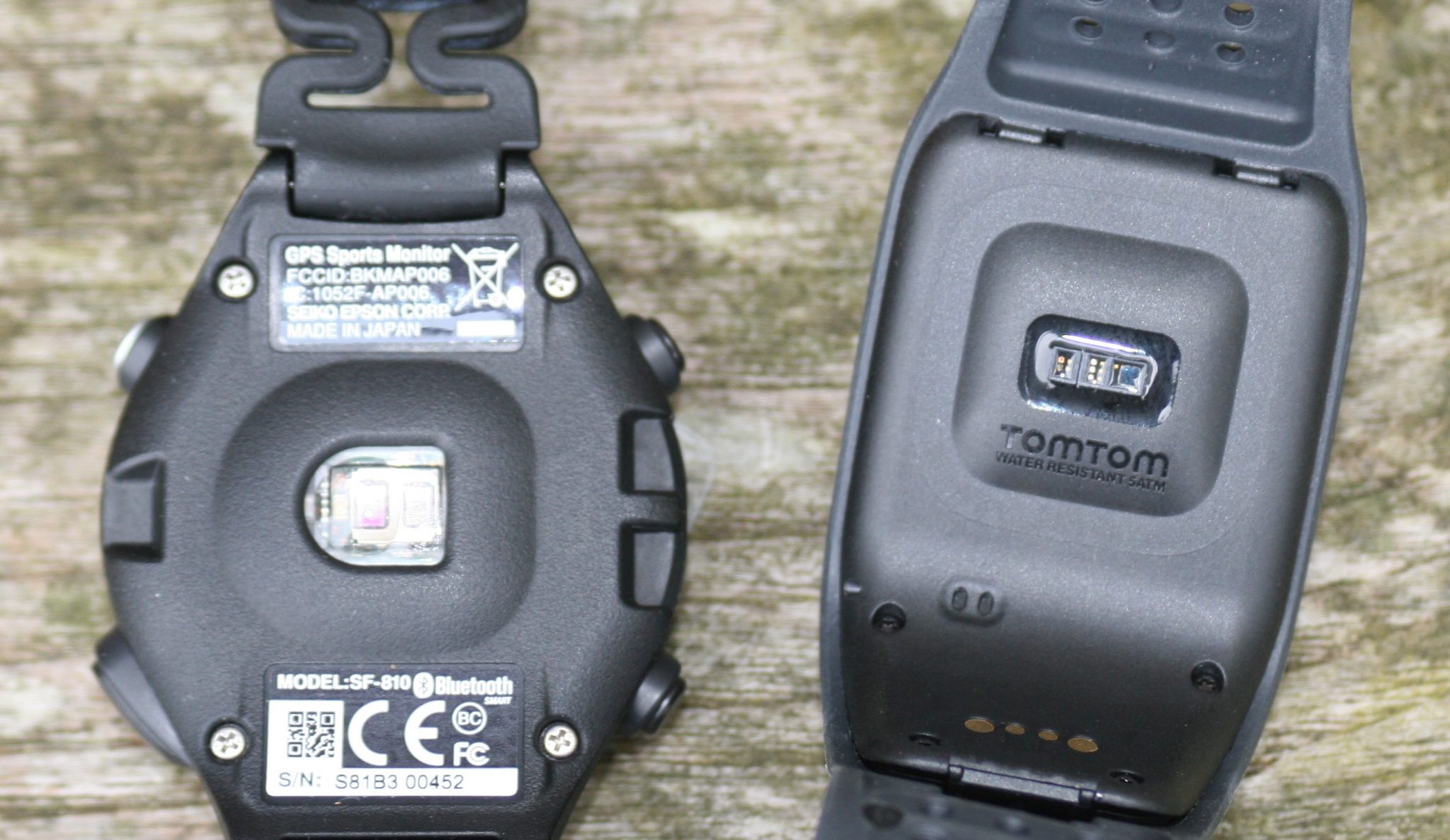

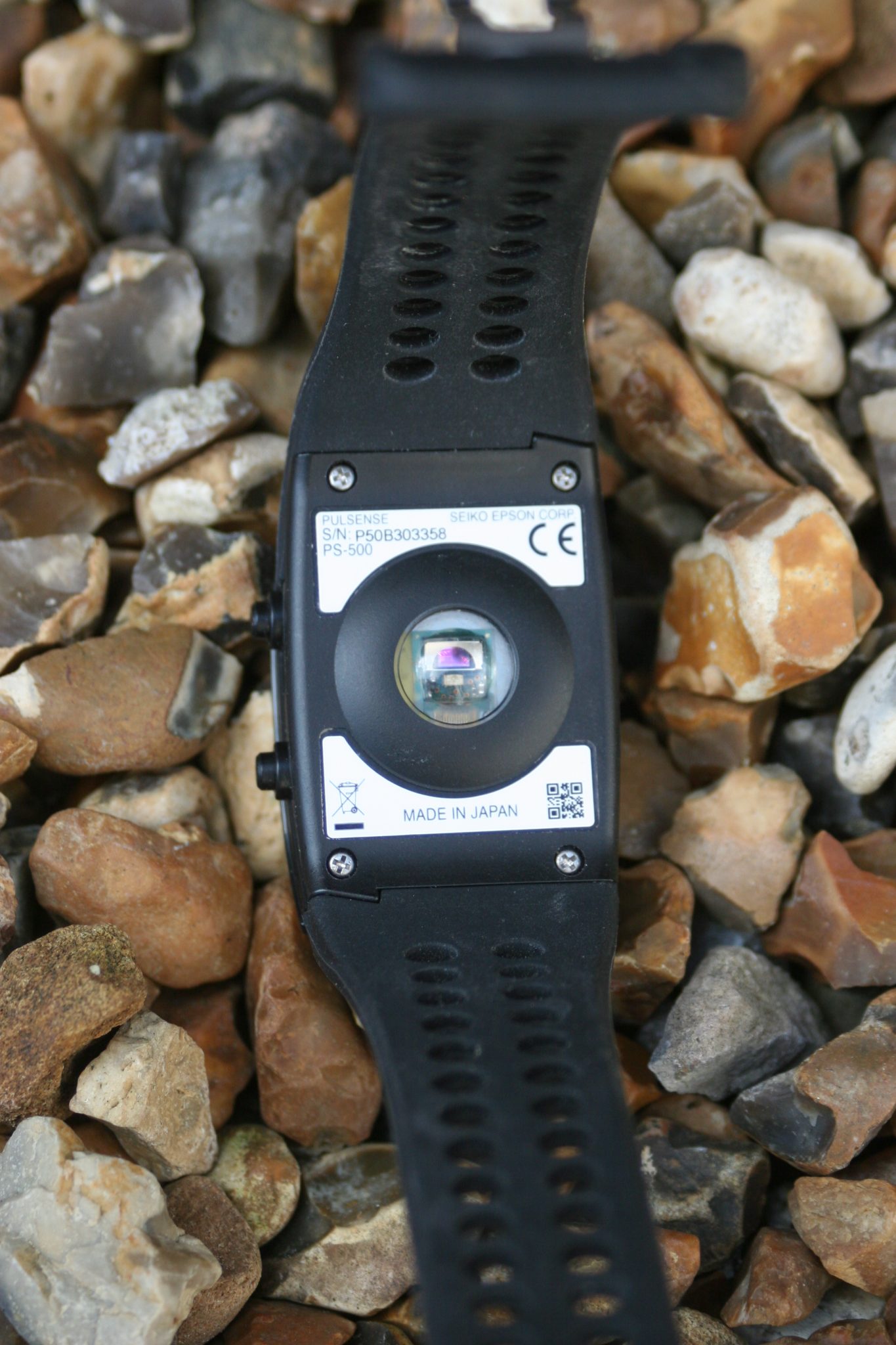

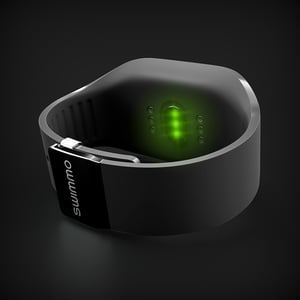

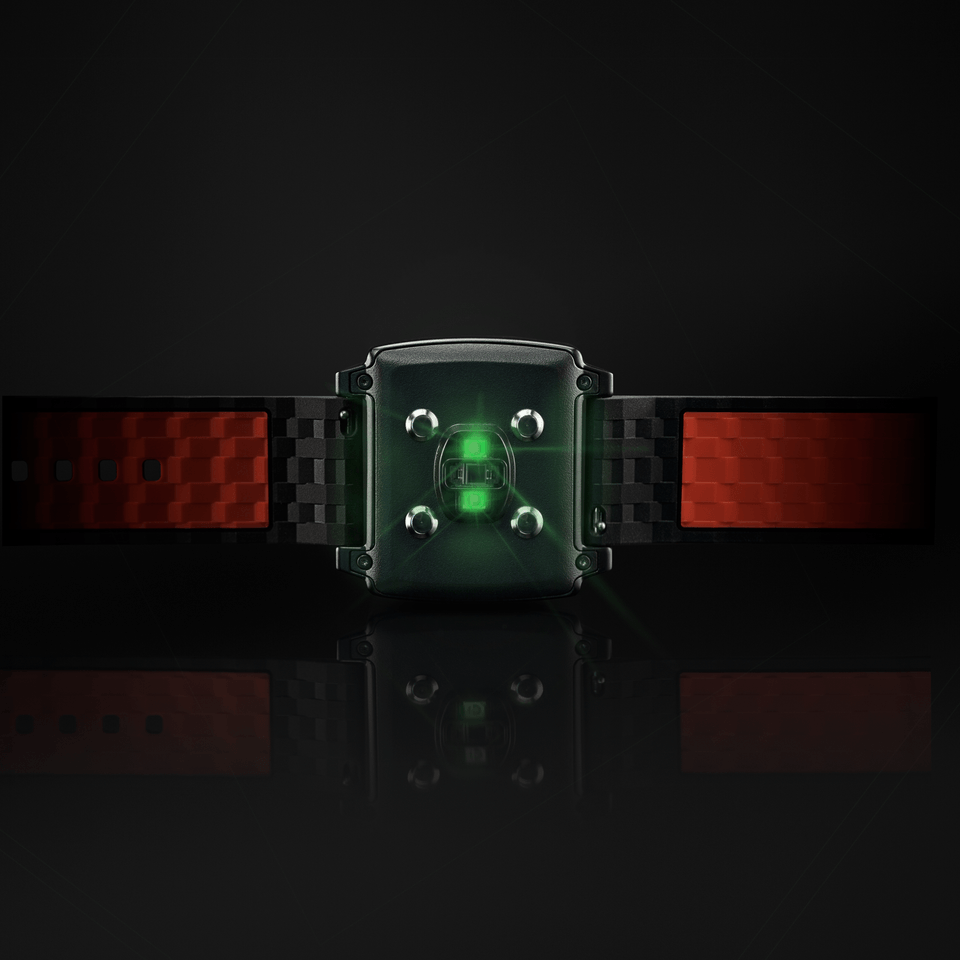

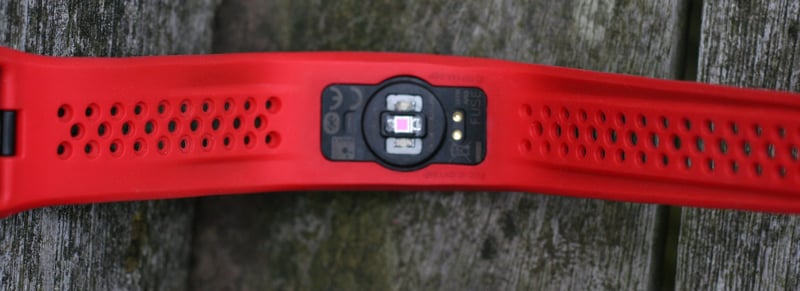

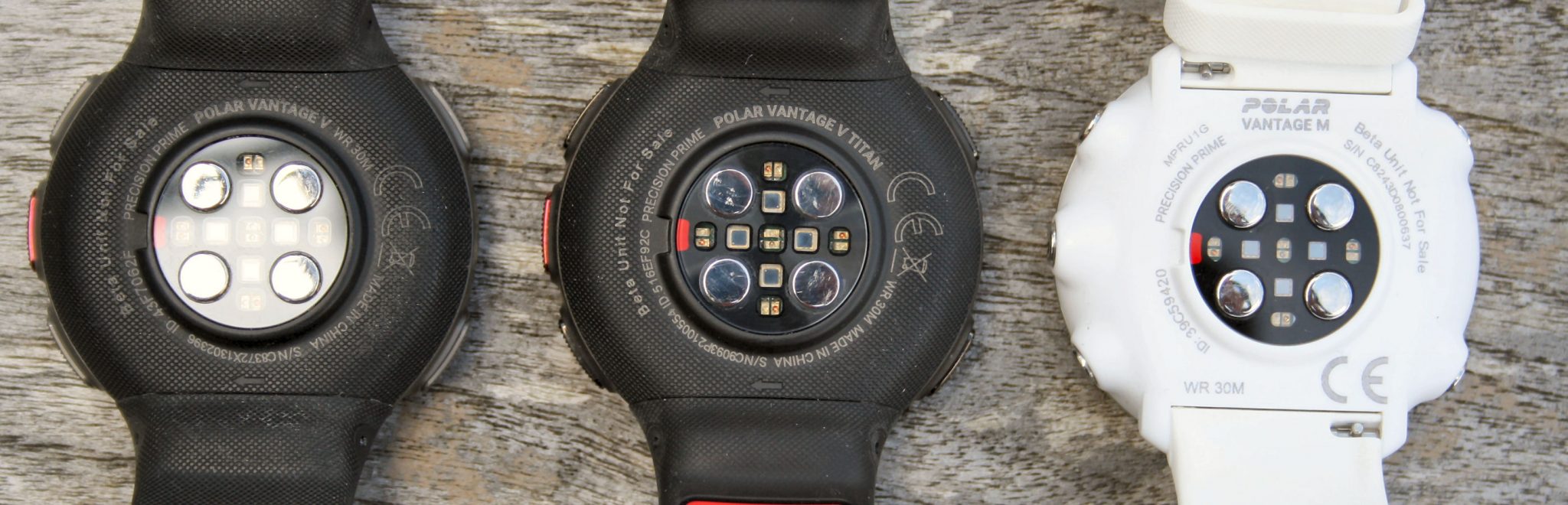

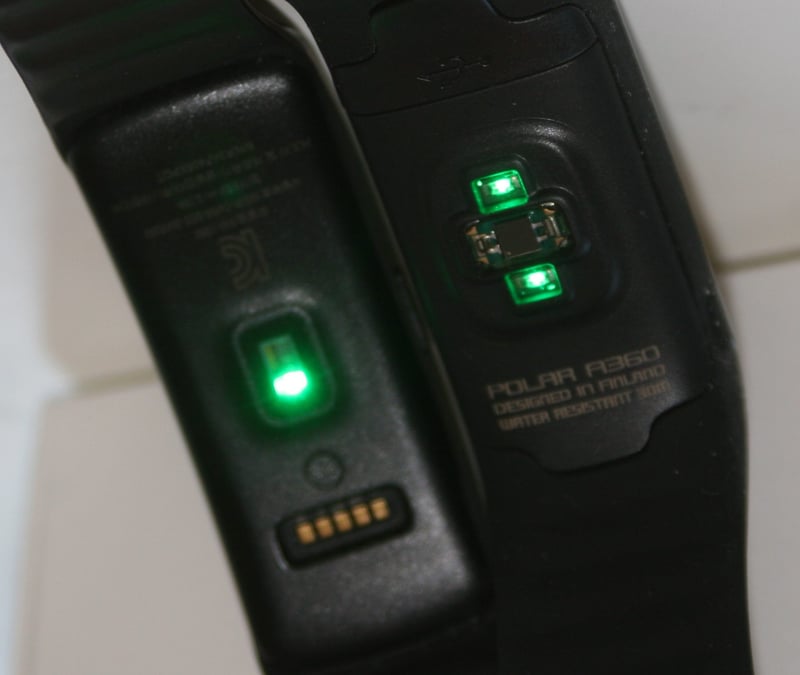

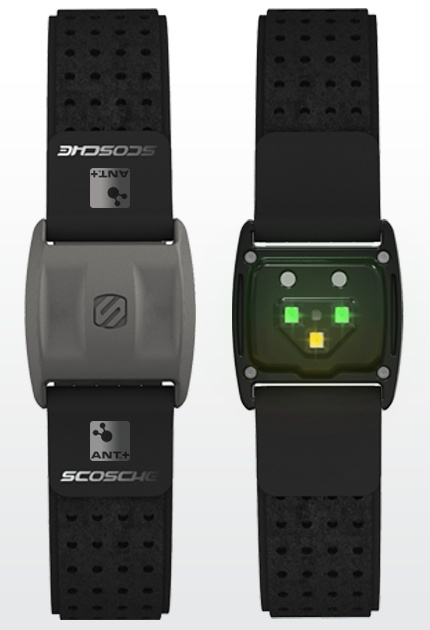

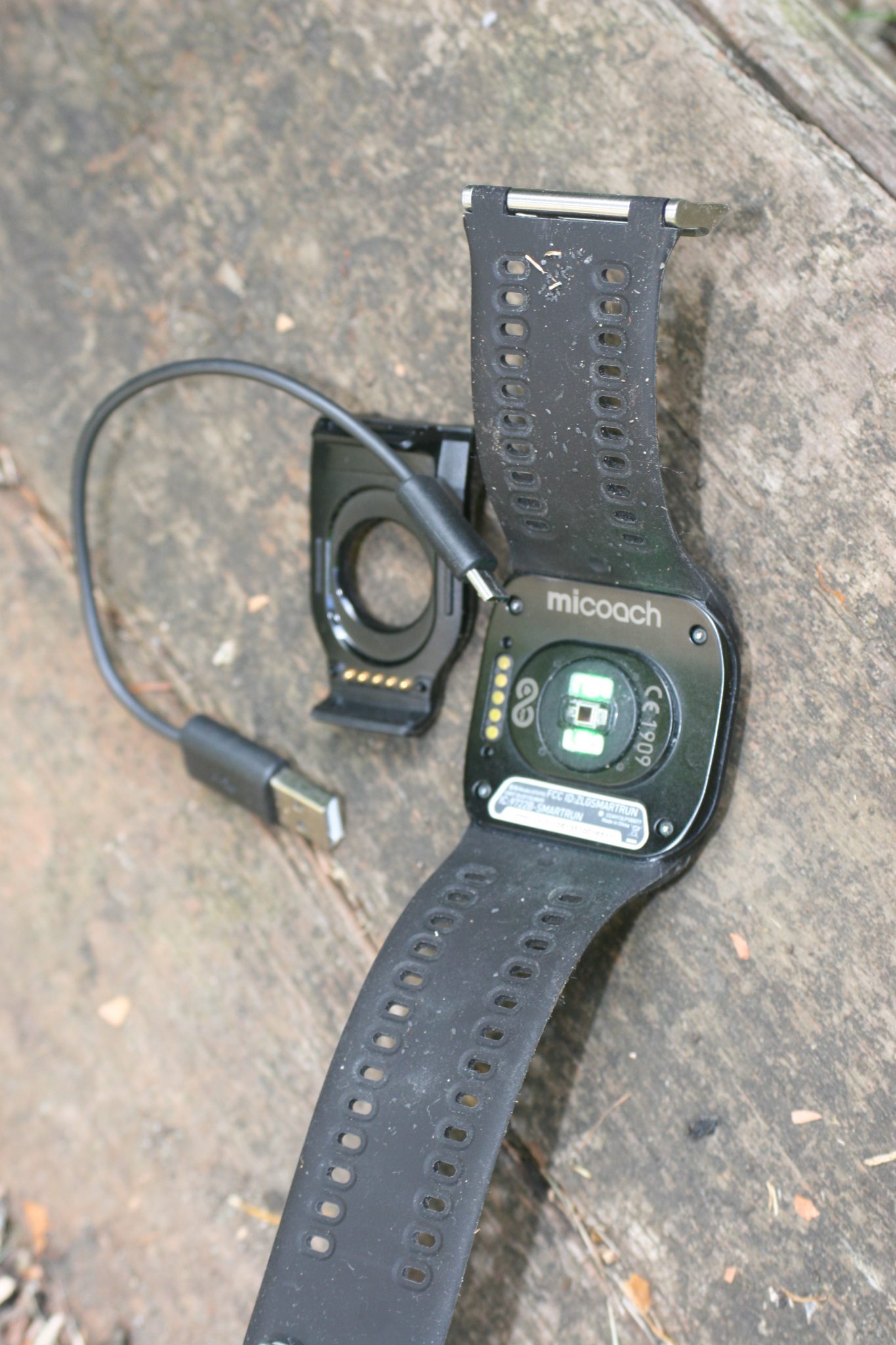

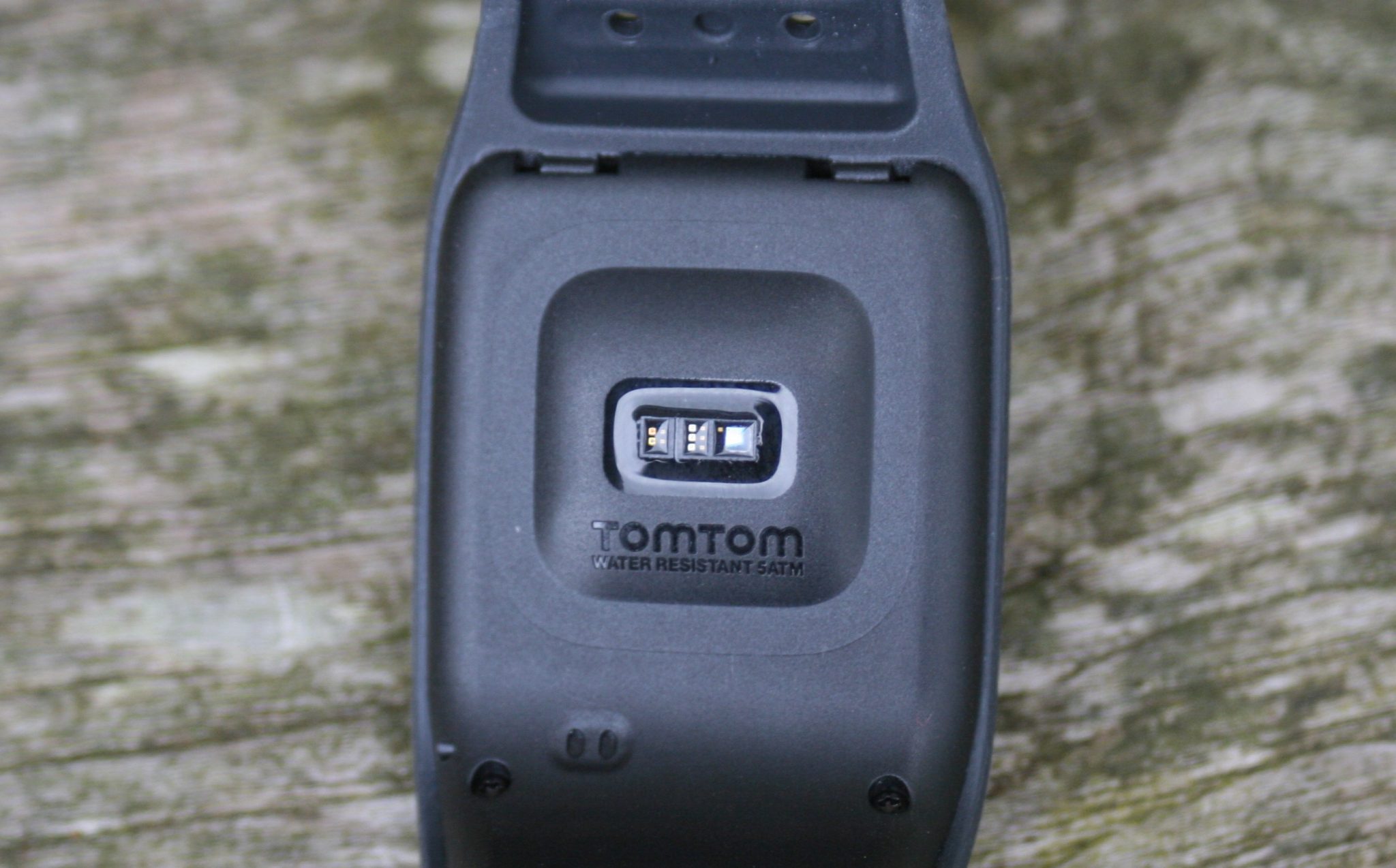

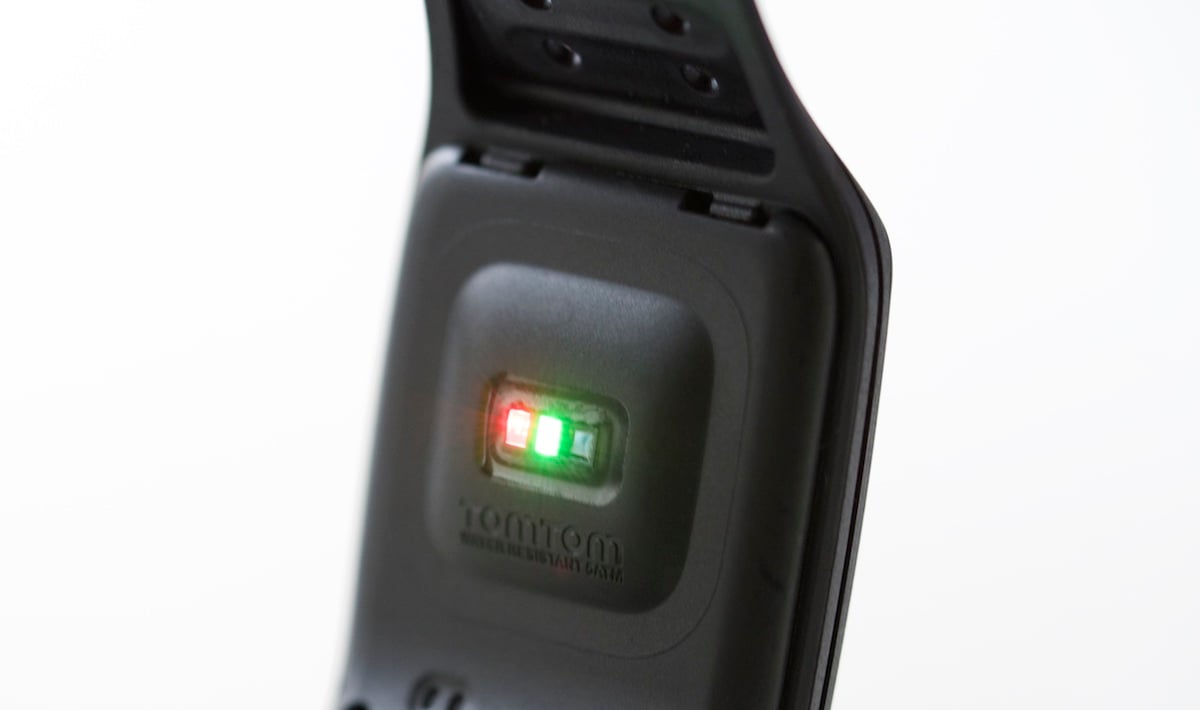

So the ‘perfect’ optical sensor (well a good one at least) may well need lot of fancy stuff that I don’t profess to understand BUT also two wavelengths of light will help to separate the good data from the ‘noise’ (see the Schosche image above 1xyellow+ 2xgreen light).

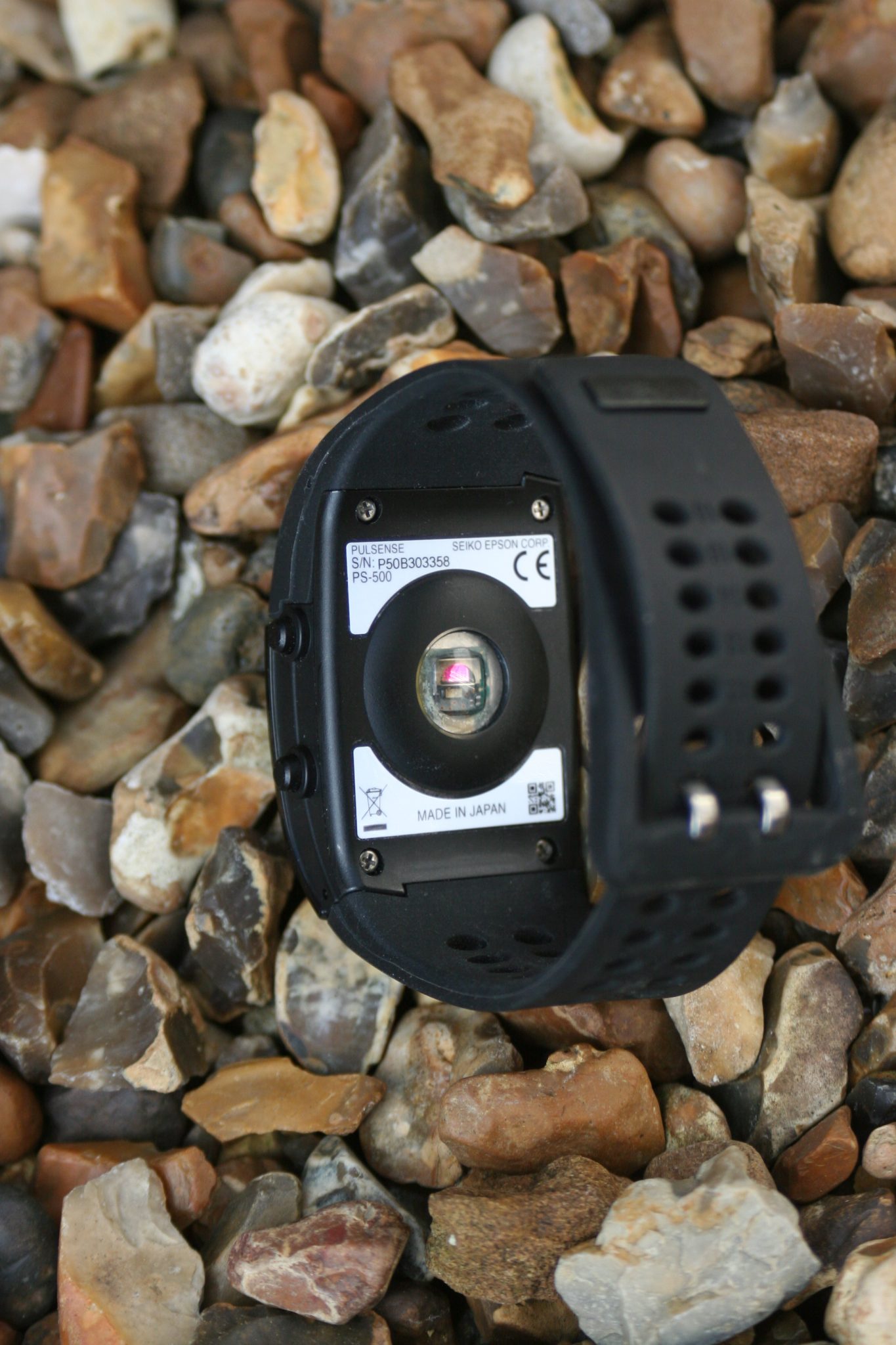

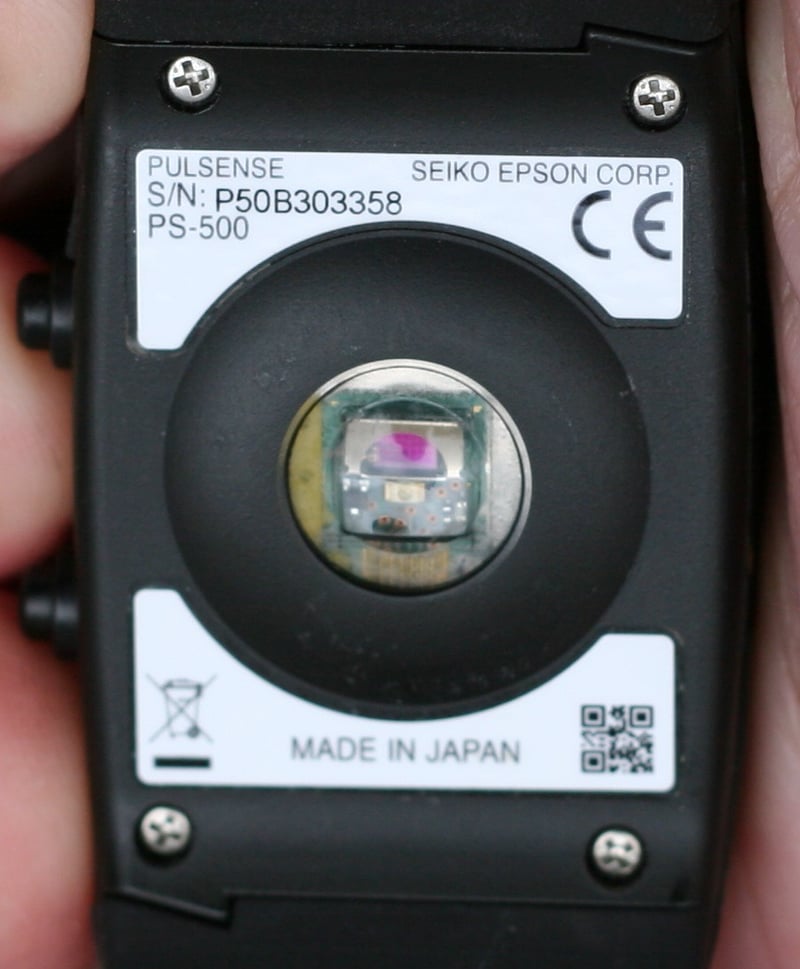

Another critical factor for the wrist location is the sampling area. If multiple readings are taken further apart then more chance exists to remove data artefacts.
The Apple Watch might have given this more consideration, as it is probably one of the areas where it’s accuracy is let down when engaged in sportier activities.
Measuring Accuracy. MIO (Link, Fuse, Alpha, Garmin 225) state 99% EKG level accuracy. Yet if I wore two identical Polar H7 chest straps the accuracy/variation between them would probably be 97%!!. This is called ‘machine level accuracy’.
Whilst MIO’s claim, no doubt, is technically accurate it is a nuanced claim. 96% accuracy would actually be quite good (measured differently to the 99% EKG accuracy of course) and, indeed, that is what other optical HR companies are aiming to achieve very soon and with that will be brought the tantalising possibility of HRV levels of accuracy-enablement for the wrist.
Anyway, we are expecting news today to explain why Apple’s WATCH has been having a few problems with optical HR accuracy at ‘sporty levels’ of exertion. Simply put: their sensors are probably too close together.
Edit: (HERE) is that news.
With that remedied and a better battery life/design the Apple WATCH 2 hopefully will be better.

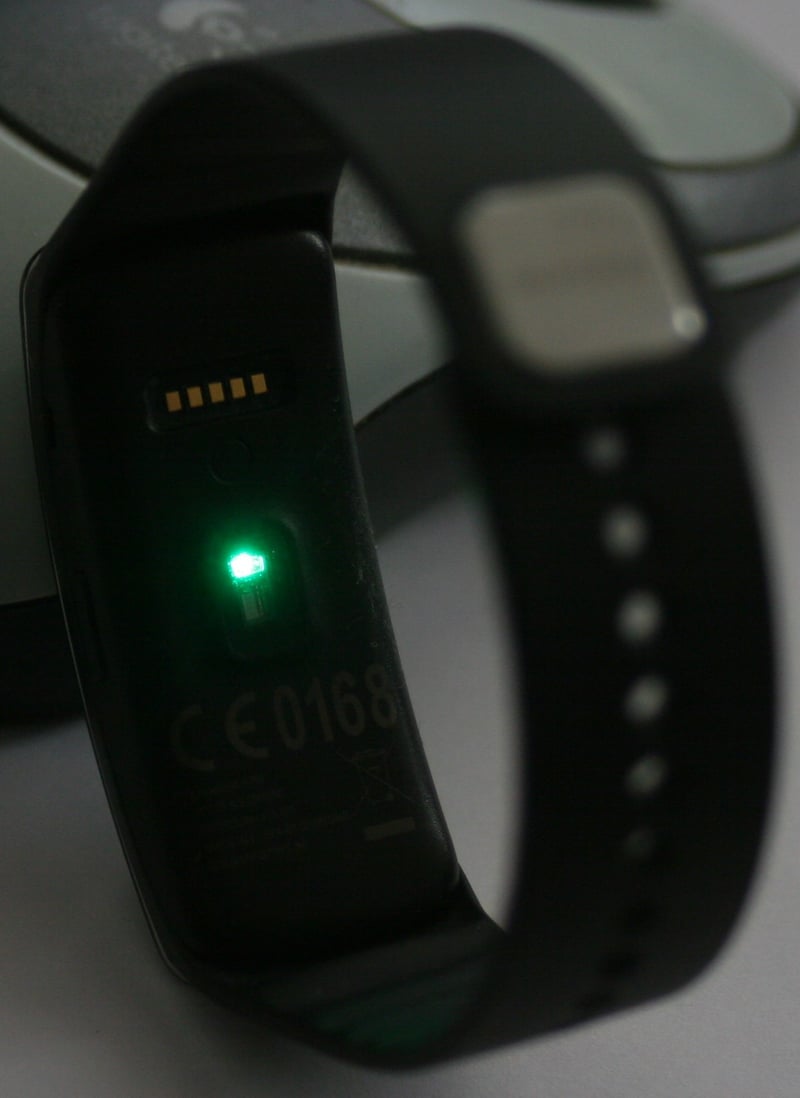

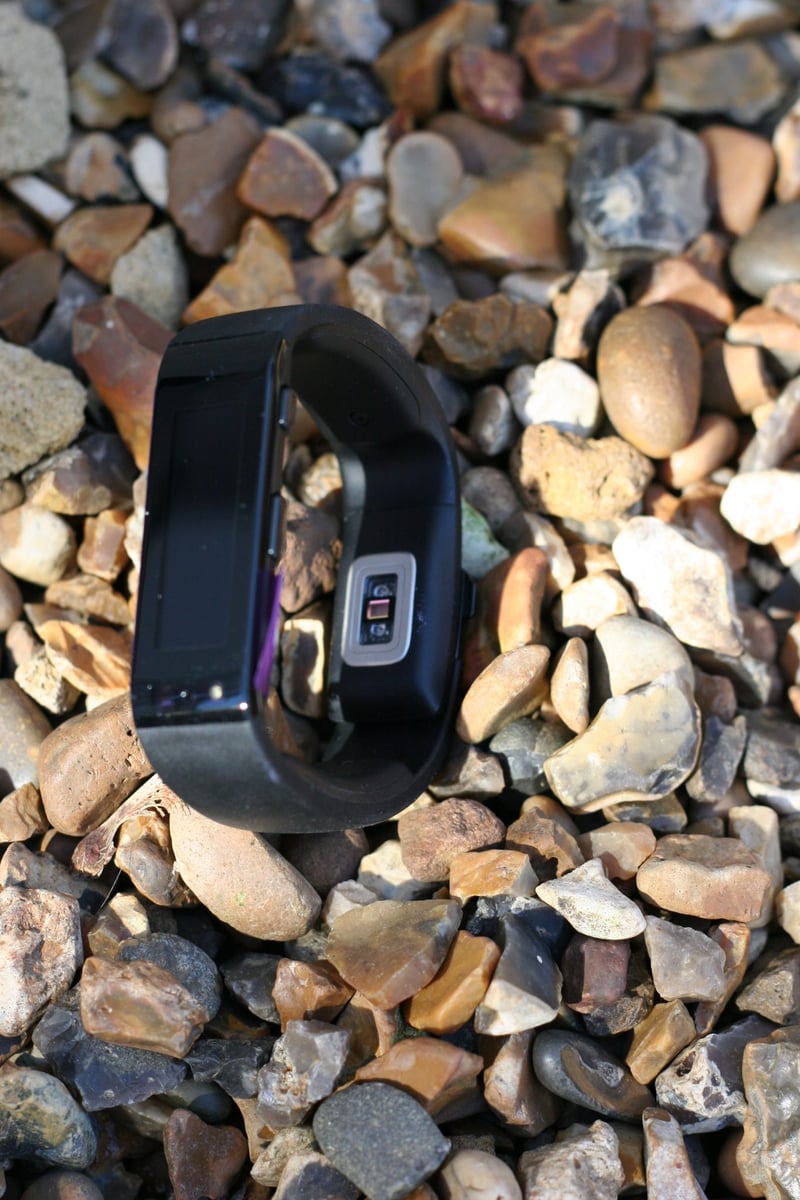

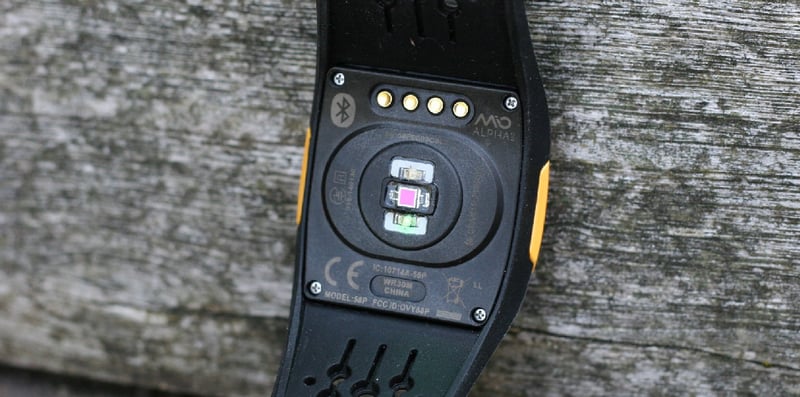

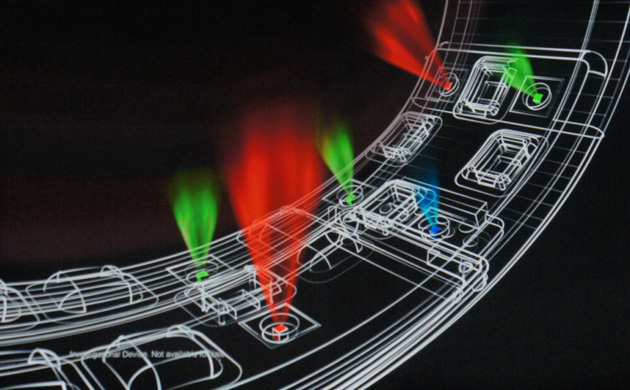

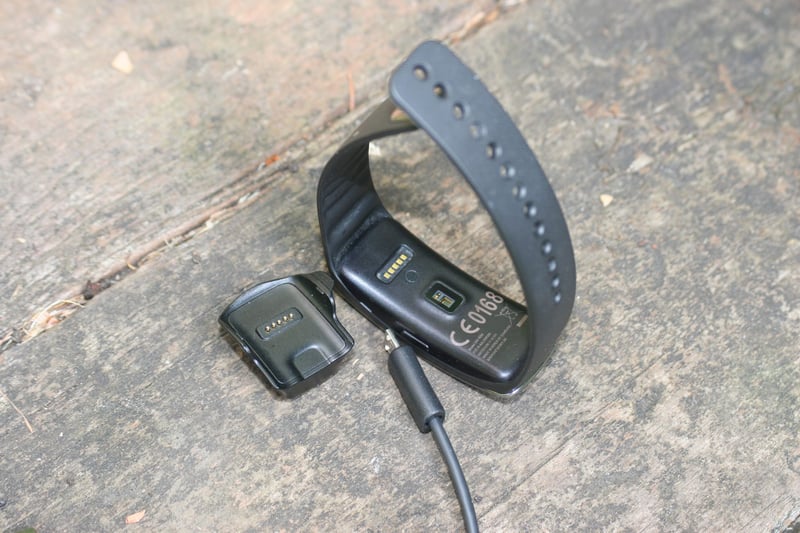

Further exciting news in June 2015 sees Samsung’s SIMBAND (2x images below). The image is genuine and boasts a veritable plethora of sensors (many of the sensors are NOT for HR). The second image suggests wells-paced green sensor, much more wells-spaced than on any of the another released devices. Maybe this is the jump that is needed for the sports and medical accuracy we desire?
