Suunto's SPARTAN ULTRA and SPORT :: Menus, Buttons, Functions – A walkthrough

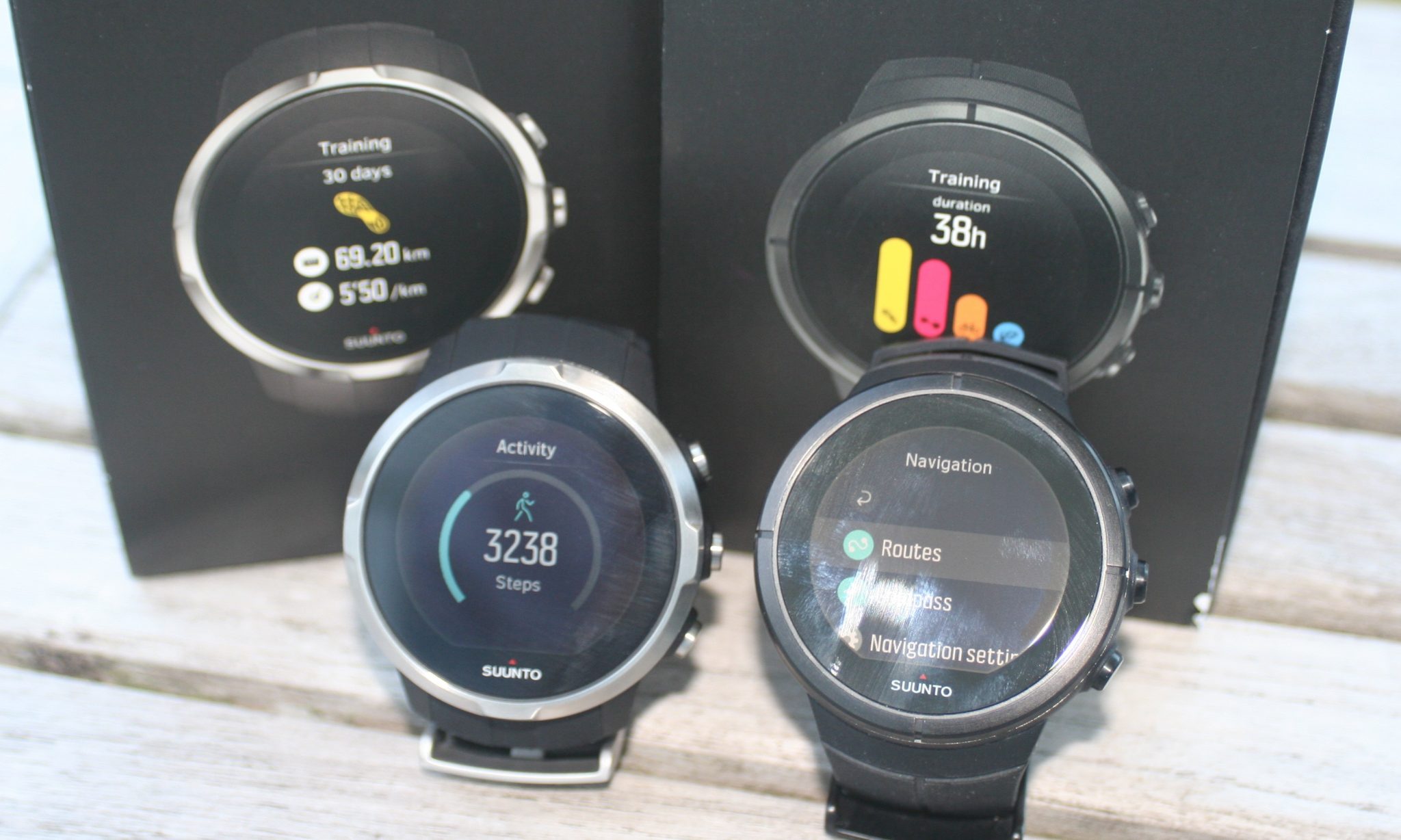

Suunto Spartan Sport (+Ultra)

Left: Sport (metal bezel), Right ULTRA

Suunto’s two current SPARTAN models are the ULTRA and the SPORT. They’re near-identically featured at the moment other than the ULTRA is a bit thicker to accommodate a larger battery with longer battery-life and it has a barometric GPS.

Consequently the menus are nearly identical.

As time progresses and new features are added, this post may become outdated. HOWEVER it gives you a flavour of the UI and <here> is a link to the manual.

Note: This is not a review/opinion piece – that’s for another day. It’s a mostly factual run through of the menus WITH THE AID OF IMAGES and what is there in firmware v1.1.30. If you already have one you will know all this! If not, the two watches help give an idea of the menu flow.

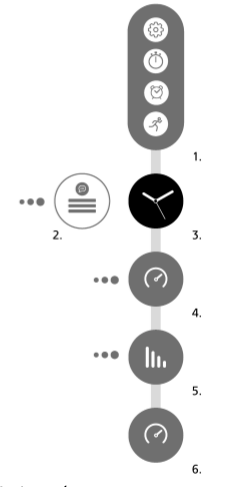

suunto-spartan-menu-ultra-sportMenu Layout and Navigation (image, right)

The watch/time face is the ‘home’ screen. Navigation is by the touchscreen and/or buttons. You really can use either and I do use both. But I would say I use the buttons 80% of the time.

Simplistically: The up and down buttons have the same functionality as swipe up and swipe down.

The middle ‘Go’ button either moves you on to the next step or scrolls through versions of the current screen – eg shows more laps or toggles some data fields.

Swipe left/right does what it says.

Each menu list contains a top menu option to go “back”…this enables the buttons to be used on their own more easily.

From the ‘Home’ screen, going DOWN will show you: training activity; basic steps-like activity; and recovery.

Going ‘Up’ takes you to the sport stuff, navigation, stopwatch, logbook (history) and settings.

Here we have a pretty bar of each sport type on the screen. A nice enough glanced overview for the wearer. The detail is on MOVESCOUNT.

suunto-spartan-menu-ultra-sport

Training Activity – Hours or Distance

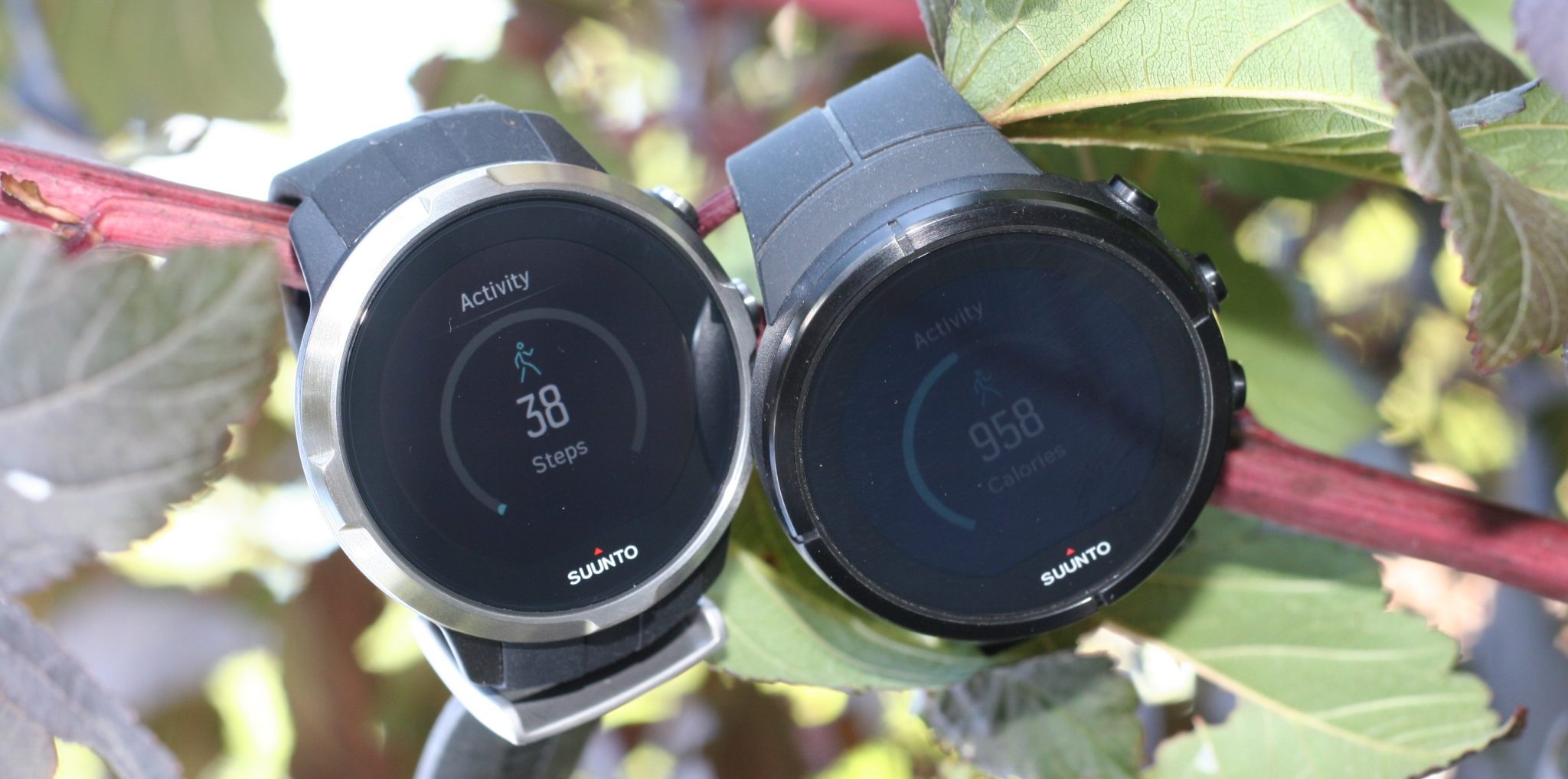

A token nod for basic activity metrics like steps and calories. I don’t think it needs much more than this.

suunto-spartan-menu-ultra-sport

Steps or Calories

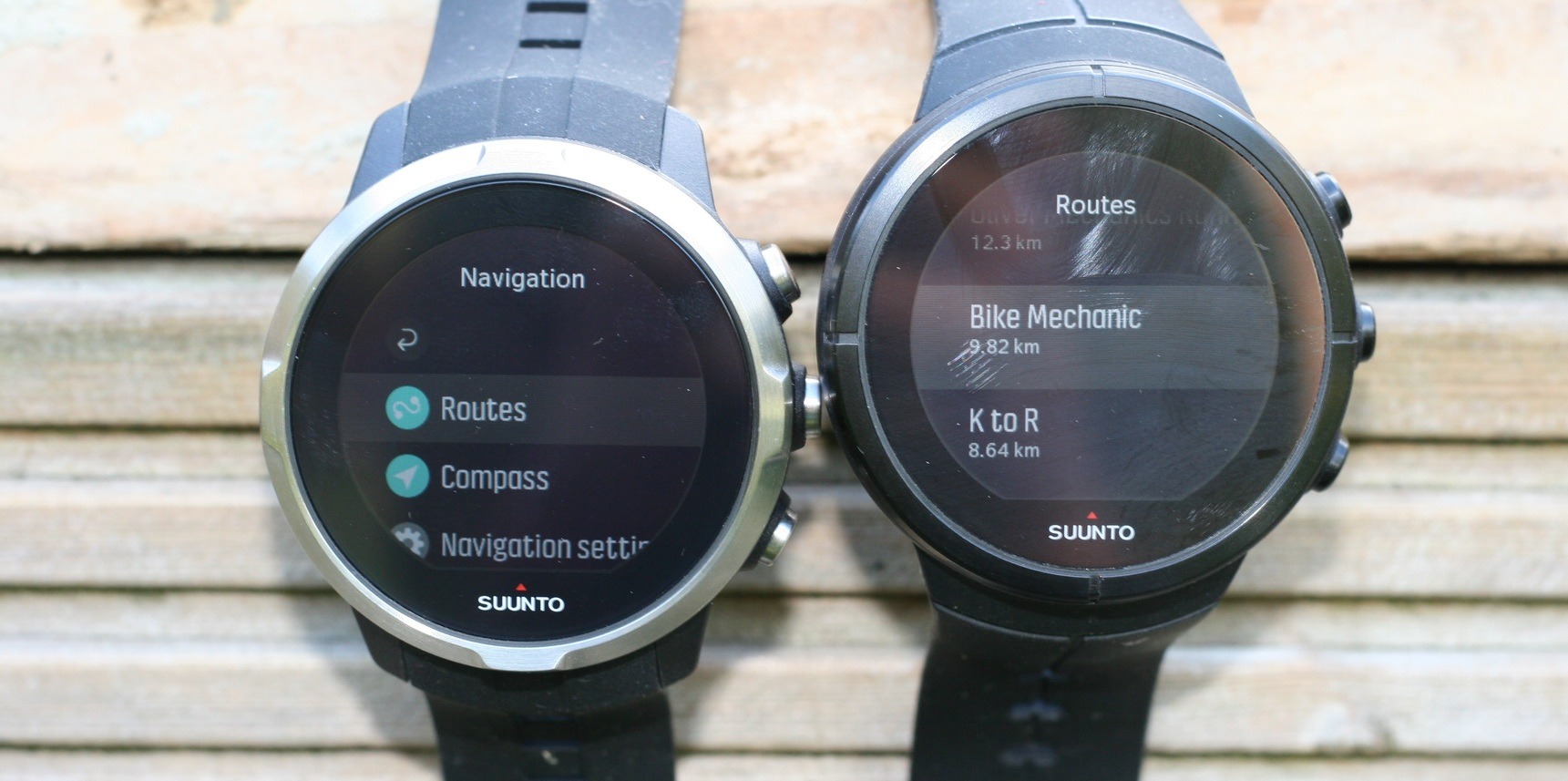

So, selecting ROUTES gives me an option to go and see my bike mechanic and other routes including the mysterious “K to R” which I found on a MOVESCOUNT heat map. Moves are created in MOVESCOUNT and, to be used, you must select a sport and then, effectively, add the route to the sport. A route CAN be replaced/added mid-sport.

Had I chosen the bike mechanic route it would show me a blue line route with my current position and a compass heading. But I would not be able to do anything with that Route here other than use the middle button to zoom-in and -out.

suunto-spartan-menu-ultra-sport

On first-time use, the compass requires calibration. This is the point where you wave it around for ages. Instructions at the end of the post on the easiest way to do this.

suunto-spartan-menu-ultra-sport

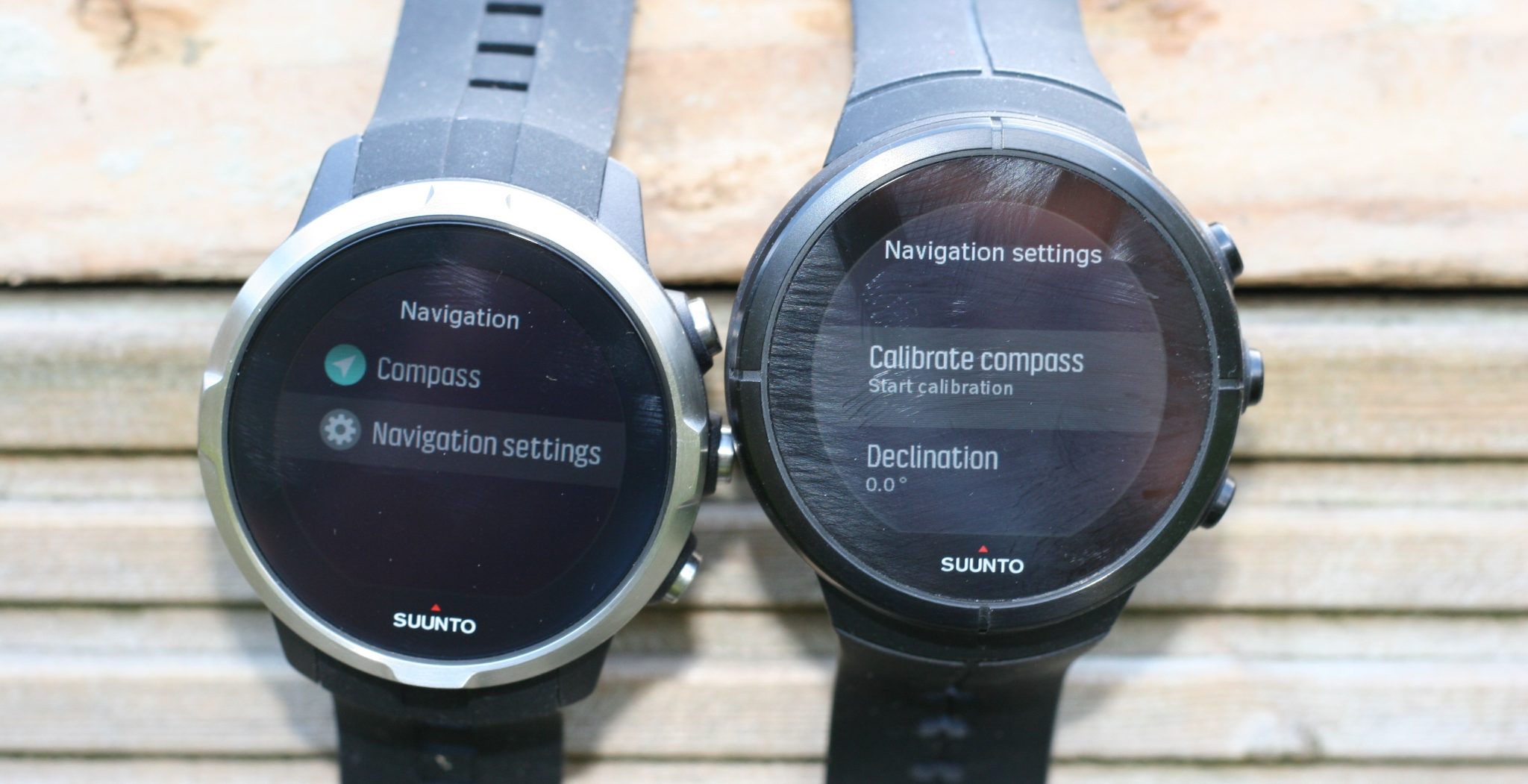

You can recalibrate the compass and further increase accuracy and enter your declination (difference from magnetic to true North).

suunto-spartan-menu-ultra-sport

So with your calibrated compass and a GPS fix and a route selected you get something like this showing you where you are facing and where due North is. You have a blue line as the course and you are in the middle. A concentric circle shows the scale of the zoom on the route. the dots are the route’s gigital breadcrumb trail.

suunto-spartan-menu-ultra-sport

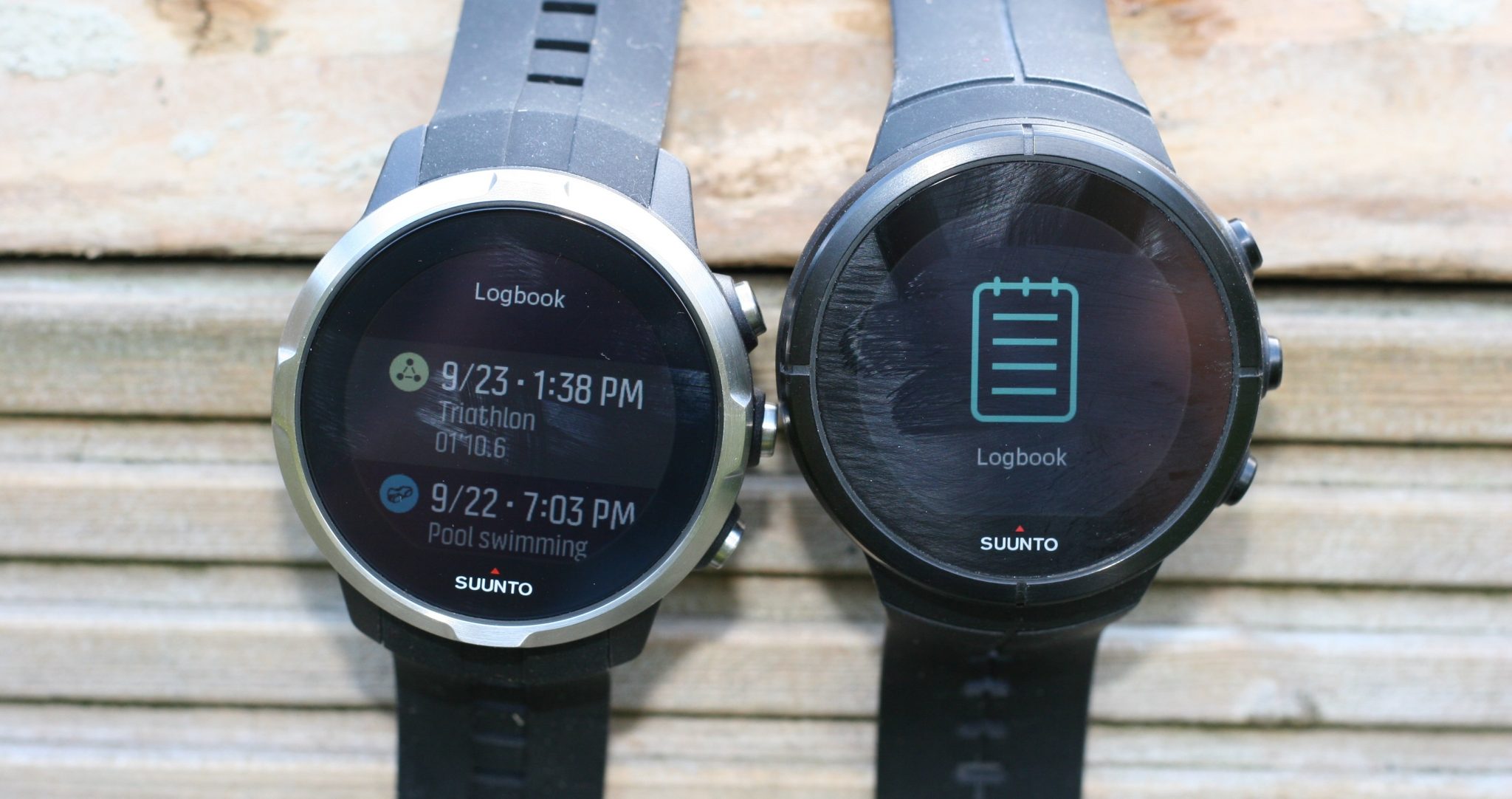

The logbook is quite a nice way to look at your history.

suunto-spartan-menu-ultra-sport

And you can drill down into a bit more historical detail. Personally I do little more than glance at this stuff, preferring to go online for more detail and more analysis. You probably have a life, so this may well be more useful to you than to me 🙂

suunto-spartan-menu-ultra-sport

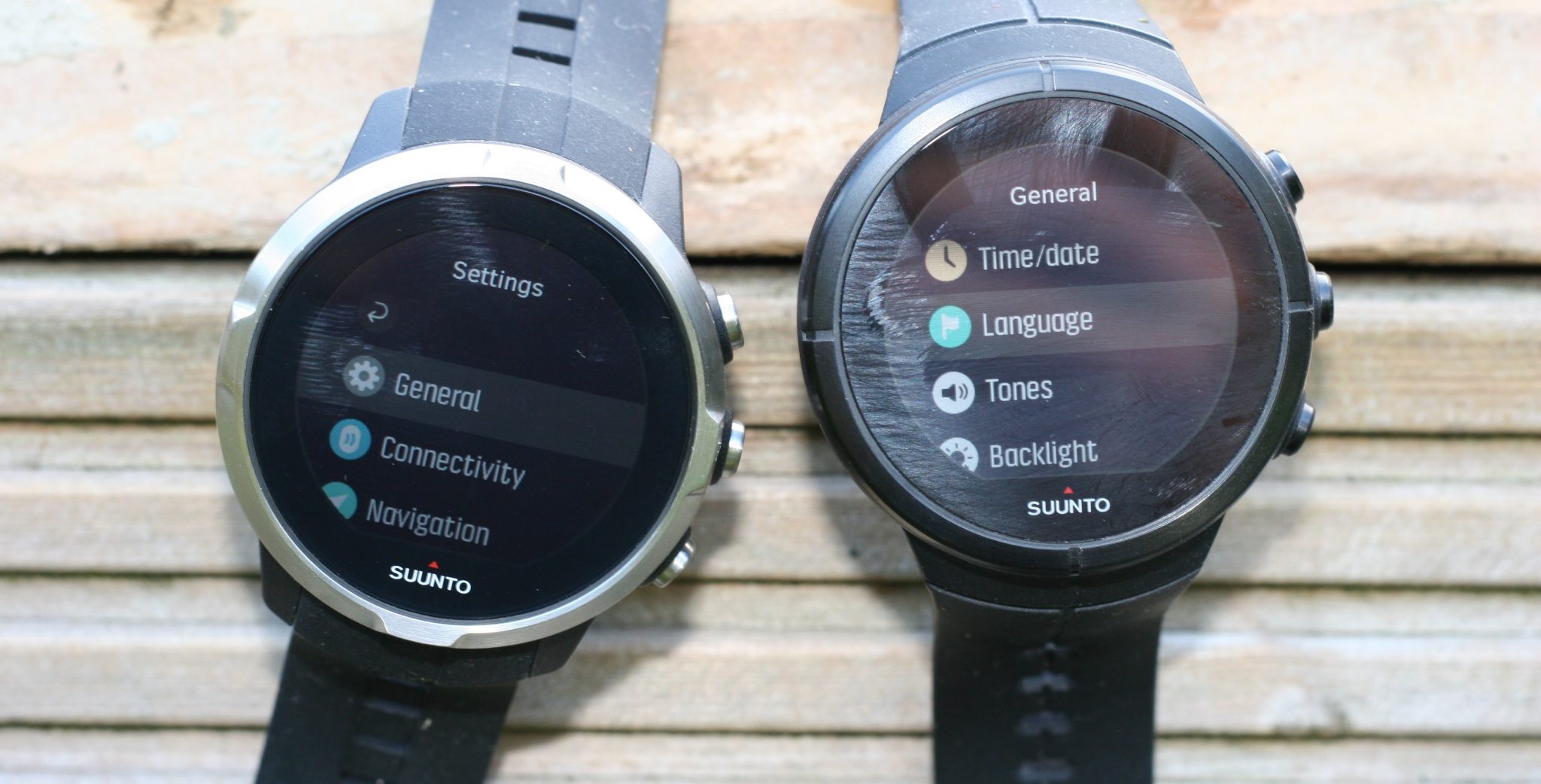

General settings cover the settings of the general stuff. Kind of as you would expect. Well, I did. I wasn’t disappointed. You CAN change the backlight intensity from NOT A LOT to QUITE A LOT.

suunto-spartan-menu-ultra-sport

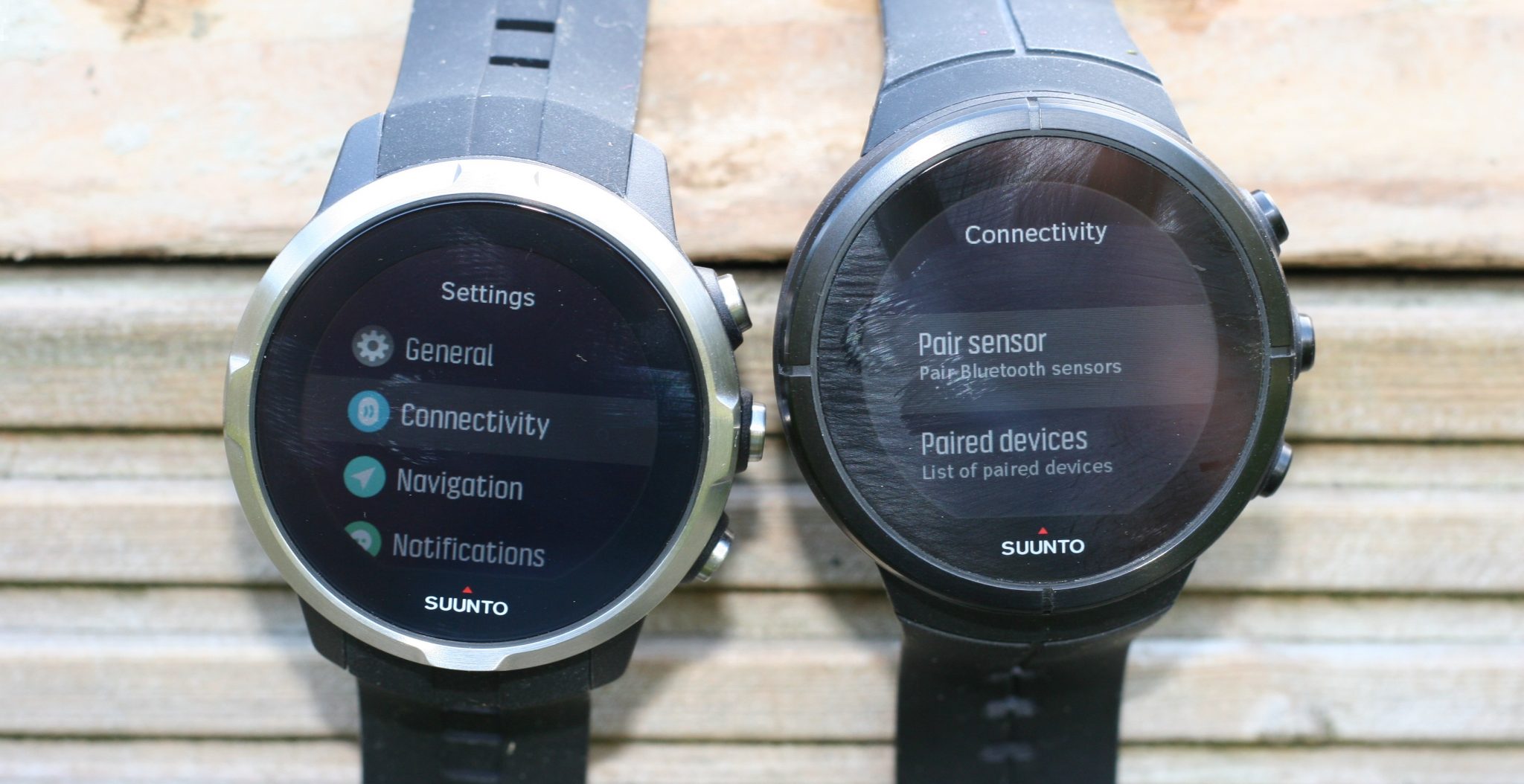

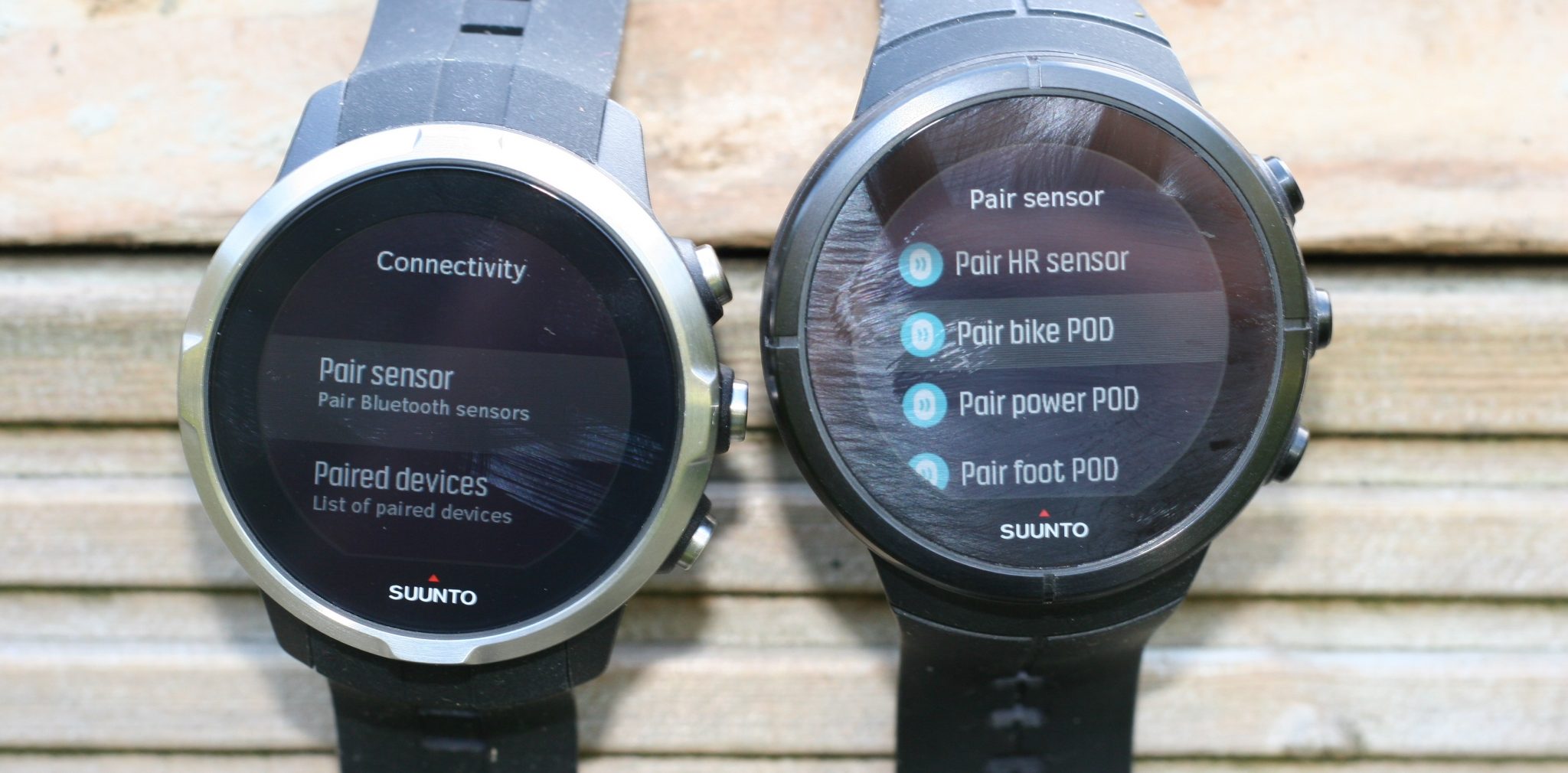

Again all this stuff doesn’t warrant reams of explanation. I’m sure all of you know the broad way to pair BTLE sensors. You can only have one type of each sensor eg 1x HRM, there is no sensor pool. The STRYD pod DOES work for running power if paired only as a simple HRM. The 4iiii Viiiiva V100 ANT+ to BTLE bridge only seems to currently pair as a HRM without the passthrough of ANT+ signals from my bike PMs. Grrrr (although I can’t update the 4iiii firmware, which might be the problem).

EDIT: you cannot have multiple sensors per type

suunto-spartan-menu-ultra-sport

Suunto call them PODs. You know what they are.

suunto-spartan-menu-ultra-sport

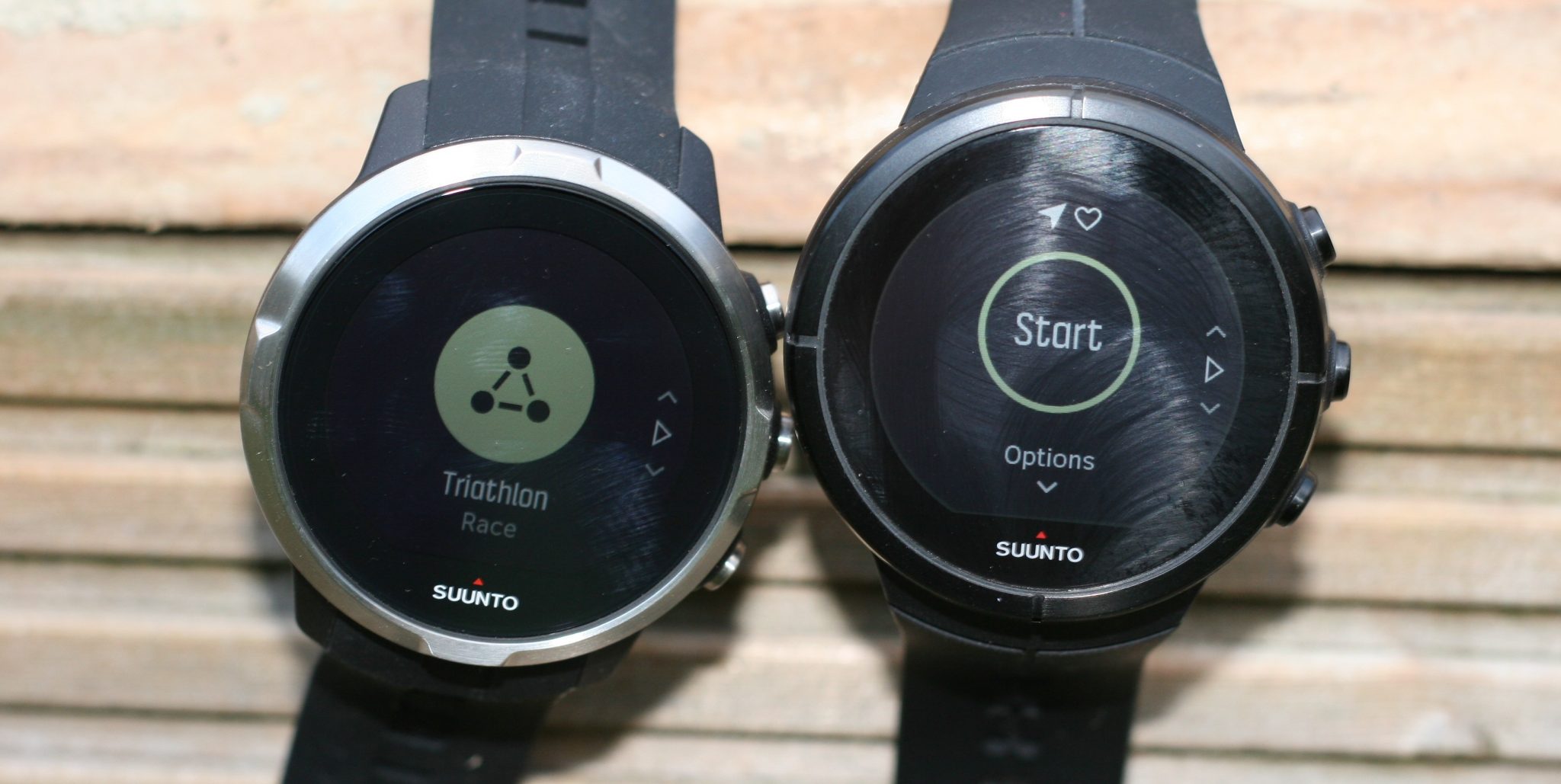

So that’s all the peripheral stuff. That just leaves activating a sports profile and getting going. Here we’ve chosen the triathlon profile (of course!) and then when START appears you can see a directional arrow (GPS) , a HR icon and, indeed, one for each paired pod type. These AND ALL pod icons need to be solid to show they are properly connected. In some instances I found that, whilst exercising, the SPARTAN would not pick up a pod/sensor that it did not have fully connected at the start.

suunto-spartan-menu-ultra-sport

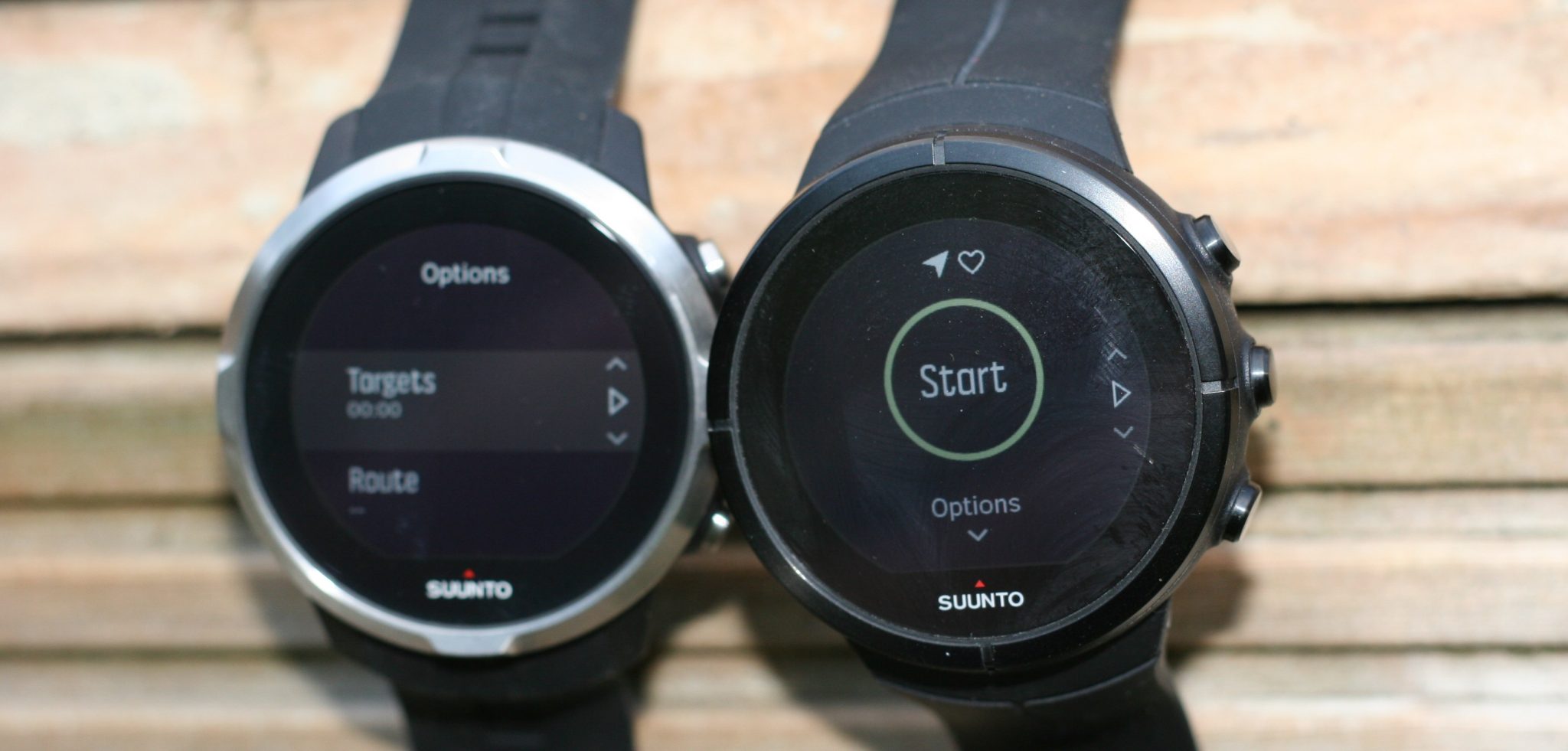

The options you have at the moment are for: setting a TIME-only target; choosing a route for your sport profile; and, further below, setting the GPS accuracy.

suunto-spartan-menu-ultra-sport

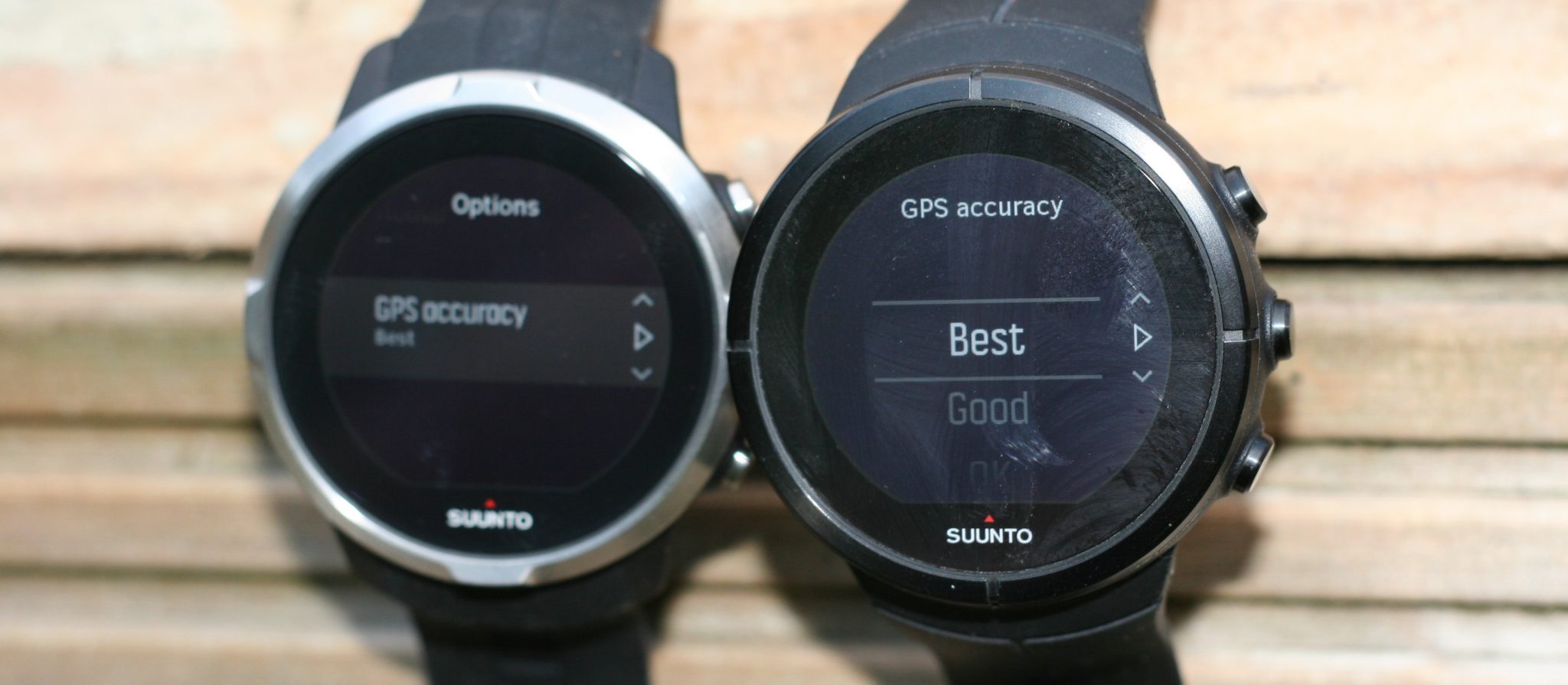

GPS Accuracy. For my usage I will only ever have BEST mode enabled. GPS Accuracy, targets and COURSE can all be changed in-exercise by pressing and holding the middle button.

It is not clear to me at the moment if BEST mode includes GLONASS (apparently not, 30Sep2016). My GPS tests so far have been generally good for the SPARTAN (test1, test2, test3):

suunto-spartan-menu-ultra-sport

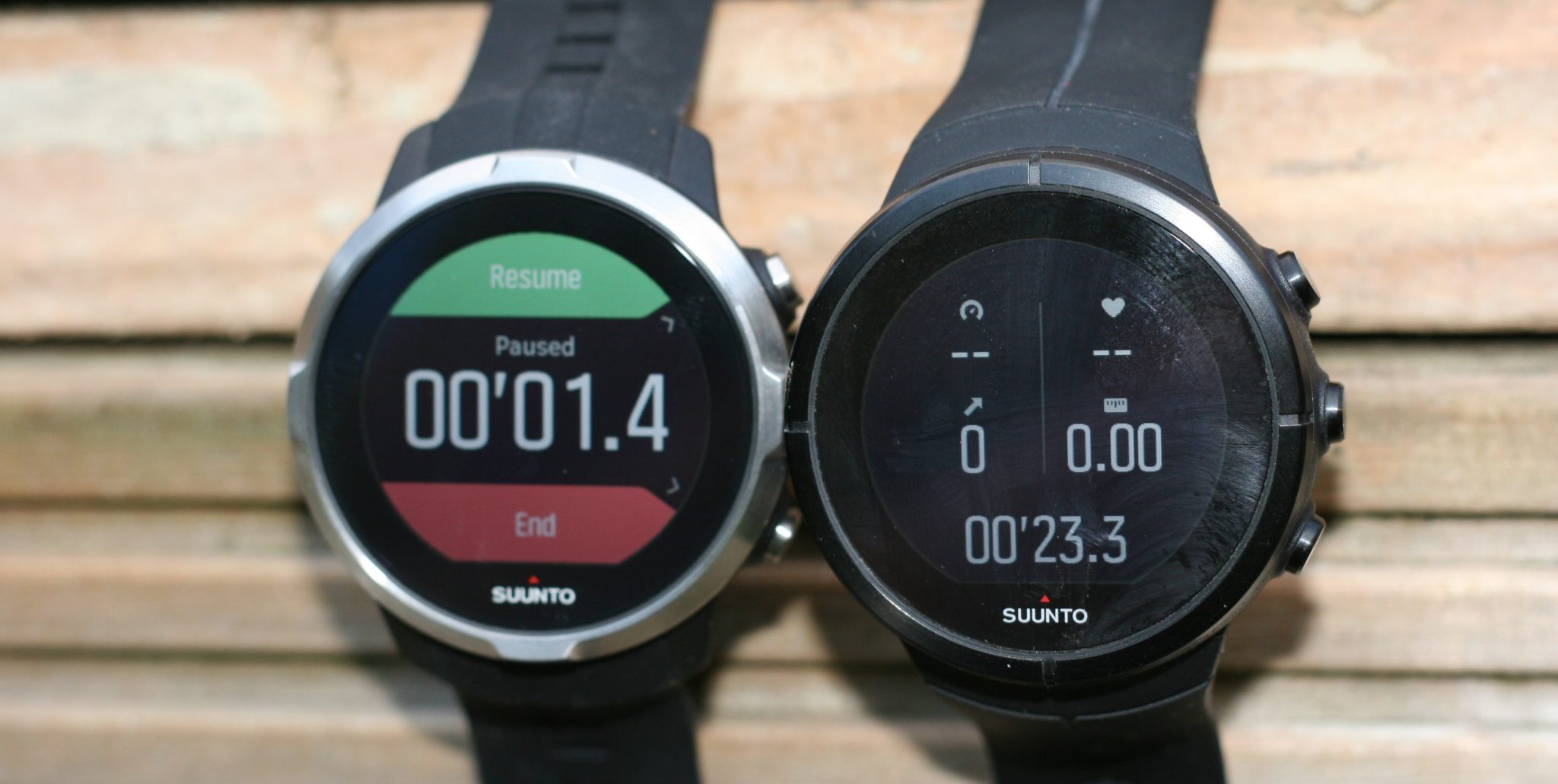

Every good thing comes to an end so, after you have finished your session, there is the resume/save option.

A great thing with the SPARTAN is how it handles MULTISPORT, pressing and HOLDING the top button enters transition. Whereas a single press of the BOTTOM button introduces a lap. so we can get manual laps in MULTISPORT – cool!

suunto-spartan-menu-ultra-sport

The image on the right is the most contentious as Sport Profiles (5 metrics per screen, as shown) will be made customisable in October 2016 (Edit: Oct 2016 – delayed).

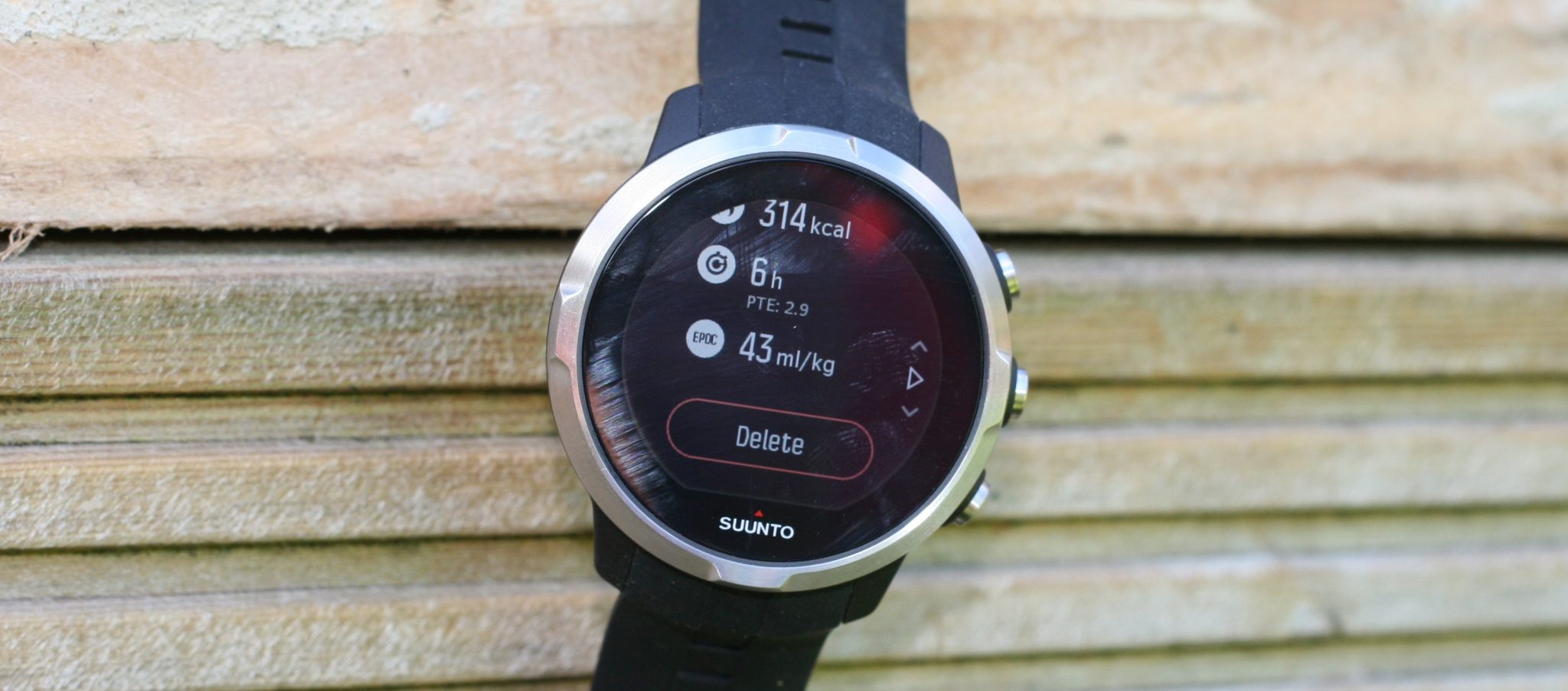

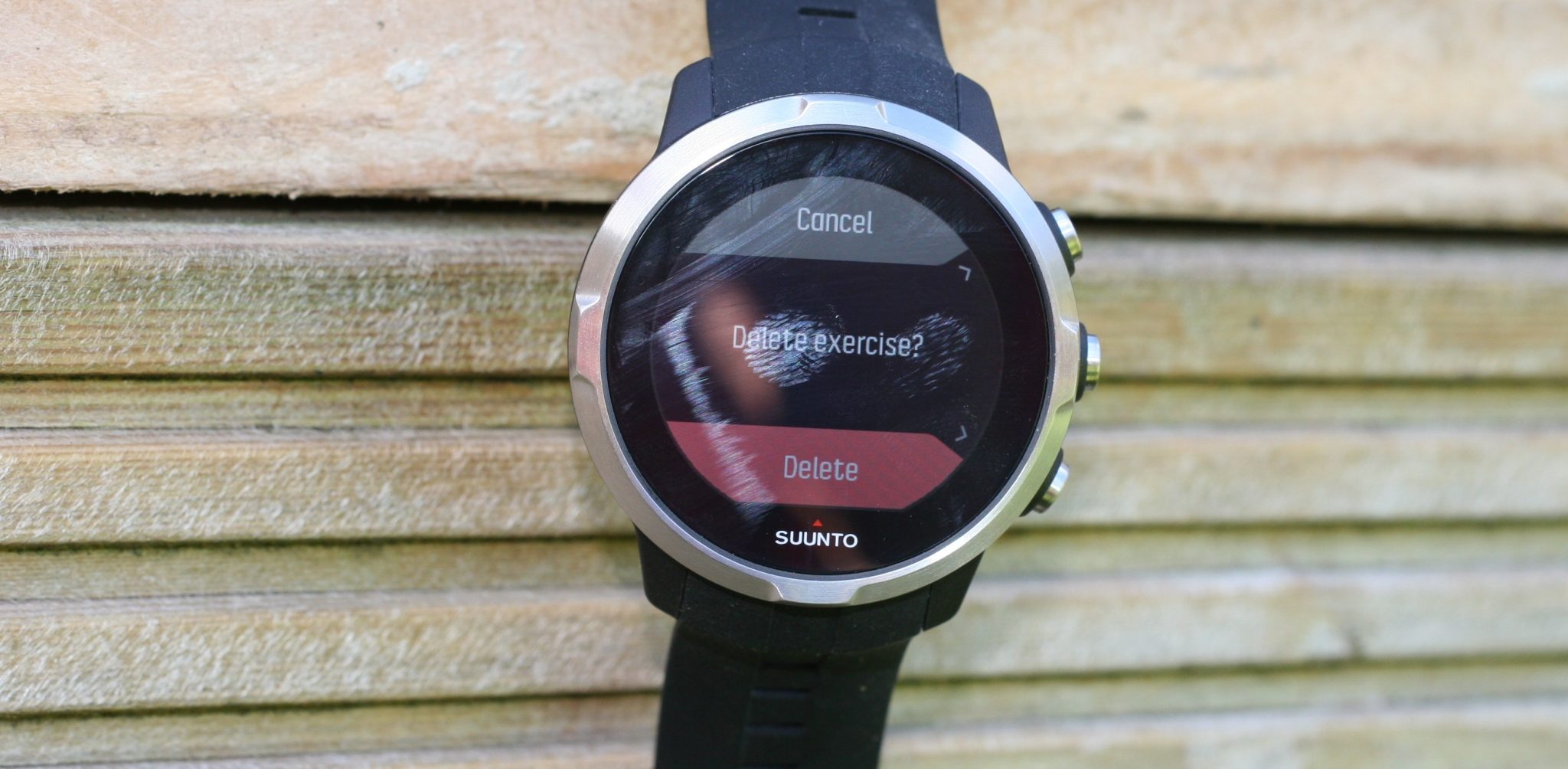

Summary exercise information is shown at the end such as recovery time and EPOC, below. There is an option at the end of that list to delete the log/session and there is an option (not shown) to enter you ‘feeling’ about the exercise.

suunto-spartan-menu-ultra-sport

suunto-spartan-menu-ultra-sport

Reviews and opinions to follow later. A quick one for now:

If you want a good longterm buy then either SPARTAN looks promising. Presumably so will be the 3rd, VALENCELL-based oHR version due ‘later’

Interesting Factettes:

  1. The SPORT model seems to be slightly faster at displaying and moving through menus than the ULTRA.
  2. Calibrating the compass is easier and quicker if you give it to someone else to do.
  3. Whilst the watch face always looks great ‘face-to-face’, EVERY SINGLE TIME you take a picture a fingerprint will magically appear. Sometimes, if you have just REALLY cleaned it, TWO fingerprints will appear. Welcome to my world 🙂 Apologies for that on the pictures.
