new Stages Gen 3 Firmware Update

Reading Time: < 1 minute

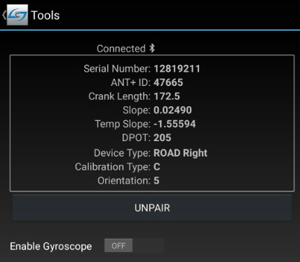

Stages Power Meter Review Shimano UltegraStages infrequently issue firmware updates as their PM product set is generally pretty stable in my experience (Gen 3). However this one dropped last week and might well be worth updating to if, perhaps, you were experiencing right-side power spike issues. Enabling the gyroscope is only possible with the Android app (Edit: 8 April, now iOS)Β  and only possible solely with the right crank paired (Edit: 8April, This seems different on the iOS version) and this helps corrects cadence spikes which helps correct power spikes (see 5th image below).


Date: 01/29/20 (m/d/y)

Firmware Release #: v1.6.1

Replaces Release #: v1.5.1


  • Support for 3.1 and 3.2 IC meters.

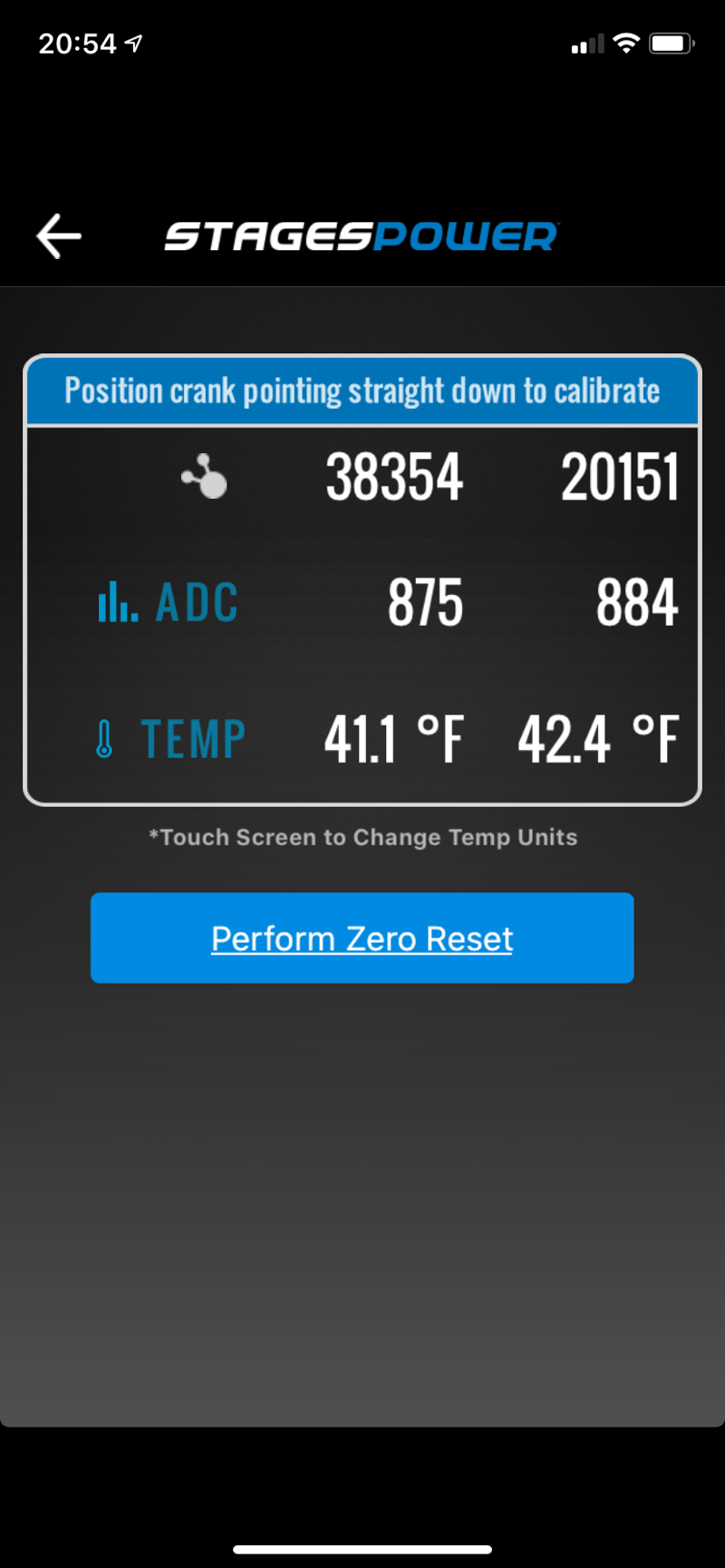

  • Improved auto-zero values.
  • Support for cadence-only meters.
  • Magnet-based cadence automatically enabled when a magnet is detected. Resets on sleep.

Bug Fixes:

  • ANT broadcast correctly transmits serial number.
  • Right-side meters correctly use gyroscope (must be enabled via app).

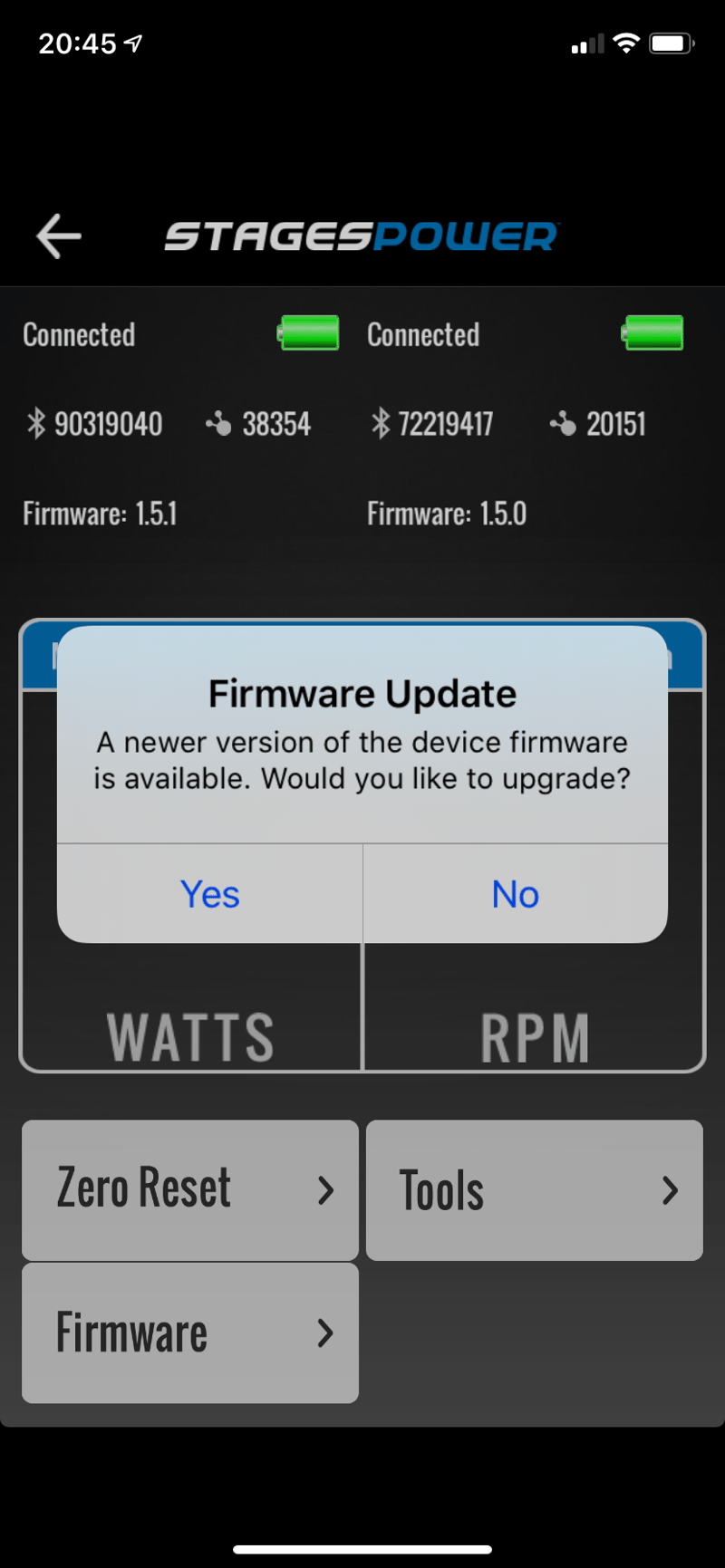

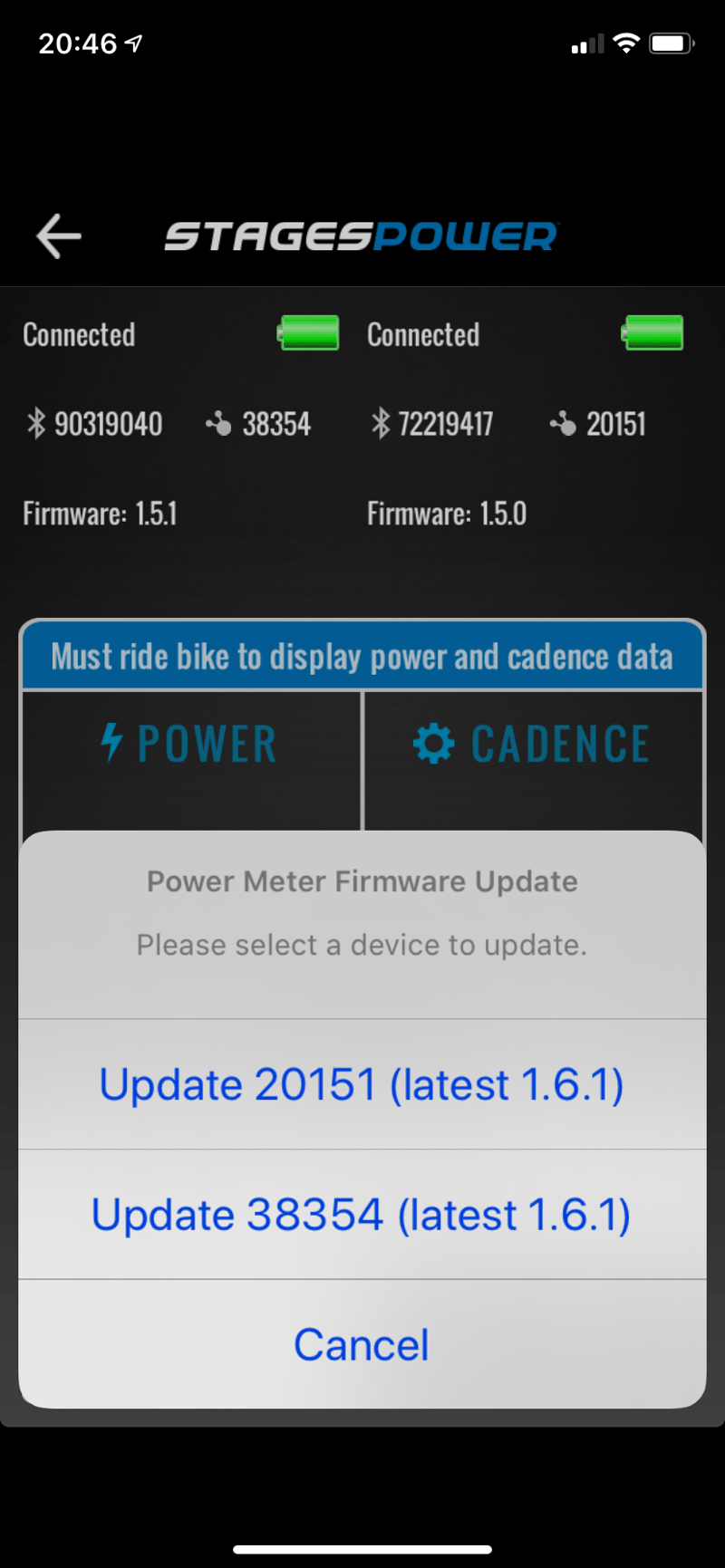

I have always had unmatching calibration numbers but the new firmware hasn’t changed them so I guess all is good. Anyway, in case this is your first Stages firmware update you’ll need to download the Stages Power app and do this…


Support this site with purchases at these partners - should click to a local choice in your country
Notify of
newest most voted
Inline Feedbacks
View all comments

Hello, I have an error in the left crank, since it lost its ID and does not recognize it in the garmin, please help me !!!!

tfk, the5krunner

This sounds like a job for SUPPORT
However use the stages power app, perhaps updating the firmware will reset the device. and/or unlink and re-link the pair


Recent update 1.6.3 made my stages go crazy πŸ™

tfk, the5krunner

in what way did it go crazy?
I have noticed some strange indoor sessions where the presence of electrical interference from other devices eg WIFI *MIGHT* be affecting readings. but i am not sure.


Thanks for your answer. this is what has happened to me. I started claiming in the stages support, but I still had no answer.
Thank you


Do you have an email where I can send you the photos that show the problem?
Thank you

tfk, the5krunner
not sure i will be able to shed any more light than stages themselves or than the folks you bought it from. you should be able to post a url to an image here?
