Garmin CIQ System 5 Is Coming

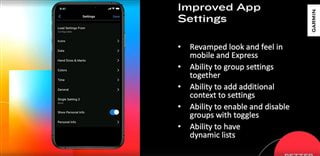

News today of some of the details that will be supported in CIQ next year. We will probably see this in System 5 (CIQ 3, API Level 3.3?). Which you might see (incorrectly?) referred to as CIQ 5.
Whilst this is a feature that will initially be of interest to developers it will affect the capabilities of many Garmin devices and some new ones in 2022.

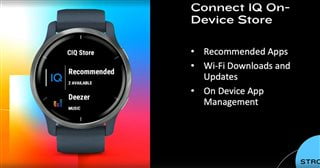

App Store on the Watch
Garmin’s CIQ store was initially only available through a browser but the addition of a smartphone app made it much easier to choose and install those extra bits of ‘must have’ functionality on your Garmin watches and bike computers. Well both of those versions of the CIQ store (web, smartphone) will be revamped.
Better still, taking a leaf out of Google’s Wear OS, the app store will also be accessible on the watch. Super cool!
It also looks like the Wi-Fi enabled devices will be able to download CIQ apps and their updates over your home WiFi as well as enable you to tinker with some of their settings on the watch.
Very Nice.
Compatability

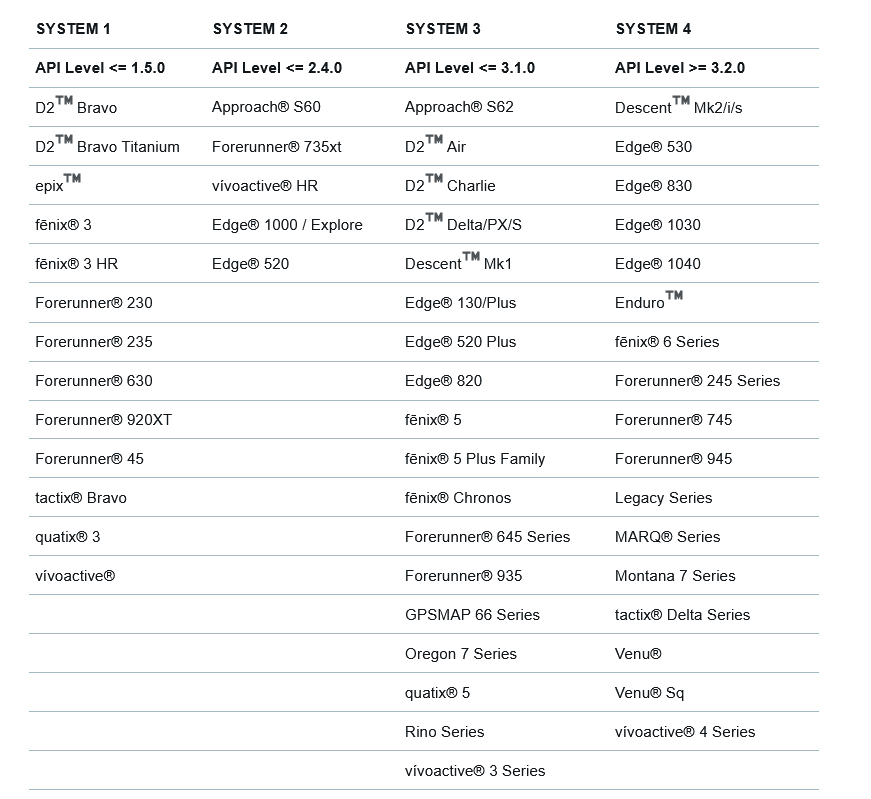

Check out the first image at the top and compare it to the one immediately above.
It looks like most devices that support CIQ System 4 will also support the new CIQ System 5 where hardware permits.
Also New
We will see new analytics and new metrics that can be incorporated into CIQ, including Stress Data, VO2max and Body Battery.
Take Out
Perhaps not as big a leap forward as in previous years but there are some tantalising hints at continued improvements from Garmin, especially to new devices next year.
If you want to read more technical detail then check out the Garmin Developer’s report on this same subject. Elsewhere, Ray Maker points out that some of the wording used by Garmin suggests that AMOLED is the chosen way forward for its high-end, high-resolution devices.
More Info – Currently Supported API Level
| Watches/Wearables | API Level | Screen Resolution | Screen Shape | Screen Technology |
| Approach® S60 | 2.4.0 | 240 x 240 | round | Memory-In-Pixel (64 colors) |
| Approach® S62 | 3.0.0 | 260 x 260 | round | Memory-In-Pixel (64 colors) |
| Captain Marvel | 3.2.0 | 218 x 218 | round | Memory-In-Pixel (64 colors) |
| D2™ Air | 3.2.0 | 390 x 390 | round | AMOLED |
| D2™ Bravo | 1.4.0 | 218 x 218 | round | Memory-In-Pixel (16 colors) |
| D2™ Bravo Titanium | 1.4.0 | 218 x 218 | round | Memory-In-Pixel (16 colors) |
| D2™ Charlie | 3.0.0 | 240 x 240 | round | Memory-In-Pixel (64 colors) |
| D2™ Delta | 3.1.0 | 240 x 240 | round | Memory-In-Pixel (64 colors) |
| D2™ Delta PX | 3.1.0 | 240 x 240 | round | Memory-In-Pixel (64 colors) |
| D2™ Delta S | 3.1.0 | 240 x 240 | round | Memory-In-Pixel (64 colors) |
| Darth Vader™ | 3.2.0 | 260 x 260 | round | Memory-In-Pixel (64 colors) |
| Descent™ Mk1 | 3.0.0 | 240 x 240 | round | Memory-In-Pixel (64 colors) |
| Descent™ Mk2 / Descent™ Mk2i | 3.2.0 | 280 x 280 | round | Memory-In-Pixel (64 colors) |
| Descent™ Mk2 S | 3.2.0 | 240 x 240 | round | Memory-In-Pixel (64 colors) |
| Enduro™ | 3.2.0 | 280 x 280 | round | Memory-In-Pixel (64 colors) |
| epix™ | 1.2.0 | 205 x 148 | rectangle | Memory-In-Pixel (64 colors) |
| fēnix® 3 / tactix® Bravo / quatix® 3 | 1.4.0 | 218 x 218 | round | Memory-In-Pixel (16 colors) |
| fēnix® 3 HR | 1.4.0 | 218 x 218 | round | Memory-In-Pixel (16 colors) |
| fēnix® 5 / quatix® 5 | 3.1.0 | 240 x 240 | round | Memory-In-Pixel (64 colors) |
| fēnix® 5 Plus | 3.2.0 | 240 x 240 | round | Memory-In-Pixel (64 colors) |
| fēnix® 5S | 3.1.0 | 218 x 218 | round | Memory-In-Pixel (64 colors) |
| fēnix® 5S Plus | 3.2.0 | 240 x 240 | round | Memory-In-Pixel (64 colors) |
| fēnix® 5X / tactix® Charlie | 3.1.0 | 240 x 240 | round | Memory-In-Pixel (64 colors) |
| fēnix® 5X Plus | 3.2.0 | 240 x 240 | round | Memory-In-Pixel (64 colors) |
| fēnix® 6 / 6 Solar / 6 Dual Power | 3.2.0 | 260 x 260 | round | Memory-In-Pixel (64 colors) |
| fēnix® 6 Pro / 6 Sapphire / 6 Pro Solar / 6 Pro Dual Power / quatix® 6 | 3.2.0 | 260 x 260 | round | Memory-In-Pixel (64 colors) |
| fēnix® 6S / 6S Solar / 6S Dual Power | 3.2.0 | 240 x 240 | round | Memory-In-Pixel (64 colors) |
| fēnix® 6S Pro / 6S Sapphire / 6S Pro Solar / 6S Pro Dual Power | 3.2.0 | 240 x 240 | round | Memory-In-Pixel (64 colors) |
| fēnix® 6X Pro / 6X Sapphire / 6X Pro Solar / tactix® Delta Sapphire / Delta Solar / Delta Solar – Ballistics Edition / quatix® 6X / 6X Solar / 6X Dual Power | 3.2.0 | 280 x 280 | round | Memory-In-Pixel (64 colors) |
| fēnix® Chronos | 3.1.0 | 218 x 218 | round | Memory-In-Pixel (64 colors) |
| First Avenger | 3.2.0 | 260 x 260 | round | Memory-In-Pixel (64 colors) |
| Forerunner® 230 | 1.4.0 | 215 x 180 | semi-round | Memory-In-Pixel (16 colors) |
| Forerunner® 235 | 1.4.0 | 215 x 180 | semi-round | Memory-In-Pixel (16 colors) |
| Forerunner® 245 | 3.2.0 | 240 x 240 | round | Memory-In-Pixel (64 colors) |
| Forerunner® 245 Music | 3.2.0 | 240 x 240 | round | Memory-In-Pixel (64 colors) |
| Forerunner® 45 | 1.4.0 | 208 x 208 | round | Memory-In-Pixel (8 colors) |
| Forerunner® 55 | 3.2.0 | 208 x 208 | round | Memory-In-Pixel (8 colors) |
| Forerunner® 630 | 1.4.0 | 215 x 180 | semi-round | Memory-In-Pixel (16 colors) |
| Forerunner® 645 | 3.1.0 | 240 x 240 | round | Memory-In-Pixel (64 colors) |
| Forerunner® 645 Music | 3.2.0 | 240 x 240 | round | Memory-In-Pixel (64 colors) |
| Forerunner® 735xt | 2.4.0 | 215 x 180 | semi-round | Memory-In-Pixel (16 colors) |
| Forerunner® 745 | 3.2.0 | 240 x 240 | round | Memory-In-Pixel (64 colors) |
| Forerunner® 920XT | 1.4.0 | 205 x 148 | rectangle | Memory-In-Pixel (16 colors) |
| Forerunner® 935 | 3.1.0 | 240 x 240 | round | Memory-In-Pixel (64 colors) |
| Forerunner® 945 | 3.2.0 | 240 x 240 | round | Memory-In-Pixel (64 colors) |
| Forerunner® 945 LTE | 3.2.0 | 240 x 240 | round | Memory-In-Pixel (64 colors) |
| Garmin Swim™ 2 | 1.4.0 | 208 x 208 | round | Memory-In-Pixel (8 colors) |
| MARQ® Adventurer | 3.2.0 | 240 x 240 | round | Memory-In-Pixel (64 colors) |
| MARQ® Athlete | 3.2.0 | 240 x 240 | round | Memory-In-Pixel (64 colors) |
| MARQ® Aviator | 3.2.0 | 240 x 240 | round | Memory-In-Pixel (64 colors) |
| MARQ® Captain / MARQ® Captain: American Magic Edition | 3.2.0 | 240 x 240 | round | Memory-In-Pixel (64 colors) |
| MARQ® Commander | 3.2.0 | 240 x 240 | round | Memory-In-Pixel (64 colors) |
| MARQ® Driver | 3.2.0 | 240 x 240 | round | Memory-In-Pixel (64 colors) |
| MARQ® Expedition | 3.2.0 | 240 x 240 | round | Memory-In-Pixel (64 colors) |
| MARQ® Golfer | 3.2.0 | 240 x 240 | round | Memory-In-Pixel (64 colors) |
| Rey™ | 3.2.0 | 218 x 218 | round | Memory-In-Pixel (64 colors) |
| Venu® Sq | 3.2.0 | 240 x 240 | rectangle | Transflective Liquid-Crystal (High Color) |
| Venu® Sq. Music Edition | 3.2.0 | 240 x 240 | rectangle | Transflective Liquid-Crystal (High Color) |
| Venu™ | 3.2.0 | 390 x 390 | round | AMOLED |
| Venu™ 2 | 4.0.0 | 416 x 416 | round | AMOLED |
| Venu™ 2S | 4.0.0 | 360 x 360 | round | AMOLED |
| Venu™ Mercedes-Benz® Collection | 3.2.0 | 390 x 390 | round | AMOLED |
| vívoactive® | 1.4.0 | 205 x 148 | rectangle | Memory-In-Pixel (64 colors) |
| vívoactive® 3 | 3.1.0 | 240 x 240 | round | Memory-In-Pixel (64 colors) |
| vívoactive® 3 Mercedes-Benz® Collection | 3.0.0 | 240 x 240 | round | Memory-In-Pixel (64 colors) |
| vívoactive® 3 Music | 3.2.0 | 240 x 240 | round | Memory-In-Pixel (64 colors) |
| vívoactive® 3 Music LTE | 3.1.0 | 240 x 240 | round | Memory-In-Pixel (64 colors) |
| vívoactive® 4 | 3.2.0 | 260 x 260 | round | Memory-In-Pixel (64 colors) |
| vívoactive® 4S | 3.2.0 | 218 x 218 | round | Memory-In-Pixel (64 colors) |
| vívoactive® HR | 2.4.0 | 148 x 205 | rectangle | Memory-In-Pixel (64 colors) |
| Edge | API Level | Screen Resolution | Screen Shape | Screen Technology |
| Edge® 1000 / Explore | 2.4.0 | 240 x 400 | rectangle | Transflective Liquid-Crystal (High Color) |
| Edge® 1030 | 3.2.0 | 282 x 470 | rectangle | Transflective Liquid-Crystal (High Color) |
| Edge® 1030 / Bontrager | 3.2.0 | 282 x 470 | rectangle | Transflective Liquid-Crystal (High Color) |
| Edge® 1030 Plus | 3.2.0 | 282 x 470 | rectangle | Transflective Liquid-Crystal (High Color) |
| Edge® 130 | 3.1.0 | 230 x 303 | rectangle | Transflective Liquid-Crystal (Single Color) |
| Edge® 130 Plus | 3.2.0 | 230 x 303 | rectangle | Transflective Liquid-Crystal (Single Color) |
| Edge® 520 | 2.4.0 | 200 x 265 | rectangle | Transflective Liquid-Crystal (High Color) |
| Edge® 520 Plus | 3.1.0 | 200 x 265 | rectangle | Transflective Liquid-Crystal (High Color) |
| Edge® 530 | 3.2.0 | 246 x 322 | rectangle | Transflective Liquid-Crystal (High Color) |
| Edge® 820 / Explore | 3.1.0 | 200 x 265 | rectangle | Transflective Liquid-Crystal (High Color) |
| Edge® 830 | 3.2.0 | 246 x 322 | rectangle | Transflective Liquid-Crystal (High Color) |
| Edge® Explore | 3.1.0 | 240 x 400 | rectangle | Transflective Liquid-Crystal (High Color) |
| Outdoor Handhelds | API Level | Screen Resolution | Screen Shape | Screen Technology |
| GPSMAP® 66s / 66sr / 66st | 3.0.0 | 240 x 400 | rectangle | Transflective Liquid-Crystal (High Color) |
| GPSMAP® 86s / 86sc / 86i / 86sci | 3.0.0 | 240 x 400 | rectangle | Transflective Liquid-Crystal (High Color) |
| Montana® 7 Series | 3.1.0 | 480 x 800 | rectangle | Transflective Liquid-Crystal (High Color) |
| Oregon® 7 Series | 3.0.0 | 240 x 400 | rectangle | Transflective Liquid-Crystal (High Color) |
| Rino® 7 Series | 3.0.0 | 240 x 400 | rectangle | Transflective Liquid-Crystal (High Color) |
