| Part 1 | ASSIOMA Power Meter Pedals from Favero – Review Part 1 Installation, Calibration, Maintenance of BePro v2

Review Favero Assioma Duo Uno Power Meter PedalThis is part of the main review of the Favero Assioma (2017) (link here) power meter pedals covering unboxing, installation, calibration and other general setup and maintenance issues.

SETUP – Summary

It really is SUPER easy.

The original BePro looked a little daunting when it came to setup but was still pretty simple once you got used to it. The ASSIOMA is REALLY REALLY simple. It’s like changing a bike pedal. As that’s pretty much the basics of what you need to do.

WHAT TO WATCH OUT FOR

I’ll cover this in more detail but the noteworthy things you need to do are: download the app to register the pedals; ensure the main body of the pedals is kept away from your cranks with the spacers provided; double check that your cleats or bike shoes never touch the pedal’s circular black pod; and be mindful about calibration.



Unboxing, Box Contents, Weights & Dimensions

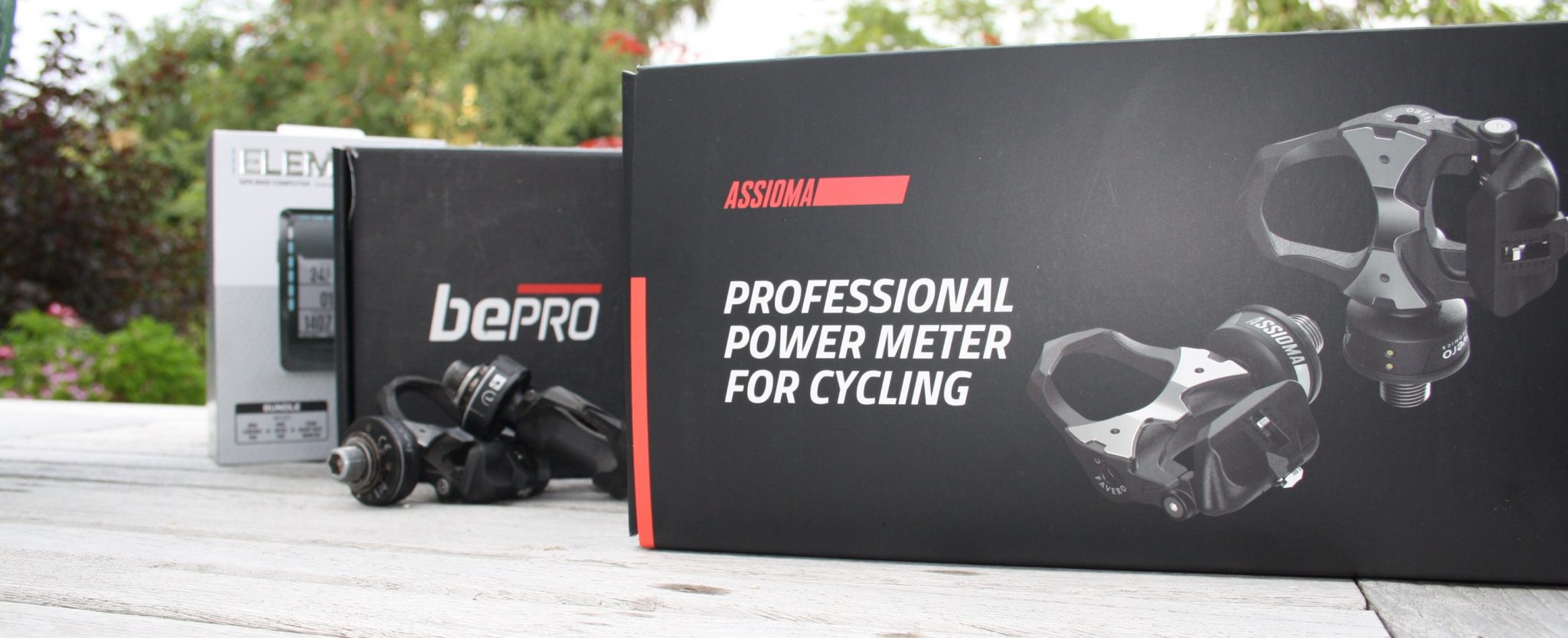

It’s a quality box. Even the box is just slightly improved on the previous model.

Review Favero Assioma Duo Uno Power Meter Pedal

Some packaging is saved by enabling the box and sleeve to cover both models of the ASSIOMA

Review Favero Assioma Duo Uno Power Meter Pedal

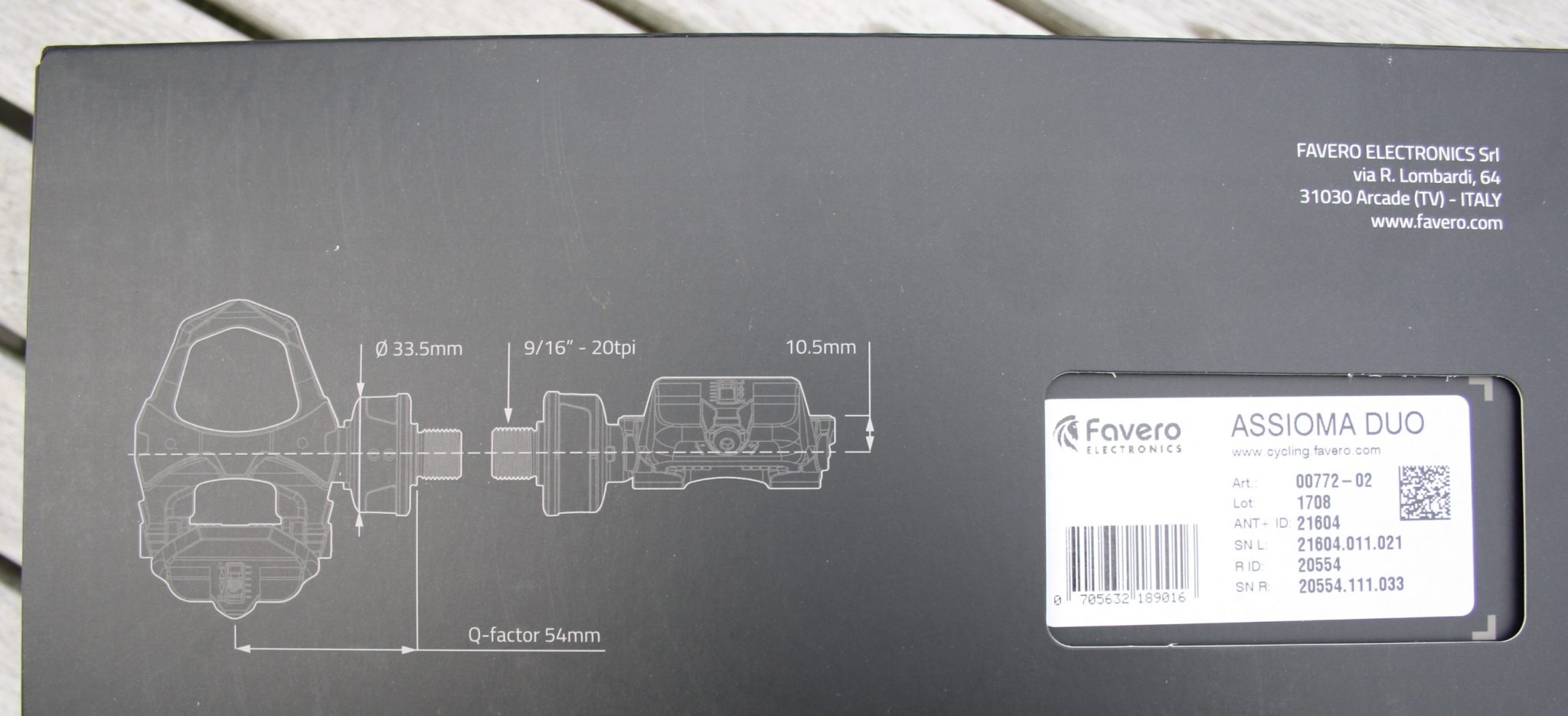

The box sleeve has some summary dimensions (we’ll come back to the Q-factor) as well as your ANT+ ID. Most of you won’t really need to know that even when it comes to pairing. but, if you have a room full of ANT+ power meters, then knowing the ID might help, I suppose.

Review Favero Assioma Duo Uno Power Meter Pedal

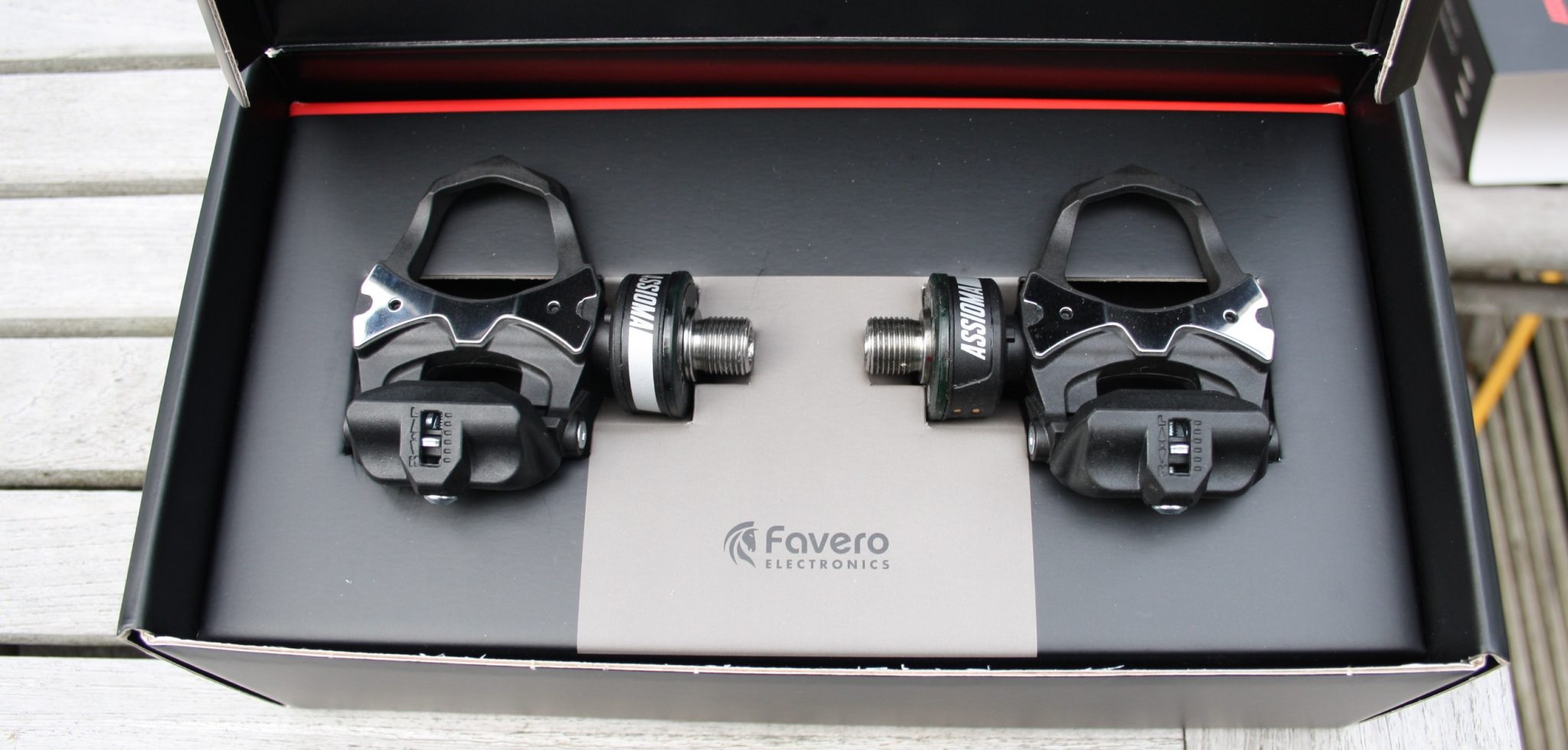

It’s re-assuring to open the box and just see the two pedals. Your first thoughts should be “yeah, I can put those on my bike…no problems“.

Review Favero Assioma Duo Uno Power Meter Pedal

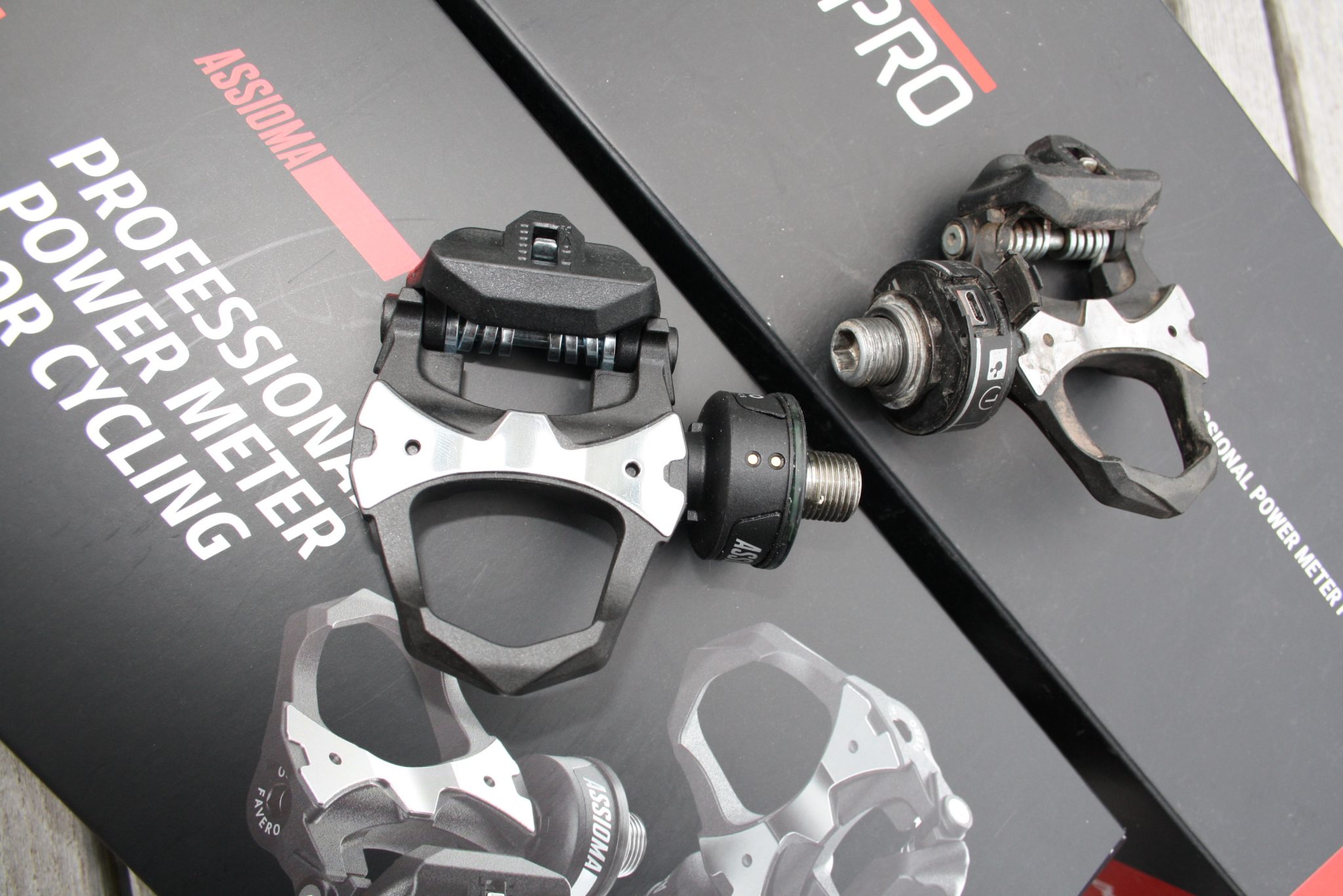

They look and feel well-made. Before I delved to the bottom compartment of the box I quickly compared the pedals to the previous model (BePro). The point of doing this here is just to shown that several small details have been improved. The only apparent differences are that the ‘circular black bit’ has changed. It looks slightly better made than the earlier BePro. Also, most obviously, is the different charging port – gone is the plastic covered micro-USB port and in comes two magnetic connecting points. The charging changes are a notable improvement and might help extend the longevity (although after 2 years my original BePros are going strong). I assume that the strain guage is inside the spindle and that the battery and transmission are I the circular black bit. There are bearings between the spindle and pedal – FYI I had a go at changing them on the earlier BePro and it was relatively easy – the ASSIOMA should be similarly easy as it looks the same although it should be a LONG time before the bearings need changing (years – I just fiddled with them as I was bored).

Review Favero Assioma Duo Uno Power Meter Pedal

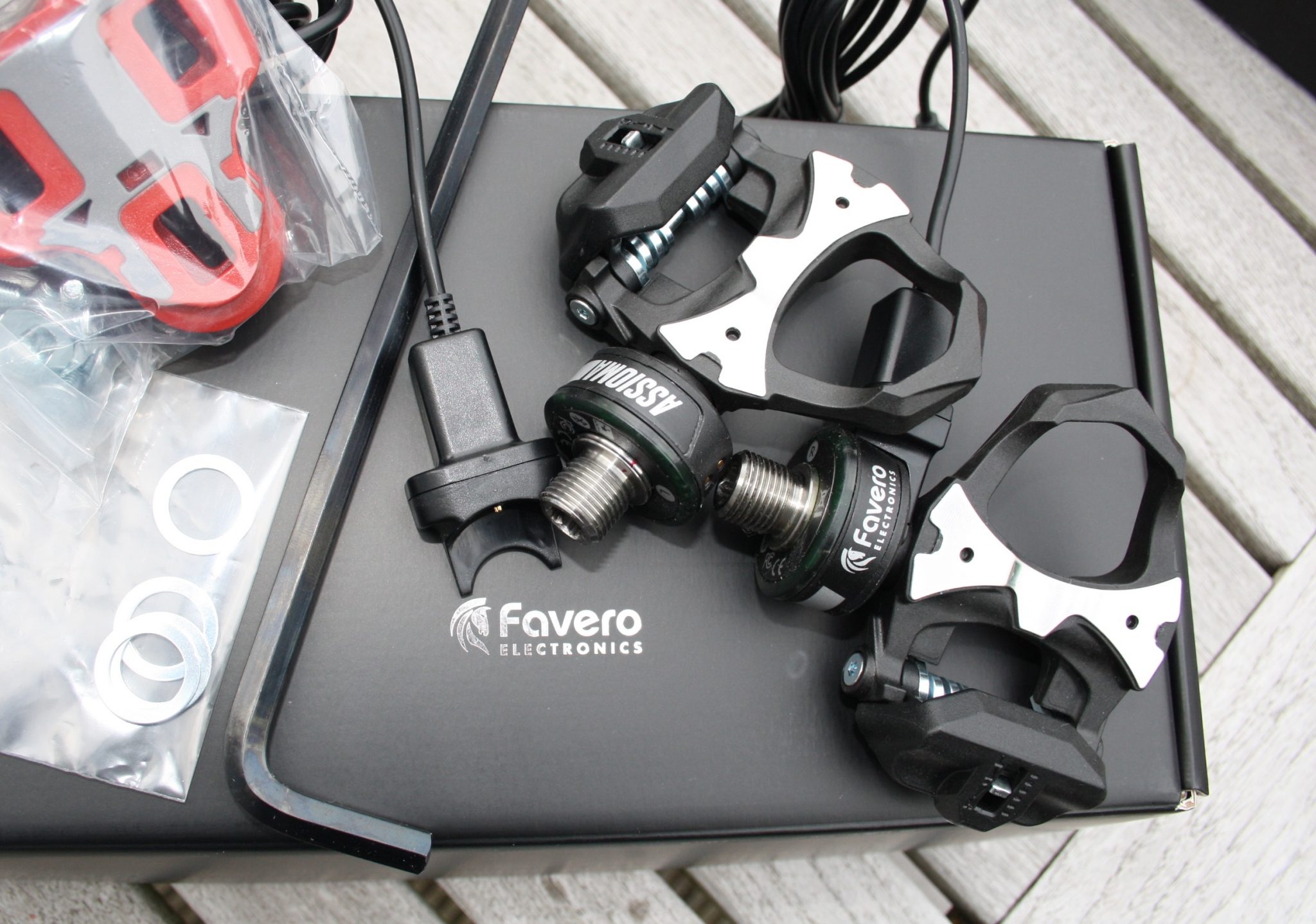

Ah. Looking into the bottom compartment of the box shows us all the other goodies. You get: some cleats (to all intents and purposes they are LOOK/KEO compatible); two proprietary USB charging cables (one attached magnetically, the other shown loose); a dual power adapter for your country (not shown); an allen/hex wrench/key; 4 washers/spacers; and lots of bits of paper that you will never, ever read.

Review Favero Assioma Duo Uno Power Meter Pedal

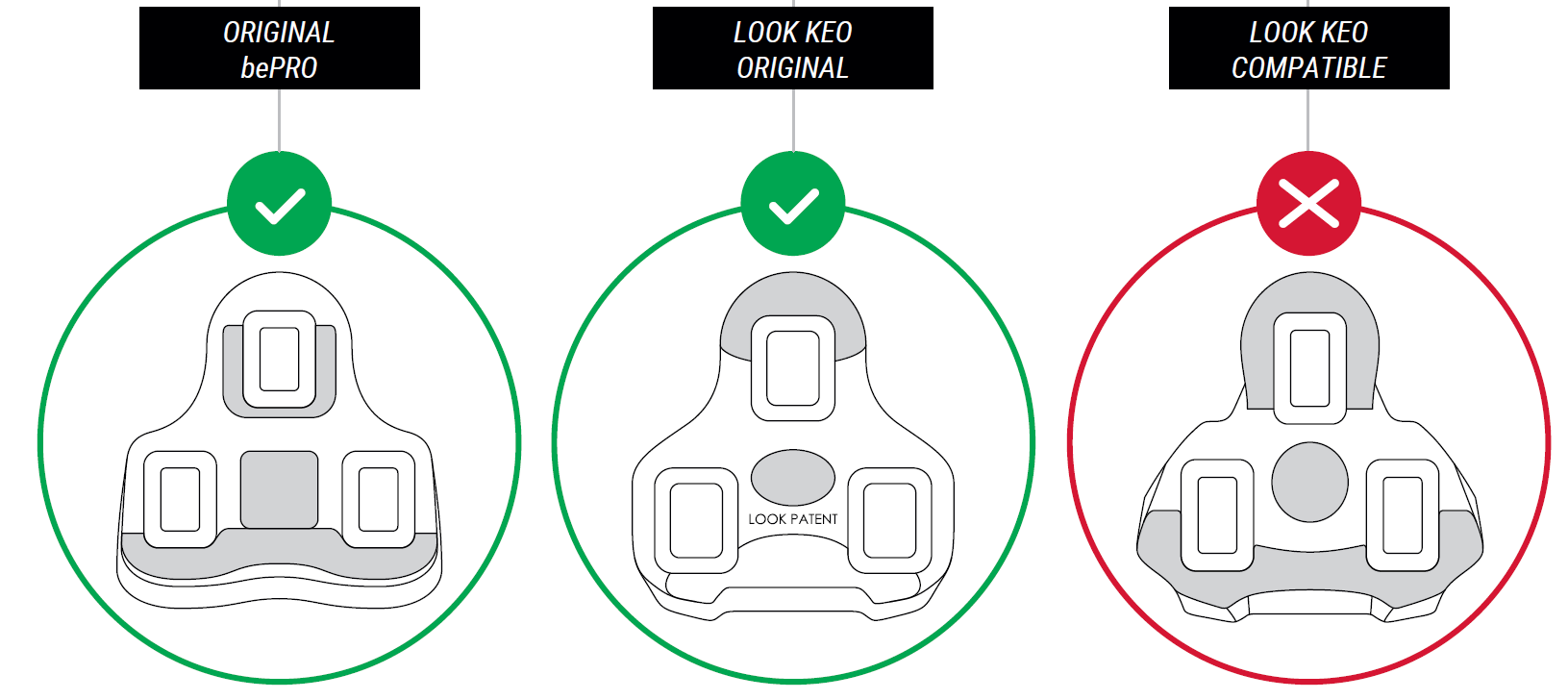

Not sure about the cleat? Have a look (pun) at this:

So, it’s nearly as simple as ‘just put the pedal on’ and do it up ‘fairly tightly’. You use the large hex wrench to tighten.

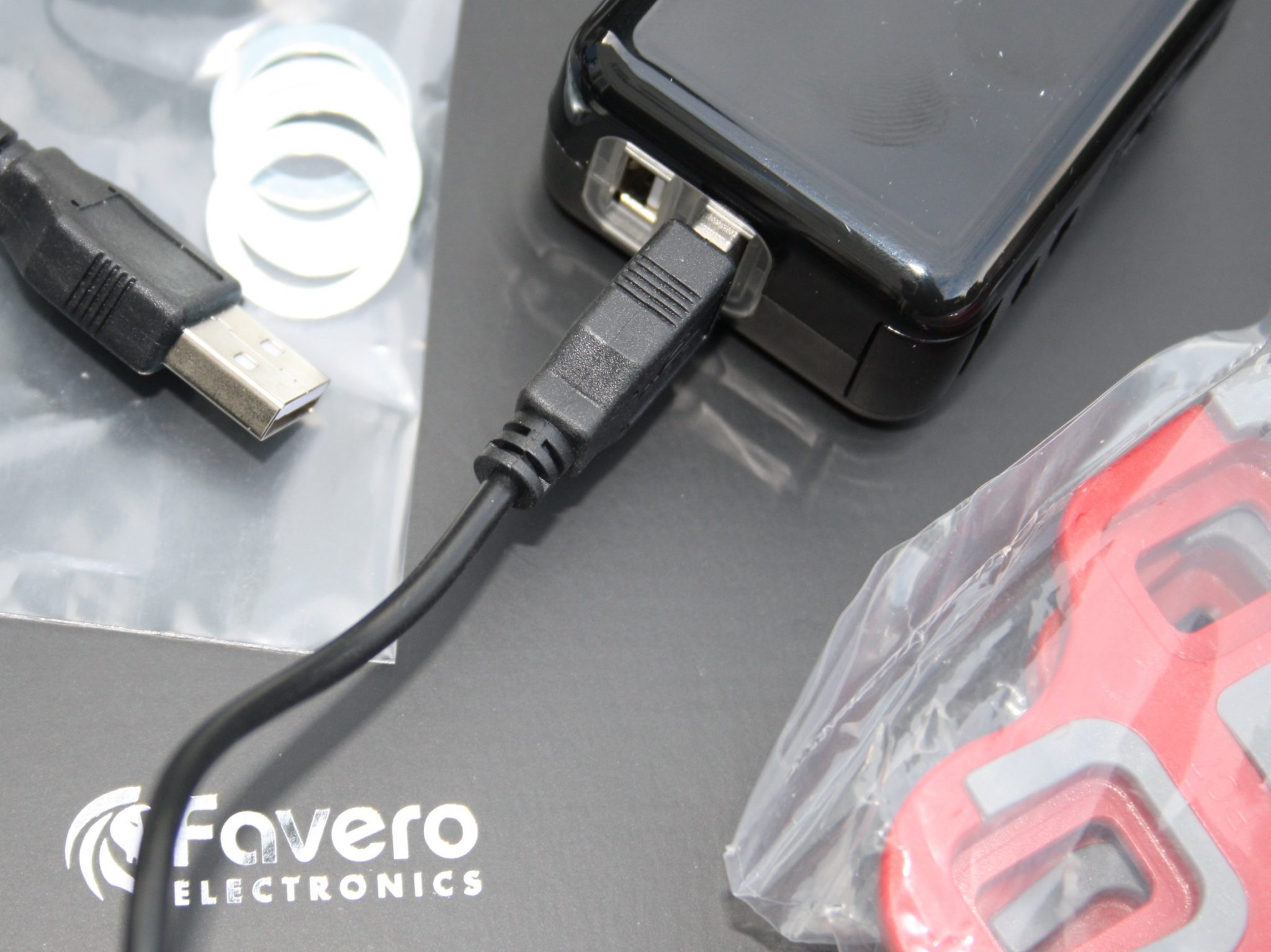

Oh, here’s the power adapter I forgot to show earlier. It lights up to show you have turned the wall socket on! and it’s handy that both USB cables can be attached with just the one wall socket. Equally you could charge from a computer I suppose.

Review Favero Assioma Duo Uno Power Meter Pedal

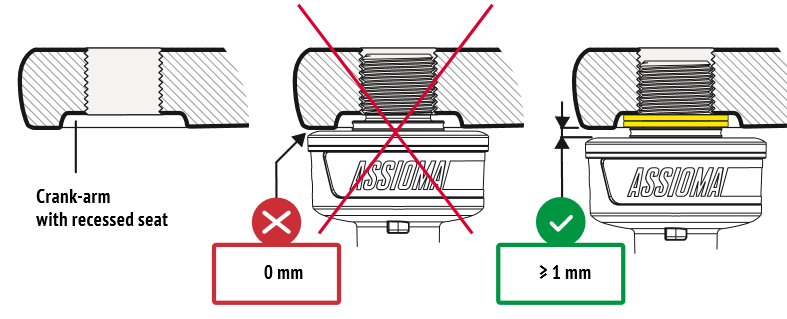

CAUTION: The circular black pod MUST NOT TOUCH YOUR CRANK – in that scenario, it might cause damage if you over-tighten and even if damage is not caused your power readings will likely be wrong.

Add a washer or two to keep the crank and pedal pod/housing apart. It doesn’t matter how many washers. More washers is for the more cautious power meter pedal installer.

TIP: Once you have put the pedal+washers onto the crank, take another washer and see if it can fit into the gap between the crank and pedal housing/pod. If it easily fits into the gap then you have one washer too many.

I found that I needed one less washer with the ASSIOMA than with the BePro. The reason for that is a subtle change to the threaded part of the pedal which seems to include a degree of engineered ‘spacing’ in the design Ie on the diagram above you can just about see the “built-in 1mm spacer“.

Review Favero Assioma Duo Uno Power Meter Pedal

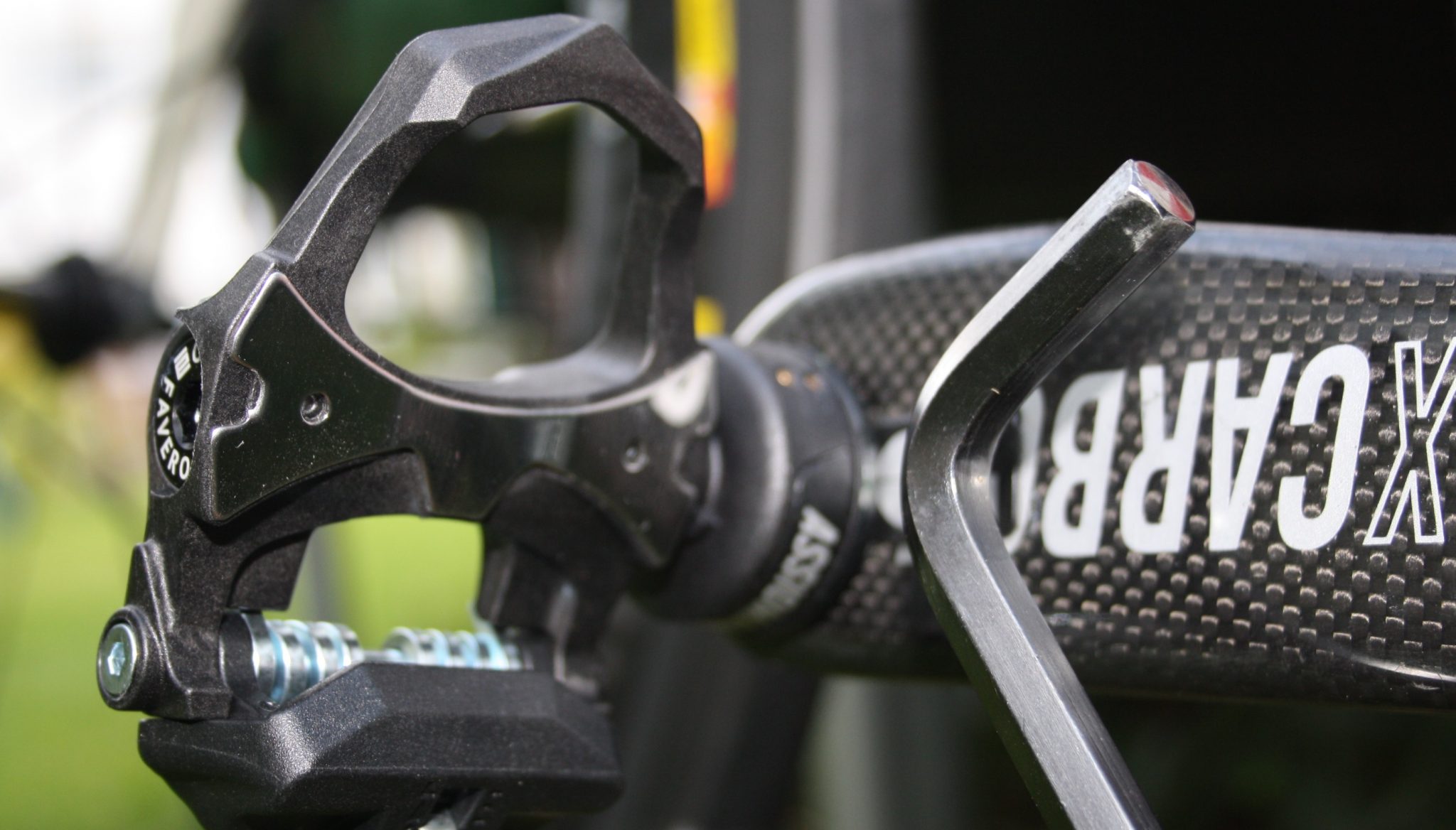

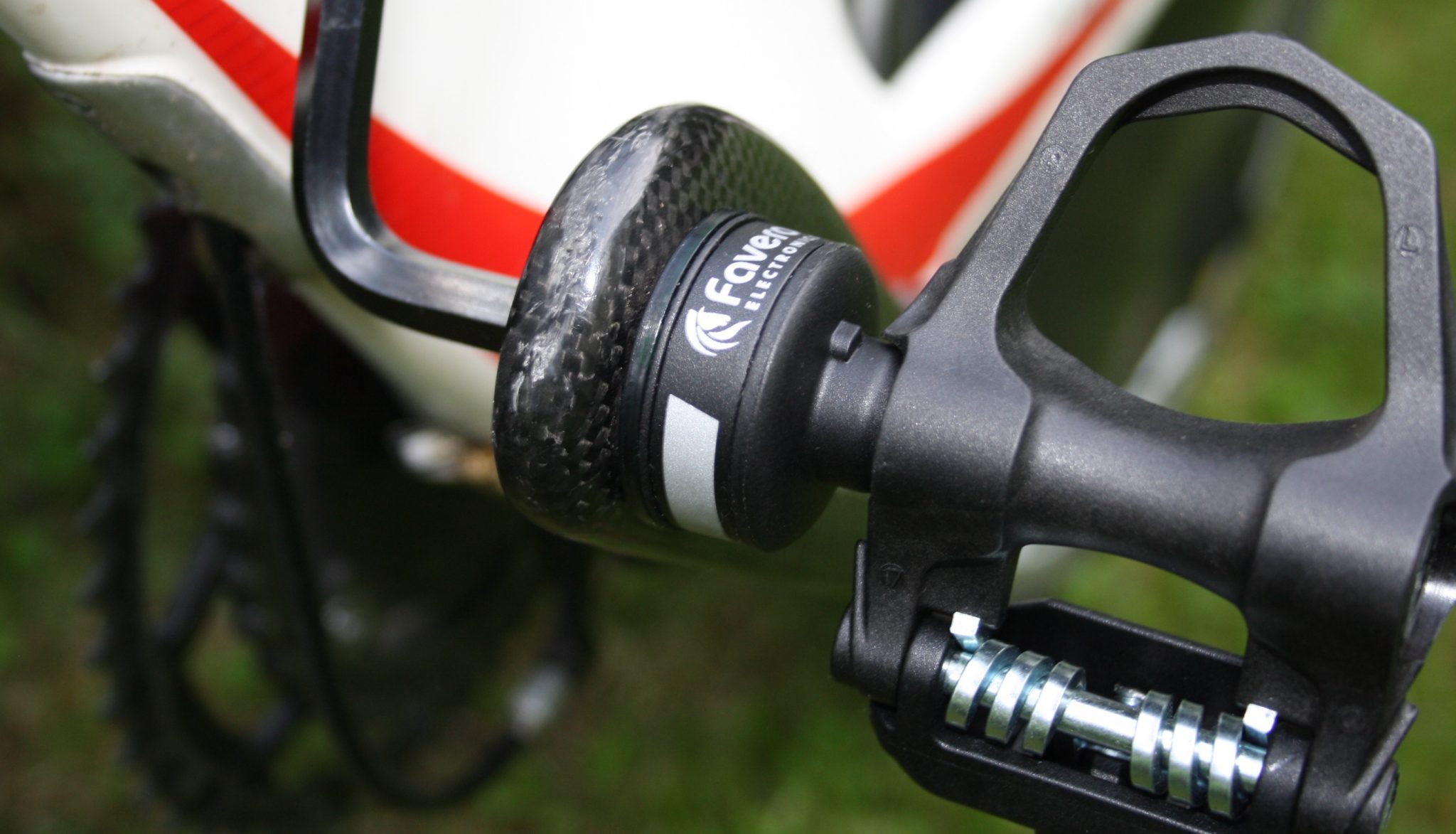

From another angle all you still have to do is put the pedal on. You can only say that so many ways (one way).

Review Favero Assioma Duo Uno Power Meter Pedal

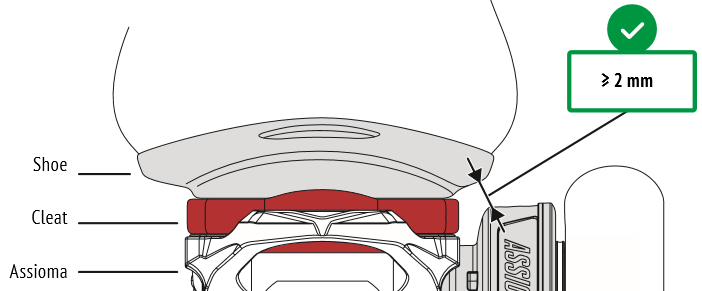

CAUTION: One final check is required to ensure that your bike shoes (or cleats) NEVER touch the circular black pod part of the pedals. If they touch or if there is not 2mm clearance then you should buy some ‘shims’ (spacers) OR file/shave some plastic from your bike shoes. You should then probably increase your seat height by the same distance as the shim width.

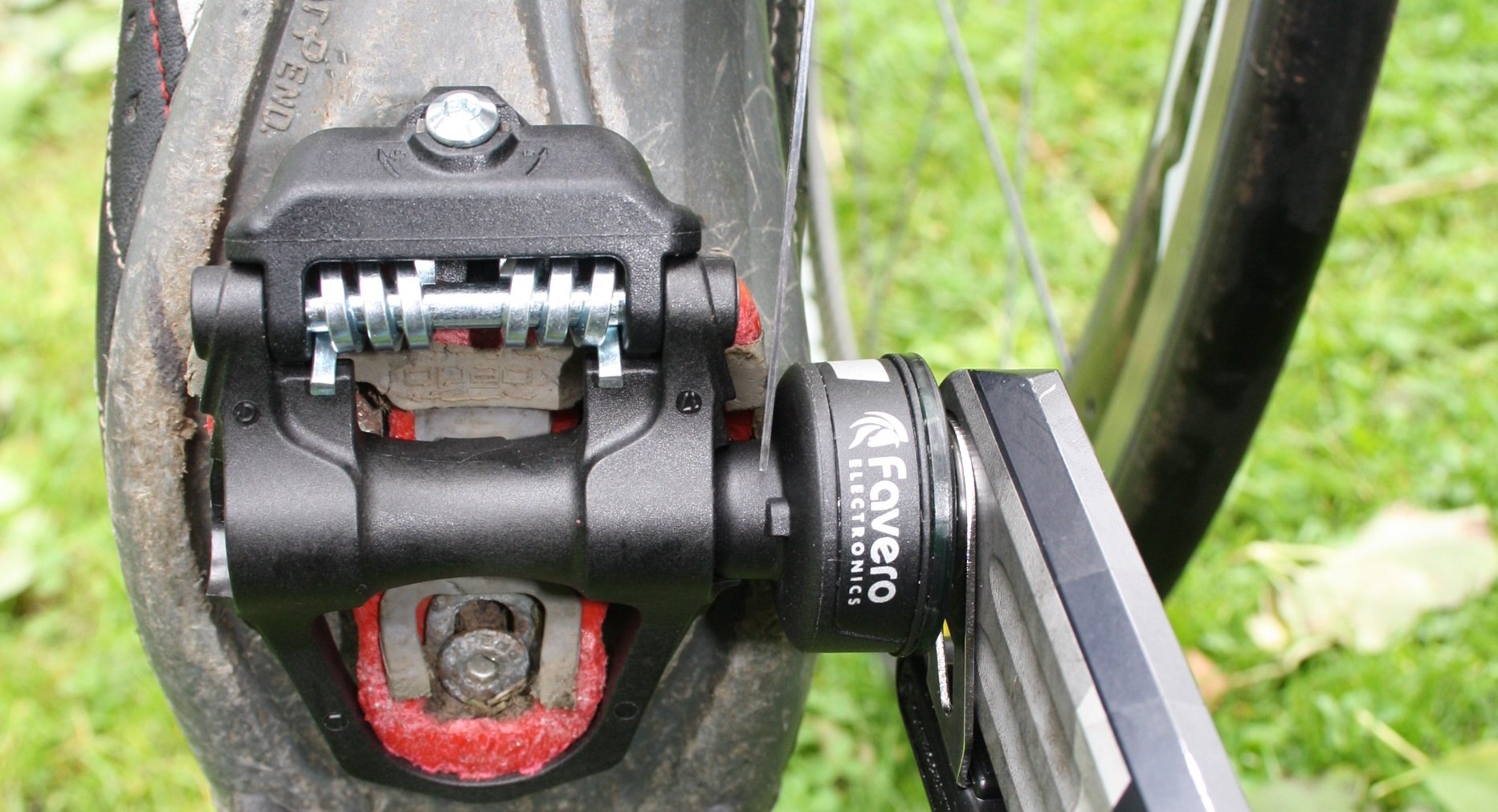

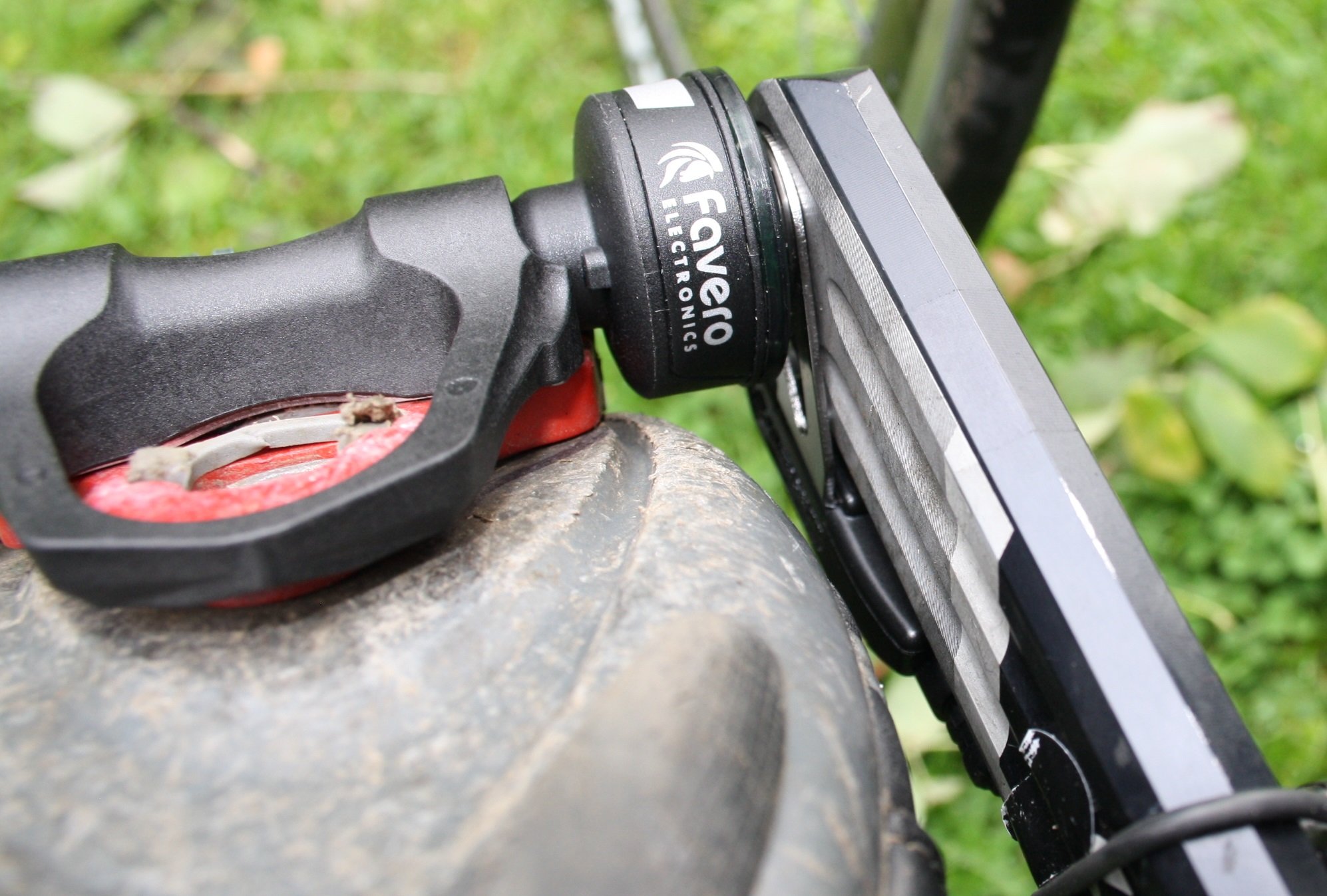

The diagram above is fine. But as you can see below the real-world situation even with a standard pair of specialized bike shoes is that clearance is TIGHT in my case. There is about 1mm clearance from the cleat to the pedal AND about 2-3mm clearance from the shoes to the pedal. Which is fine it will work perfectly.

This slideshow requires JavaScript.

Consider: What happens as time passes. You will walk on your cleats and they will fray and perhaps spread a little on the parts on which you have walked. The CLEATS may well then touch your pedal. It’s simple enough to file/cut the cleats but just be aware that this might happen down the line.

Installation done. Box ticked.

ACTIVATING

Activation is unusual but becoming more common with sports electronics.

Without activation the pedal wont work as a power meter. Activation also starts your warranty. It’s a nice way of doing it I suppose. They could have slightly improved this one-off process by using the QR code, which appears to be on the outside of the box. FWIW: WAHOO and WATTEAM make use of the QR code in their registration process.

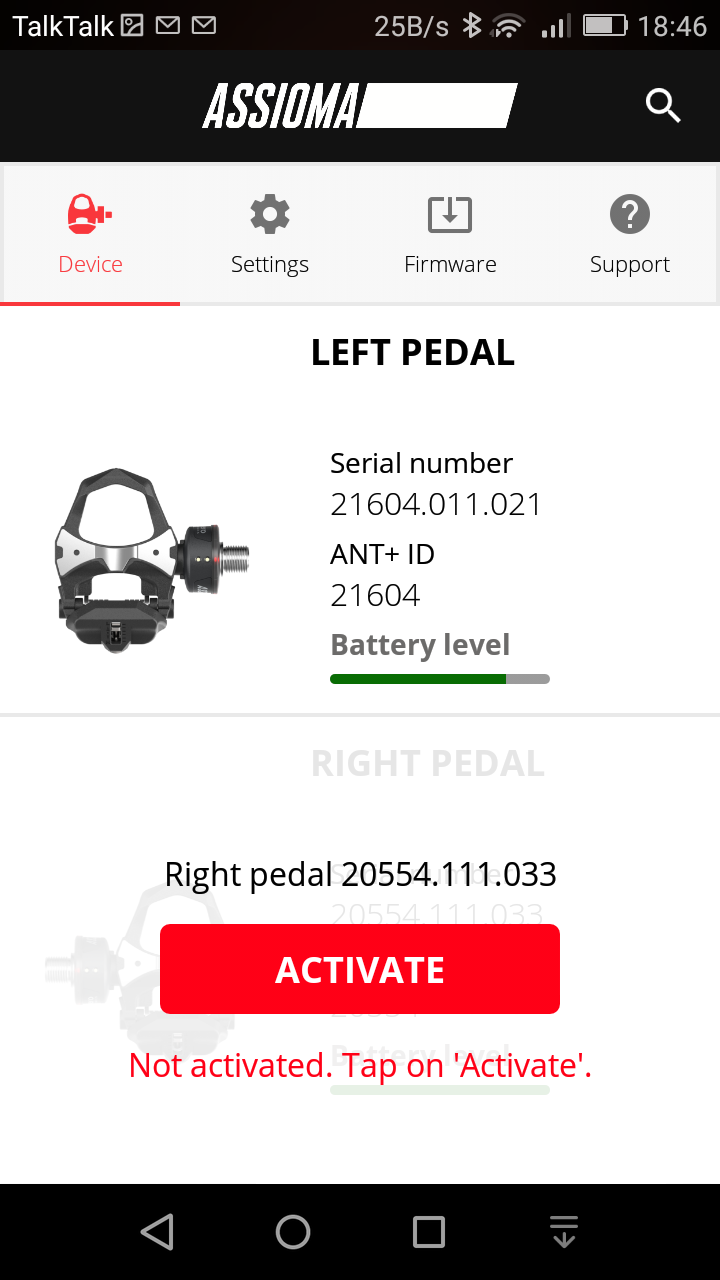

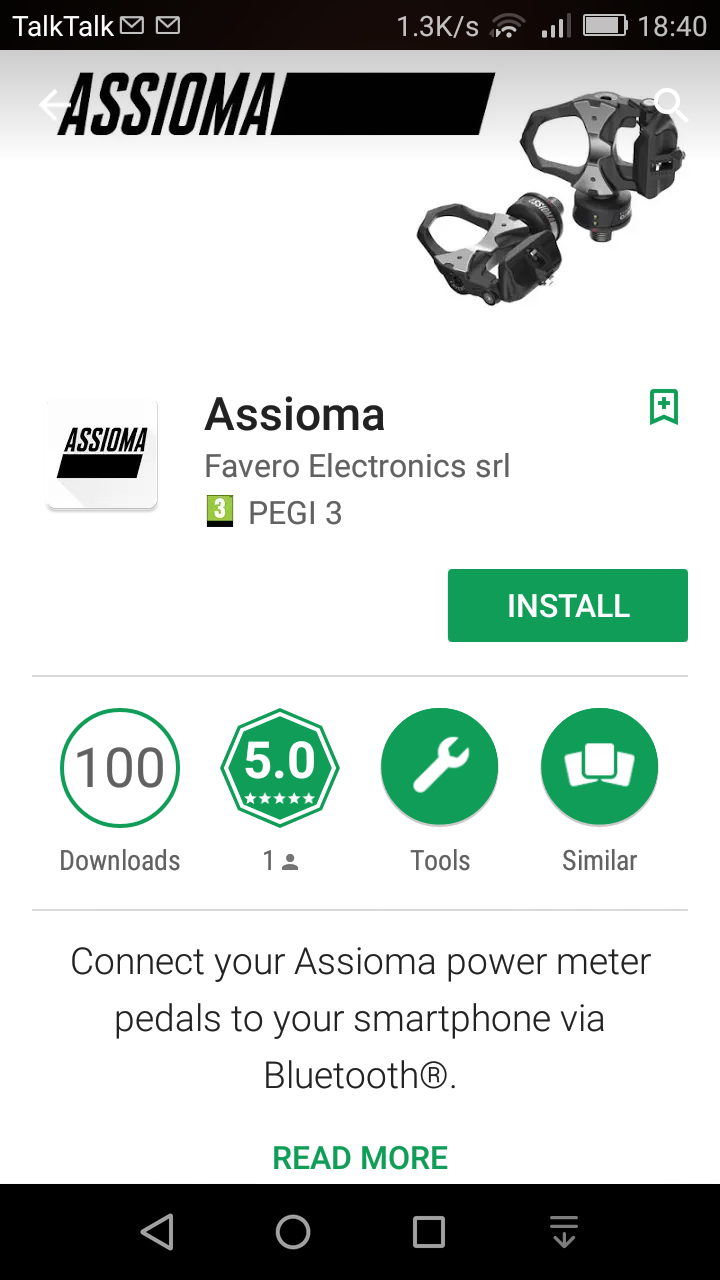

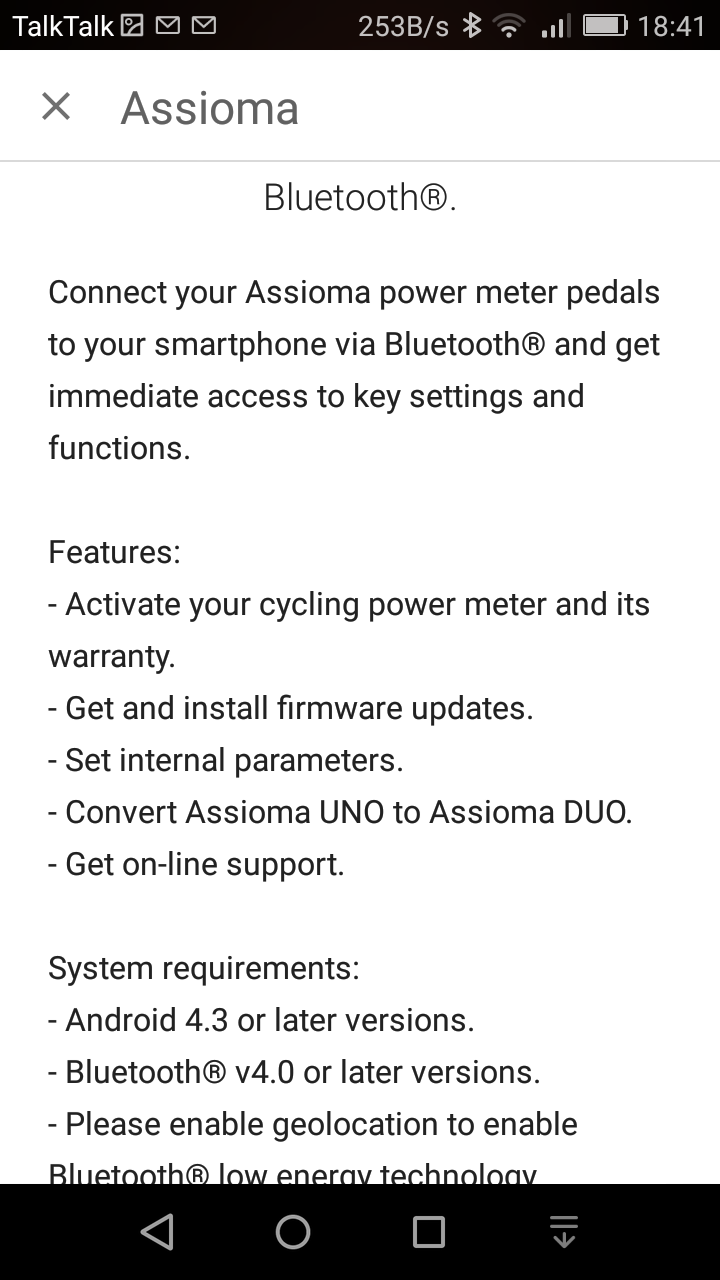

Here is a slideshow showing you what to do but it’s simply: install the app; pair each pedal; and then activate each pedal. Keep the app as you use it to update firmware and ‘advanced settings’.

This slideshow requires JavaScript.

PAIRING

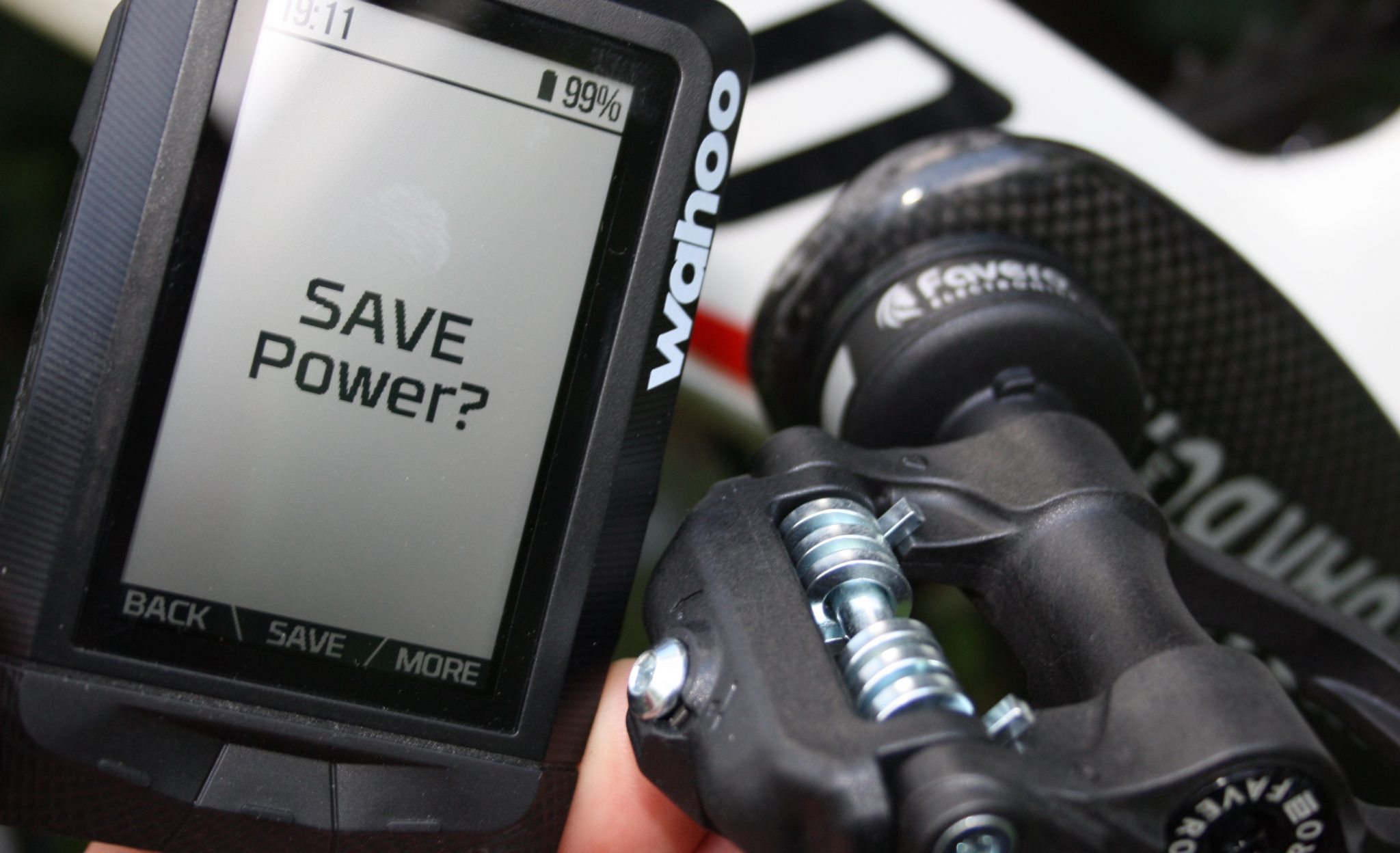

Review Favero Assioma Duo Uno Power Meter Pedal WAHOO ELEMNTWe now have a fully working power meter we just have to let devices communicate with it. Any number of ANT+ devices can simultaneously read the power information. ASSIOMA also supports Bluetooth Low Energy (BLE) 4 and  with BLE head units, it’s just one active pairing that’s possible.

To check: I will clarify these

  • One Bluetooth head unit and many ANT+ headunits should all be able to be attached simultaneously
  • Some Bluetooth head units and watches may only take one Bluetooth channel and double it. You might want to make double sure with your device as it would be pointeless buying the dual-sided ASSIOMA version (DUO)
  • Although only one active BLE connection is possible it should be possible to have also paired to other head units and to use that paring again on a future ride.

Pairing will vary depending on your cycling computer or sports watch. It should be pretty much the same process as adding a new heart rate monitor. The only complication will be if there is more than one device found…but then you look on the box to find the ANT+ ID and select that one on your watch. You know the routine, I’m sure.

With the WAHOO ELEMNT, shown above, and other devices like the Polar M460 you might find that when you add a power meter for the very first time, the device will automatically change some of the existing displays and include power metrics. Nice.

You can head off now for a ride but I’d RECOMMEND you calibrate the power meter first.

CALIBRATION & MAINTENANCE

The ASSIOMA is essentially self-calibrating. It even self-calibrates for temperature changes. It shouldn’t need any particular ‘servicing’ unless something is damaged

DAILY CHECKS

  • A Pre-ride zero offset calibration might make you feel better. With your pedals vertical and not in contact with anything ensure that the bike is standing vertically, perhaps by leaning against a wall use your head unit/watch to perform a zero offset calibration. It takes about 5 seconds.

CHANGING BIKES / CRANKS / CHAINRINGS

  • For a new installation the ASSIOMA performs an automatic initial calibration. Basically you just start pedalling and after about 10 revolutions power will appear. Once power readings appear on your unit the calibration is complete.
  • You will also do the zero offset calibration
  • Don’t forget to double-check and set the crank arm length in your cycling head unit to the same value.
  • THEN Don’t forget to check and set the crank arm length in the ASSIOMA app (this MUST be done last)

UNUSUAL SCENARIOS

  • Some bike computers/watches do not allow crank length to be set. You can make this setting on the pedals through the app.
  • For the EARLIER BePro model, I used to recommend that users performed a Bi-annually check of the power balance calibration of your pedals. aka static torque verification.(Details here in section 2.1.12 for the earlier BePro but the principle applies). Favero assure me that this is NOT required for the ASSIOMA.
  • Oval/elliptical chainrings appear to increase the power reading by 2-4% depending on the ovality. POWER CORRECTION settings on the app can adjust for that if you like.
  • Indoor training on rollers might produce different power levels than on the road (Source: Favero) and, again, the app can be used to adjust for this via the POWER CORRECTION.
Review Favero Assioma Duo Uno Power Meter Pedal

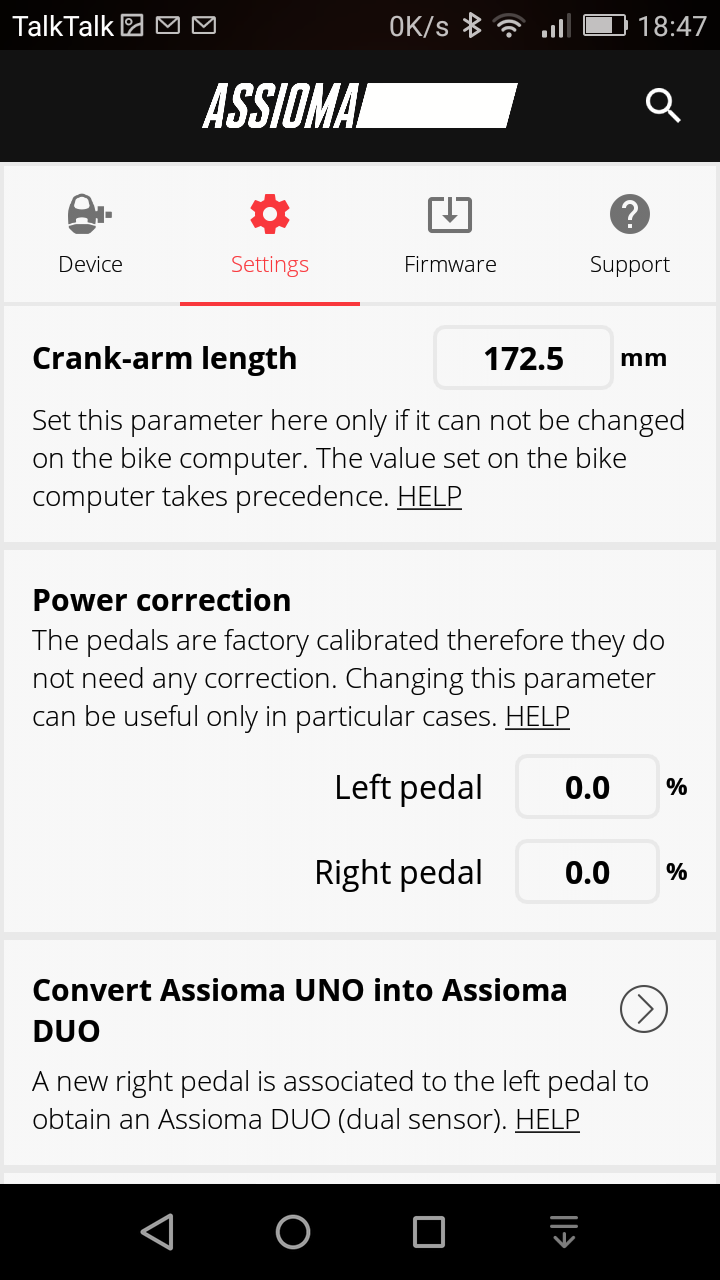

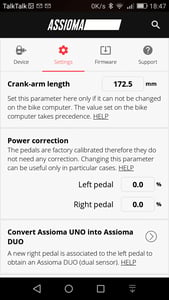

The app also has these configuration parameters. Covered later

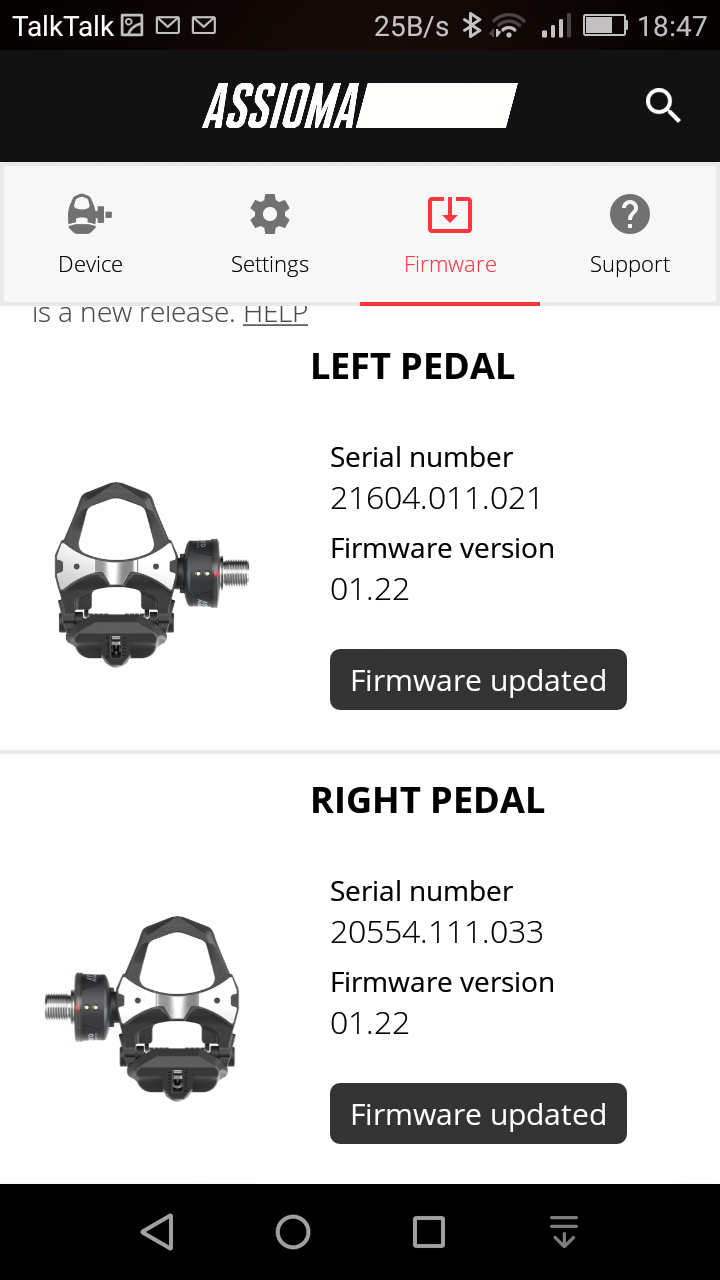

  • Periodically you should also update the firmware. For the earlier BePro model there were few firmware updates. Perhaps a good sign of a well-engineered product? Again the firmware is updatable through the app. This is a much easier method than before where the firmware had to be carried out via a computer and some downloaded software.
Review Favero Assioma Duo Uno Power Meter Pedal

SORTED – update the firmware, if needed

Go Back to the main review for additional information including the accuracy results of the Favero Assioma

RESOURCES

Manual: https://goo.gl/HTQKSE

Data Sheet: https://goo.gl/AdTFjB
