| General | |
|---|---|
| Manufacturer | Magene |
| Type | Compact GPS cycling computer, 2.4-inch touchscreen and three buttons |
| Series | C506 |
| Released | 2024 |
| Price | GBP 109 / USD 119 at launch; USD 99 on magene.com |
| Variants | C506 SE, buttons only with route navigation |
| Review | Magene C506 review |
Specifications and features as at firmware 1.9, October 2026.
Jump to: Expert opinion | Specifications | Battery life | Features | Ride profiles | Quick answers | Further reading
Expert opinion
C506 is a first GPS computer that covers far more than its price suggests: maps with turn-by-turn directions, power meter and Di2 support, smart trainer control and radar display, in a 76g unit. ClimbPro and Strava Segments belong to the C606 family and the C706.
In my C506 review it recorded accurately over 500km, its buttons backed up a touchscreen that missed taps with cold fingers, and the OnelapFit app worked but felt unpolished. Firmware since then has added rerouting choices, colour-coded routes, laps by location and DJI and Insta360 camera control.

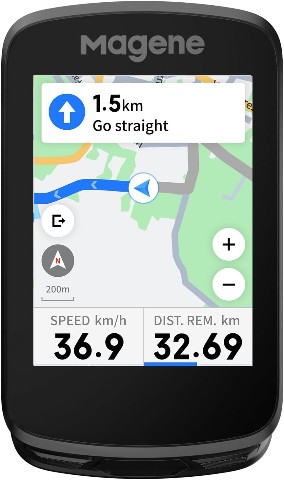

Magene C506
Compact touchscreen computer with maps, power meter support and smart trainer control.
Specifications
| Display | |
|---|---|
| Type | Full-laminated colour touchscreen, Asahi glass with anti-fingerprint hydrophobic coating, ambient light sensor |
| Size | 2.4 inch |
| Controls | Touchscreen and three buttons |
| Physical | |
| Dimensions | 78 x 48 x 17.5mm |
| Weight | 76g |
| Water rating | IPX7 |
| Operating temperature | -10°C to 50°C |
| Sensors and positioning | |
| GNSS | Multi-GNSS: BeiDou, GPS, GLONASS, Galileo, QZSS (Airoha chipset) |
| Assisted positioning | AGNSS over Wi-Fi; Magene claims a fix in as little as 5 seconds |
| © the5krunner. Link required. | |
| Connectivity and storage | |
| Connectivity | Bluetooth 5.0, ANT+, Wi-Fi |
| Supported devices | Speed, cadence and combined sensors, heart rate monitors, power meters, smart trainers, radar tail lights, smart tail and front lights, DJI and Insta360 cameras, Shimano Di2, SRAM eTap |
| Storage | 4GB |
| Data fields | 108 in 14 categories |
| Bike profiles | 5, plus 3 electronic shifting profiles |
| Charging | USB-C, 3 hours |
| Apps | OnelapFit; Strava, TrainingPeaks and Komoot |
Battery life
| Mode | Battery life |
|---|---|
| Daily mode | 17 hours |
| Long battery mode | Up to 24 hours |
| © the5krunner. Link required. | |
Features
Navigation
- Free global maps downloaded to the computer
- Turn-by-turn map navigation with off-course alerts
- Rerouting by Destination Direction or Nearest Rejoin Point
- Routes built in OnelapFit or imported as GPX files, up to 1,000km
- Colour-coded routes, with remaining distance and ride progress on screen
- North-up or heading-up maps
Training
- Structured workouts from OnelapFit or TrainingPeaks, indoors or outdoors
- Smart trainer control by target power, resistance or gradient
- Replays a past outdoor ride on a smart trainer
- Switches power source between trainer and power meter
- Laps by location, time or distance
- Virtual power
Smart riding assistant
- Controls Magene L508 radar, L308 tail and AT front lights
- Conditional commands, for example turning the front light on above 10km/h
- Shimano Di2 buttons control the computer and Magene devices
- SRAM gear ratio calculation
- Controls DJI and Insta360 action cameras from the computer or Di2 buttons
- Phone notifications, and time or distance reminders
Ownership
- Resume Later, and recovery of a ride stopped by an unexpected shutdown
- Auto start, auto pause, screen lock, dark mode
- Sensors enabled or disabled without unpairing
- Menus in 13 languages
Ride profiles
C506 has 12 riding modes, two default and ten customisable, each with up to ten data pages, and stores five bike profiles.
Magene C506
Compact touchscreen computer with maps, power meter support and smart trainer control.
Quick answers
When was the Magene C506 released?
Magene released the C506 in 2024. The launch price was GBP 109 or USD 119, and magene.com now lists it at USD 99.
What screen size is the C506?
C506 has a 2.4 inch full-laminated colour touchscreen with an ambient light sensor, plus three buttons.
Does the C506 have maps?
Yes, C506 has free global maps downloaded to the computer, with turn-by-turn navigation and off-course alerts. It reroutes by Destination Direction or Nearest Rejoin Point.
What is the C506 battery life?
Magene quotes 17 hours in daily mode and up to 24 hours in long battery mode. It charges over USB-C in 3 hours.
How much does the C506 weigh?
C506 weighs 76g, measures 78 x 48 x 17.5mm and is rated IPX7.
Does the C506 have ClimbPro?
No, ClimbPro and Strava Segments belong to the C606 family and the C706, not the C506.
