| Manufacturer | Garmin |
|---|---|
| Type | Button-operated GPS bike computer |
| Series | Edge |
| Released | 11 April 2023 (announced 11 April 2023) |
| Price at launch | Edge 540: GBP 349.99 / USD 349.99 / EUR 399.99. Edge 540 Solar: GBP 449.99 / USD 449.99 / EUR 499.99. Device only; sensor bundles also available |
| Predecessor | Edge 530 |
| Successor | Edge 550 |
| Sizes | 2.6″ (66mm) diagonal screen; unit 57.8 x 85.1 x 19.6mm |
| Variants | Edge 540 (010-02694-01); Edge 540 Solar (010-02694-21) with Power Glass solar charging lens |
Specifications as at launch. Features and activity profiles reflect the latest Garmin software.
Expert opinion | What’s new | Specifications | Battery life | Features | Comparisons | Quick answers | Further reading
Expert opinion
Garmin’s first button-only Edge with multi-band GNSS, the Edge 540 brings ClimbPro to any hill without a loaded route, guiding riders up unfamiliar climbs. Satellite and elevation accuracy held up across the Surrey Hills, Cornwall, and urban centres over 1,000 miles of testing.
Race-day planning, from adaptive coaching to Power Guide, forms a more complete package than rivals offer, and Garmin’s map intelligence reroutes riders who stray. Firmware has since added GroupRide competitions, hazard reports, and Garmin Share. The Solar edition adds modest battery gains.

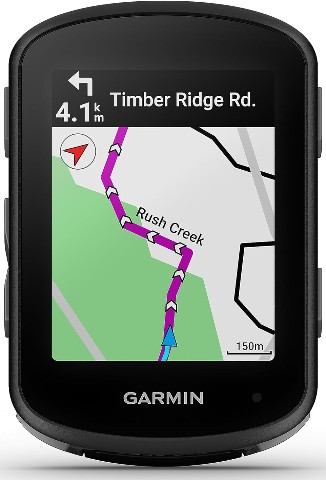

Garmin Edge 540
Button-controlled bike computer with maps, ClimbPro and accurate multi-band GPS.
What’s new versus the Edge 530
Hardware
- Multi-band GNSS, where the Edge 530 had single-band GPS, GLONASS and Galileo
- Solar charging option through the Power Glass lens on the Edge 540 Solar
- Battery life up to 26 hours (32 hours on the Solar), up from 20 hours on the Edge 530
- Battery saver mode up to 42 hours (60 hours on the Solar)
Software
- Cycling ability and course demands analysis
- Targeted adaptive coaching, with daily workouts that adapt to load, recovery and events
- Real-time stamina
- Power Guide
- ClimbPro ascent planner without a course, with climbs searchable on the Edge and in Garmin Connect
- On-device Connect IQ Store
Specifications
Both editions are shown side by side. They share the display, case, sensors, and storage, and differ in lens, weight, and battery life.
| Specification | Edge 540 | Edge 540 Solar |
|---|---|---|
| Display | ||
| Display type | Transflective TFT, colour | |
| Display size | 66mm (2.6″) diagonal | |
| Resolution | 246 x 322 pixels | |
| Lens | Standard lens | Power Glass solar charging lens |
| Touchscreen | No, button-operated | |
| Physical | ||
| Dimensions | 57.8 x 85.1 x 19.6mm | |
| Weight | 80.4g | 84.9g |
| Water rating | IPX7 | |
| Operating temperature | -20°C to 60°C | |
| Charging temperature | 0°C to 45°C | |
| Battery | Rechargeable lithium-ion, battery saver mode | |
| In-ride power | Yes, with Power Mount and Garmin Charge battery pack | |
| © the5krunner. Link required. | ||
| Sensors and positioning | ||
| GNSS | GPS, GLONASS, Galileo, multi-band | |
| Other sensors | Barometric altimeter, magnetometer, gyroscope, accelerometer, ambient light sensor | |
| Connectivity and storage | ||
| Connectivity | Bluetooth, ANT+, Wi-Fi | |
| Smartphone compatibility | iPhone, Android | |
| Storage | 16GB | |
| Maps | Basemap, TopoActive cycling maps, integrated Trailforks trail data | |
| Wi-Fi map manager | Yes, added by software update | |
| Waypoints and courses | 200 waypoints, 100 courses | |
| History | Up to 200 hours | |
| Connect IQ | Yes, with on-device Connect IQ Store | |
| © the5krunner. Link required. | ||
Battery life
Figures are Garmin’s launch claims. Solar figures assume riding in 75,000 lux conditions.
| Mode | Edge 540 | Edge 540 Solar |
|---|---|---|
| Demanding use | Up to 26 hours | Up to 32 hours |
| Battery saver mode | Up to 42 hours | Up to 60 hours |
| Solar gain | Not applicable | Up to 25 minutes per hour of daytime riding |
| © the5krunner. Link required. | ||
Features
Cycling
- ClimbPro ascent planner for courses and free riding
- Power Guide, with wind and stamina adjustments added by software update
- TopoActive cycling maps, Trendline popularity routing and popularity heatmap
- Integrated Trailforks trail data and MTB Dynamics
- Courses, with reverse course added by software update
- Surface type alerts, added by software update
- FTP and Cycling Dynamics with a compatible power meter
- ANT+ electronic shifting support
- Compatibility with Varia radar, Varia Radar Camera, Varia lights and Varia headlight camera
- Edge remote and Varia remote support
Plan
- Daily workout suggestions, event specific
- Downloadable training plans
- Advanced workouts and interval training with primary and secondary targets
- Cycling ability and course demands analysis
Prepare
- Training Status, Training Load and Training Load Focus for cycling
- Recovery advisor
- VO2 max
- Calories burned and intensity minutes
Perform
- Real-time stamina
- Training Effect
- Virtual Partner and race an activity
- Segments
- Customisable data screens with auto scroll
- Lap ascent and descent data fields, added by software update
- Auto Pause and Auto Lap
- Smart trainer control
Connect
- Smart notifications, with text replies on Android
- Weather forecasts and weather alerts
- Smartphone music controls and VIRB camera remote
- Realtime settings sync with Garmin Connect
- LiveTrack, GroupTrack and group messaging
- Incident detection, including off-road, and assistance
- GroupRide competitions and awards, added by software update
- GroupRide incident detection, added by software update
- Community generated hazard reporting, added by software update
- Garmin Share, added by software update
- Software updates over Bluetooth, added by software update
- Find My Edge and bike alarm
- inReach compatibility
Garmin Edge 540
Button-controlled bike computer with maps, ClimbPro and accurate multi-band GPS.
Comparisons and upgrade guides
- Garmin Edge upgrade guide, covering the move across the Edge range
- Garmin Edge 540 and 840 launch opinion, including the choice between them and the upgrade case from the Edge 530
- Garmin Edge 850 and 550 first look, the successor and its battery life
Quick answers
When was the Garmin Edge 540 released?
Garmin announced and released the Edge 540 on 11 April 2023. The launch price was GBP 349.99 or USD 349.99, and GBP 449.99 or USD 449.99 for the Edge 540 Solar.
Does the Edge 540 have a touchscreen?
No, Edge 540 is button-operated. It has a 2.6 inch colour display at 246 x 322 pixels.
Does the Edge 540 have maps?
Yes, Edge 540 has a basemap and TopoActive cycling maps with integrated Trailforks trail data. Its ClimbPro ascent planner works on courses and when free riding.
Does the Edge 540 have solar charging?
Only the Edge 540 Solar has a Power Glass solar charging lens, which adds up to 25 minutes per hour of daytime riding.
How long does the Edge 540 battery last?
Garmin rates Edge 540 for up to 26 hours in demanding use and 42 hours in battery saver mode. Edge 540 Solar reaches 32 hours and 60 hours in 75,000 lux conditions.
How much does the Edge 540 weigh?
Edge 540 weighs 80.4g and Edge 540 Solar 84.9g. Both measure 57.8 x 85.1 x 19.6mm and have an IPX7 water rating.
Further reading
- Garmin Edge 540 review
- Feature update for the Edge 540, 840 and 1040
- Edge 1060 features coming to older Edges, including the Edge 540 in beta
- Garmin Edge hub
- Garmin watch specifications
- Release Radar: upcoming Garmin devices
Related watches
Predecessor: Garmin Edge 530, the 2019 button-operated Edge with single-band GNSS and up to 20 hours of battery.
Successor: Garmin Edge 550, the 2025 replacement launched alongside the Edge 850.
Also consider: Wahoo ELEMNT BOLT 3, a compact button-operated computer announced in April 2025 at a similar price.
